First all parameter values are copied to the LCP control
panel, which can then be moved to another frequency
converter. Here all parameter values can be copied
from the LCP control unit to the frequency converter.

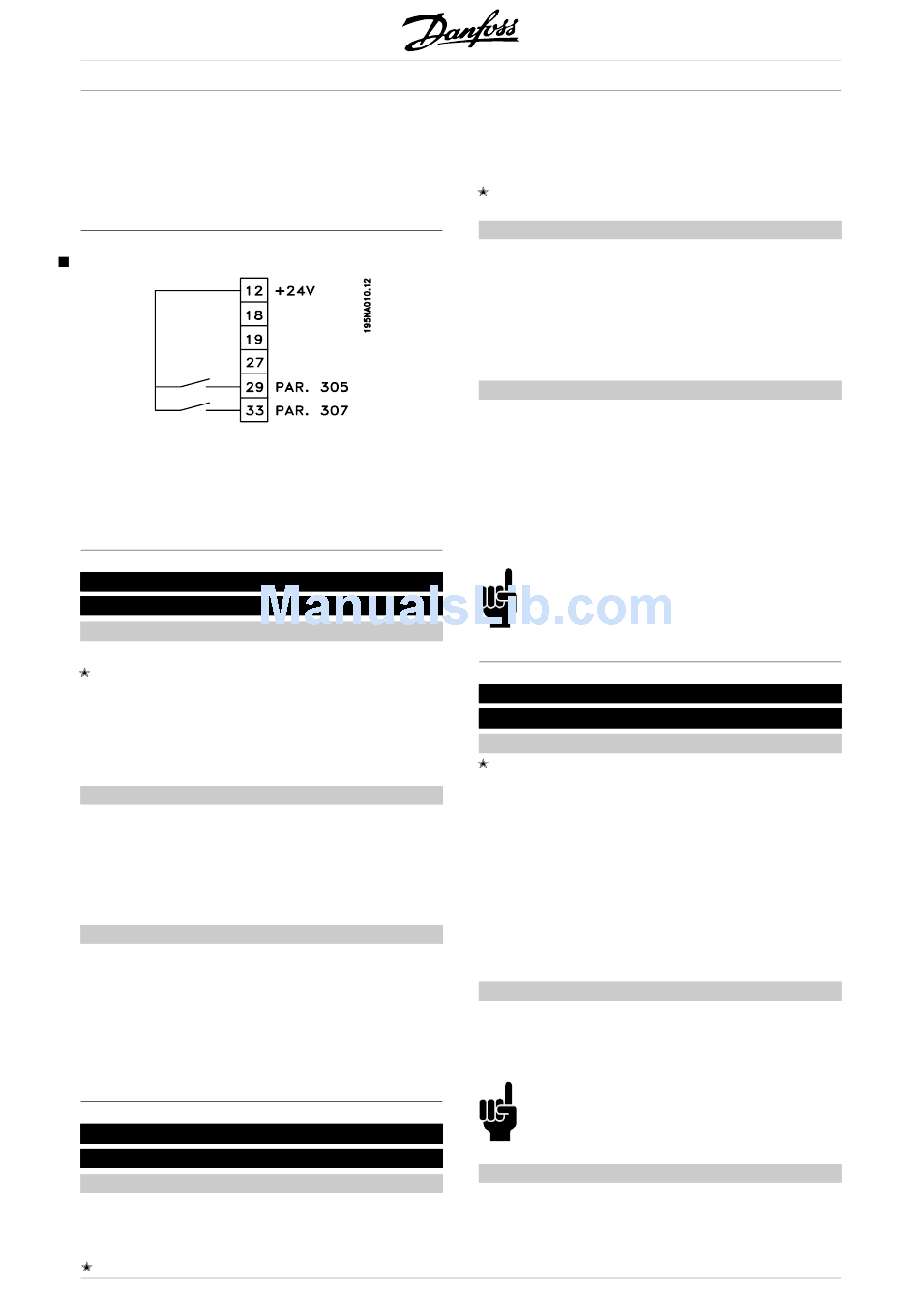

Setup shift
- Selection of Setup via terminals 29 and 33.
Par. 305 Digital input = Selection of Setup, lsb [31]
Par. 307 Digital input = Selection of Setup, msb [32]
Par. 004 Acti v e setup = Multi Setup [5]
004 Active Setup
(ACTIVE SETUP)
Value:
Factory Setup (FACTORY SETUP)
Setup 1 (SETUP 1)
Setup 2 (SETUP 2)
Setup 3 (SETUP 3)
Setup 4 (SETUP 4)
Multi Setup (MULTI SETUP)
Function:
The acti v e parameter Setup is selected here. All
parameters can be programmed in four indi v idual
parameter Setups. Shifts between Setups can
be made in this parameter via a digital input
or via serial communication.
Description of choice:
Factory Setup [0] contains the factory-set parameter
values. Setup 1-4 [1]-[4] are four indi v idual
Setups which can be selected as required. Multi
Setup [5] is used where remote-controlled shifts
between the four Setups via a digital input or via
serial communication is required.
005 Programming Setup
(EDIT SETUP)
Value:
Factory Setup (FACTORY SETUP)
Setup 1 (SETUP 1)
Setup 2 (SETUP 2)
= factory setting. () = display text [] = value for use in communication via serial communication port
32
VLT
Setup 3 (SETUP 3)
Setup 4 (SETUP 4)
Acti v e Setup (ACTIVE SETUP)
Function:
You can select which Setup you want to programme
during operation (applies both via the control
panel and the serial communication port). It is,
for example, possible to programme Setup 2
[2], while the acti v e Setup is set to Setup 1 [1]
in parameter 004 Acti v e Setup .
Description of choice:
Factory Setup [0] contains the factory-set data
and can be used as a source of data if the
other Setups are to be reset to a known status.
Setup 1-4 [1]-[4] are indi v idual Setups that can
be programmed freely during operation. If Acti v e
Setup [5] is selected, the programming Setup will
be equal to parameter 004 Acti v e Setup.
NB!:
If data is modified or copied to the acti v e
Setup, the modifications have an immediate
effect on the unit's operation.
[0]
[1]
006 Setup copying
[2]
[3]
(SETUP COPY)
[4]
Value:
[5]
No copying (NO COPY)
Copy to Setup 1 from #
(COPY TO SETUP 1)
Copy to Setup 2 from #
(COPY TO SETUP 2)
Copy to Setup 3 from #
(COPY TO SETUP 3)
Copy to Setup 4 from #
(COPY TO SETUP 4)
Copy to all Setups from # (COPY TO ALL)
Function:
You can copy from the selected acti v e Setup in
parameter 005 Programming setup to the selected
Setup or Setups in this parameter.
NB!:
Copying is only possible in Stop (motor stopped
in connection with a stop command).
Description of choice:
Copying begins when the required copying function
[0]
has been selected and the [OK]/[CHANGE DATA]
[1]
MG.04.B7.02 - VLT is a registered Danfoss trademark
®
