Service

Diagnostics
The actual status can be read on the outside of the
FCD products. Fi v e LEDs signal the actual status of
the unit with the meaning described in the table.
Further detailed status information can be obtained

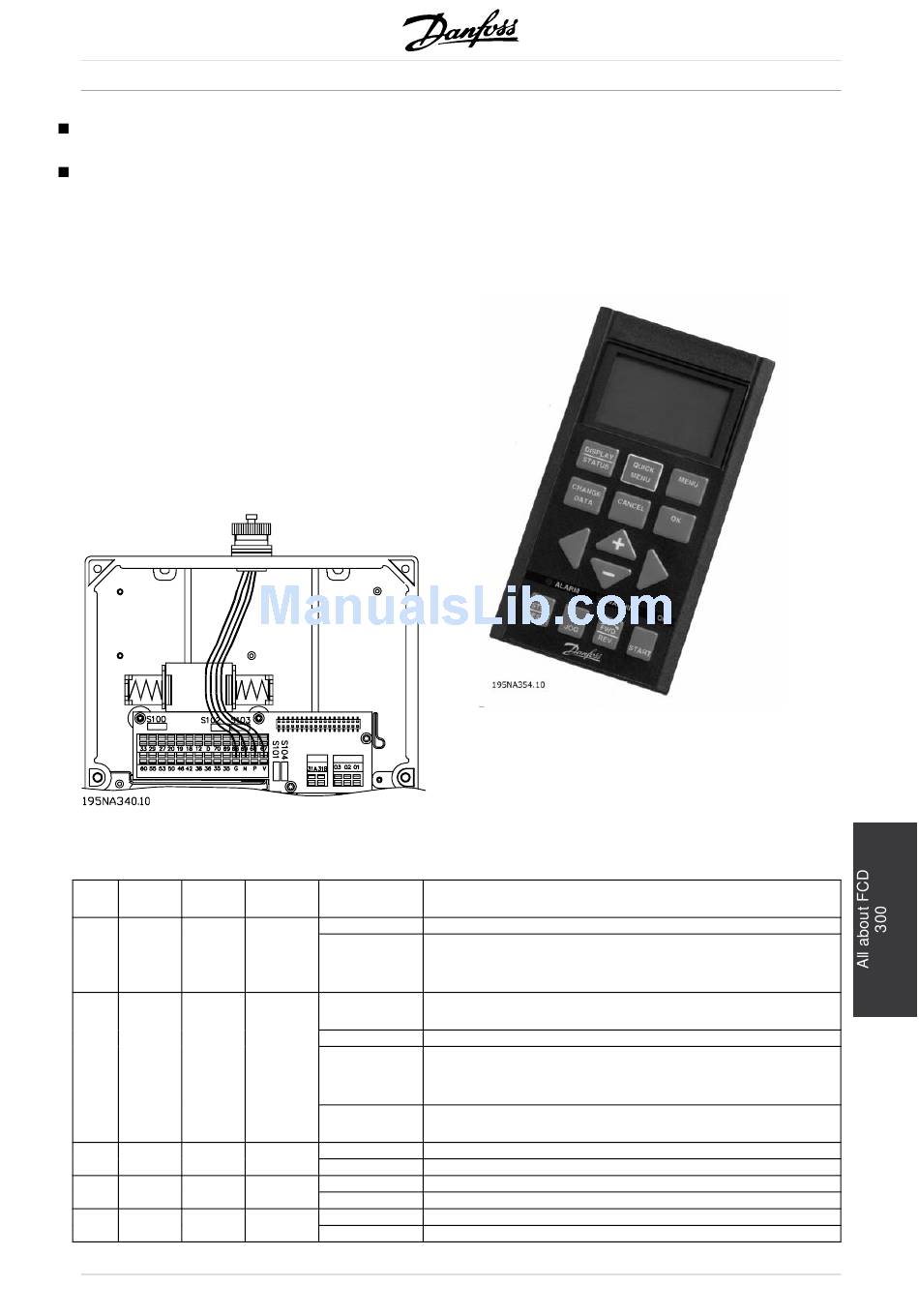

using a local control panel (LCP2 – see photo). This
can be connected on the outside (without opening the
enclosure) if the LCP2-plug shown on the drawing is
installed. The LCP2 is an easy-to -navigate user-friendly
interface used to access and adjust all parameters. It
displays parameters in six different languages.
The FCD 300 holds a log with valuable information
on failure. Information on the most recent 10
faults is stored and indexed in three different
parameters to help diagnosis.
LCP2-plug
LED diagnostics on decentralised FCD 300
No
Name
Colour
1
Status
Yellow
2
Bus
Green
3
Alarm
Red
4
Warning
Yellow
5
On
Green
MG.04.B7.02 - VLT is a registered Danfoss trademark
OK
Alternatives
status
Off
Off
On
On (If bus
On
option is
Slow flashing
present,
Fast flashing
else Off)
Off
Off
Off
Flashing
Off
Off
Flashing
On
On
Off
VLT
Parameter 616 stores the time of the fault as
measured by the internal clock.
Paramet er 617 holds a fault code telling
the type of fault detected.
Parameter 618 stores a measurement relevant for
the case. Typically the intermediate circuit voltage or
output current measured immediately before failure.
Local Control Panel
Function
Status of the FCD is OK
Corresponding to parameter setting. For further information see Design
Guide - parameter number 26 and DeviceNet manual for specific
DeviceNet signalling
OK status for the fild bus used
(Not relevant for non field bus device)
Local operation or local stop
Interface working, but no communication with master
(See field bus manual for specific info)
(Not relevant for non field bus device)
Status for the field bus not OK
(not relevant for non field bus device)
No alarm is present
Flashing while trip/trip lock is present
No warning is present
Flashing while warning situation is present
The unit is supplied by mains power or 24 V DC
Mains power or 24 V DC is missing
®
FCD Series
101
