Introduction
Product Label

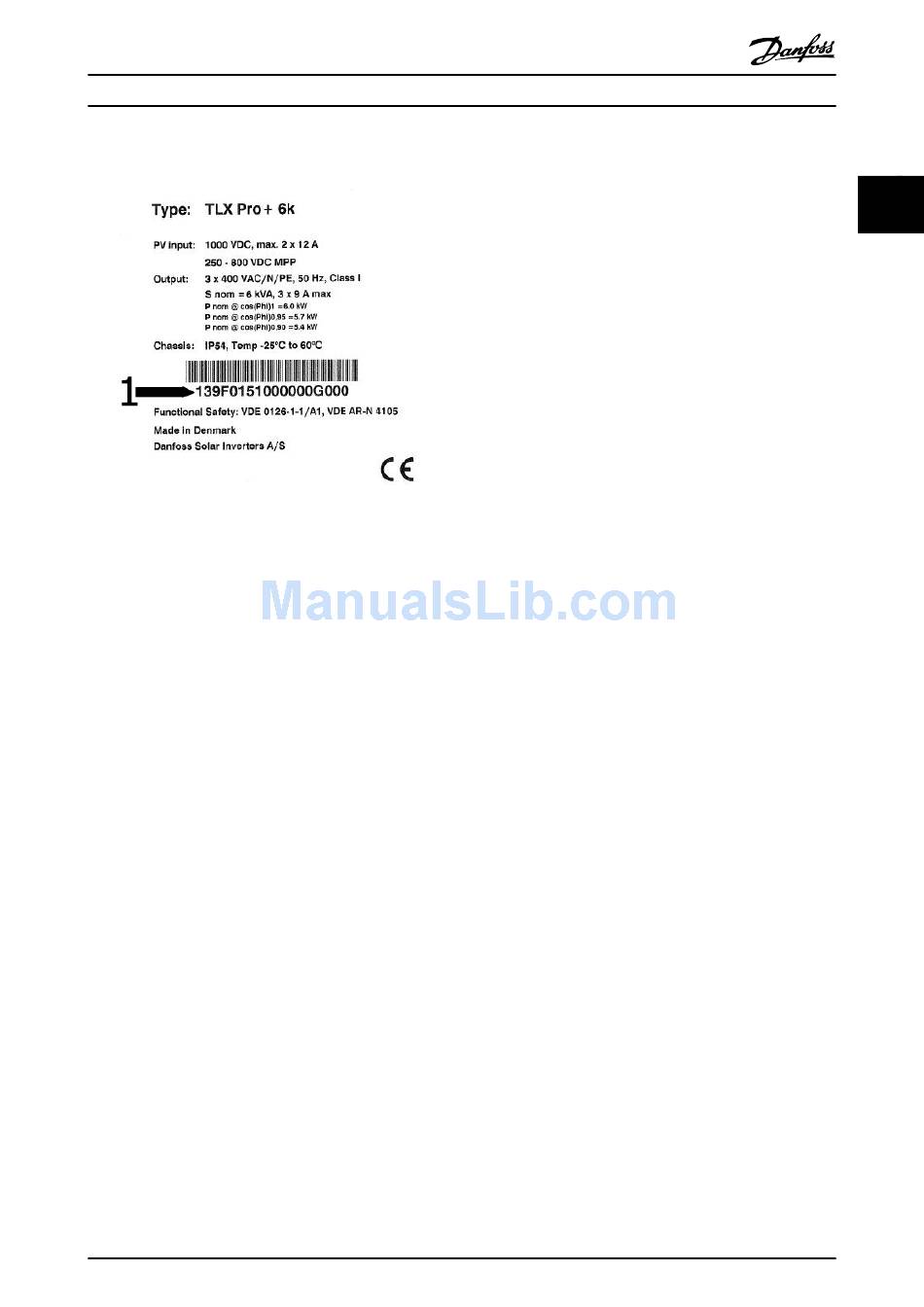

Illustration 1.2 Product Label
The product label on the side of the inverter shows:
•
Inverter type
•
Important specifications
•
Serial number, see (1), for identification by
Danfoss

1.1.1 Installation Sequence

1. Pay special attention to 1 Safety and Conformity.
2. Install the inverter according to 2.1 Installation
Dimensions and Patterns and 2.2 Mounting the
Inverter.
3. Open the inverter according to 2.4 Opening and
Closing the Inverter.
4. Install AC according to 2.5 AC Grid Connection.
5. Install PV.
6. Install Auxiliary input according to 2.8 Auxiliary
Input/Output .
7. Close the inverter according to 2.4 Opening and
Closing the Inverter.
8. Turn on AC at the mains switch.
9. Set language, time, date, installed PV power,
country and grid:
- For setup via the web interface, see the
TLX Series User Manual, Web Server Quick
Guide section.
- For setup via the display, see 3 Start-up
and Check of Settings.
10. Turn on PV by turning the PV load switch on.
11. Verify the installation by comparing with the
auto-detection result in the display, as described
in 2.7 PV Connection.
12. The inverter is now ready for operation.
