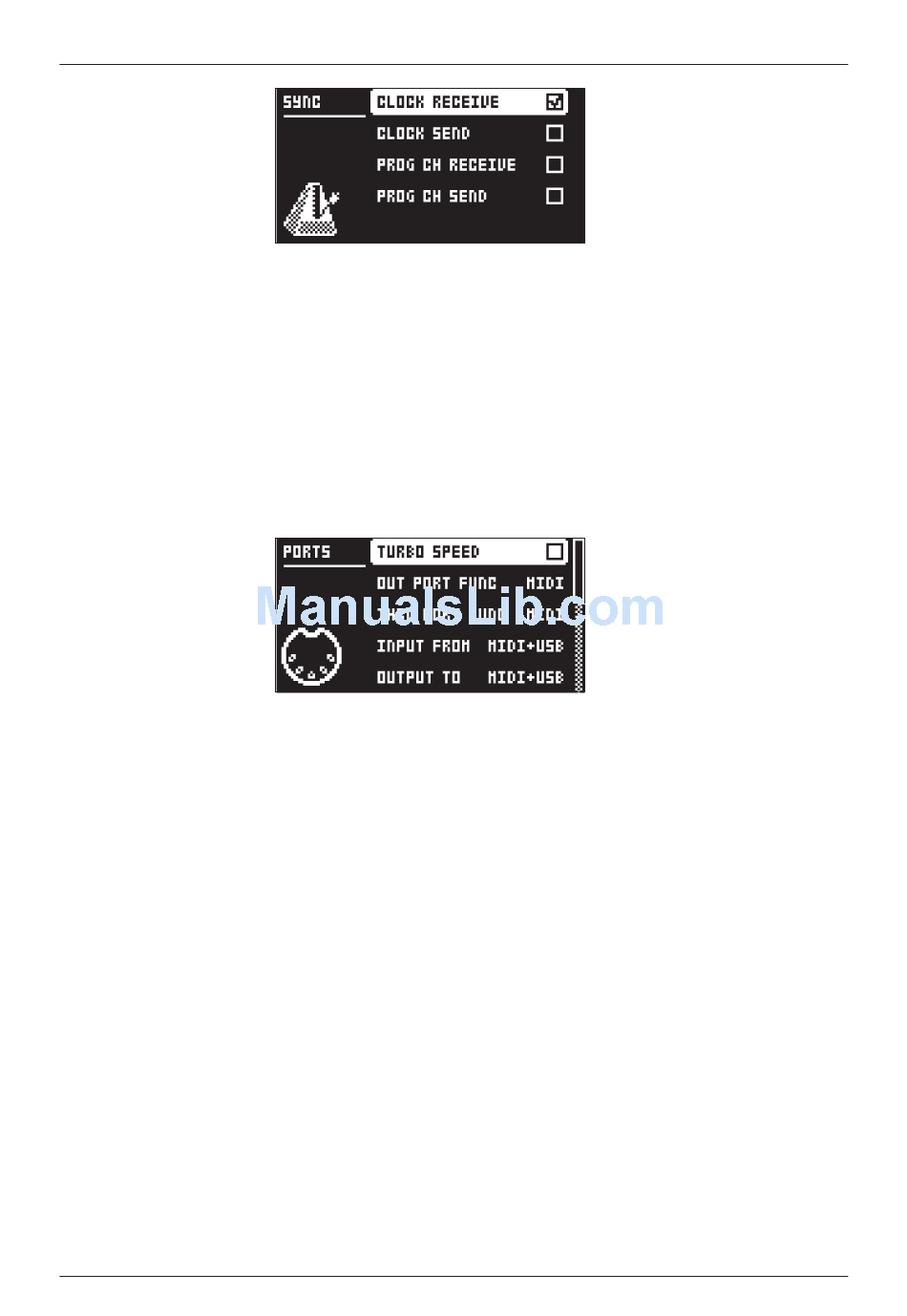

CLOCK RECEIVE sets whether or not Digitone responds to MIDI clock sent from external devices.
CLOCK SEND sets whether or not Digitone transmits MIDI clock.
PROG CH RECEIVE sets whether or not Digitone responds to incoming program change messages,
which is useful when wanting to select patterns externally. The MIDI channel that listens to incoming
program change messages is set in the MIDI CHANNELS menu. For more information, please see
"14.3.3 CHANNELS" on page 62.
PROG CH SEND sets whether or not Digitone sends program change messages when patterns
change. You set the MIDI channel that sends program change messages in the MIDI CHANNELS
menu. For more information, please see "14.3.3 CHANNELS" on page 62.

14.3.2 PORT CONFIG

In this menu you find the MIDI port related settings. Change settings by using the [LEFT]/[RIGHT] arrow
keys.
TURBO SPEED press [YES] to start the turbo speed negotiation. The device chooses the optimal
speed automatically. Please note that you must use a MIDI interface that supports the Turbo-MIDI
protocol.
OUT PORT FUNCTIONALITY selects what type of signal the MIDI OUT port sends.
MIDI makes it possible for the port to send out MIDI data.
DIN 24 makes the port send DIN 24 sync pulses. No MIDI data is transferred over the port when
this option is selected.
DIN 48 makes the port send DIN 48 sync pulses. No MIDI data is transferred over the port when
this option is selected.
THRU PORT FUNCTIONALITY selects what type of signal the MIDI THRU port sends. The settings
are the same as for OUT PORT FUNCTIONALITY.
INPUT FROM selects the input MIDI data port.
DISABLED receives no MIDI data.
MIDI receives MIDI data from the MIDI IN port.
USB receives MIDI data from the USB port.
MIDI+USB receives MIDI data from the MIDI IN and USB ports.
OUTPUT TO selects the output MIDI data port.
DISABLED sends no MIDI data.
MIDI sends MIDI data to the MIDI OUT port.
USB sends MIDI data to the USB port.
MIDI+USB sends MIDI data to the MIDI OUT and USB ports.
