3. PANEL LAYOUT AND CONNECTORS

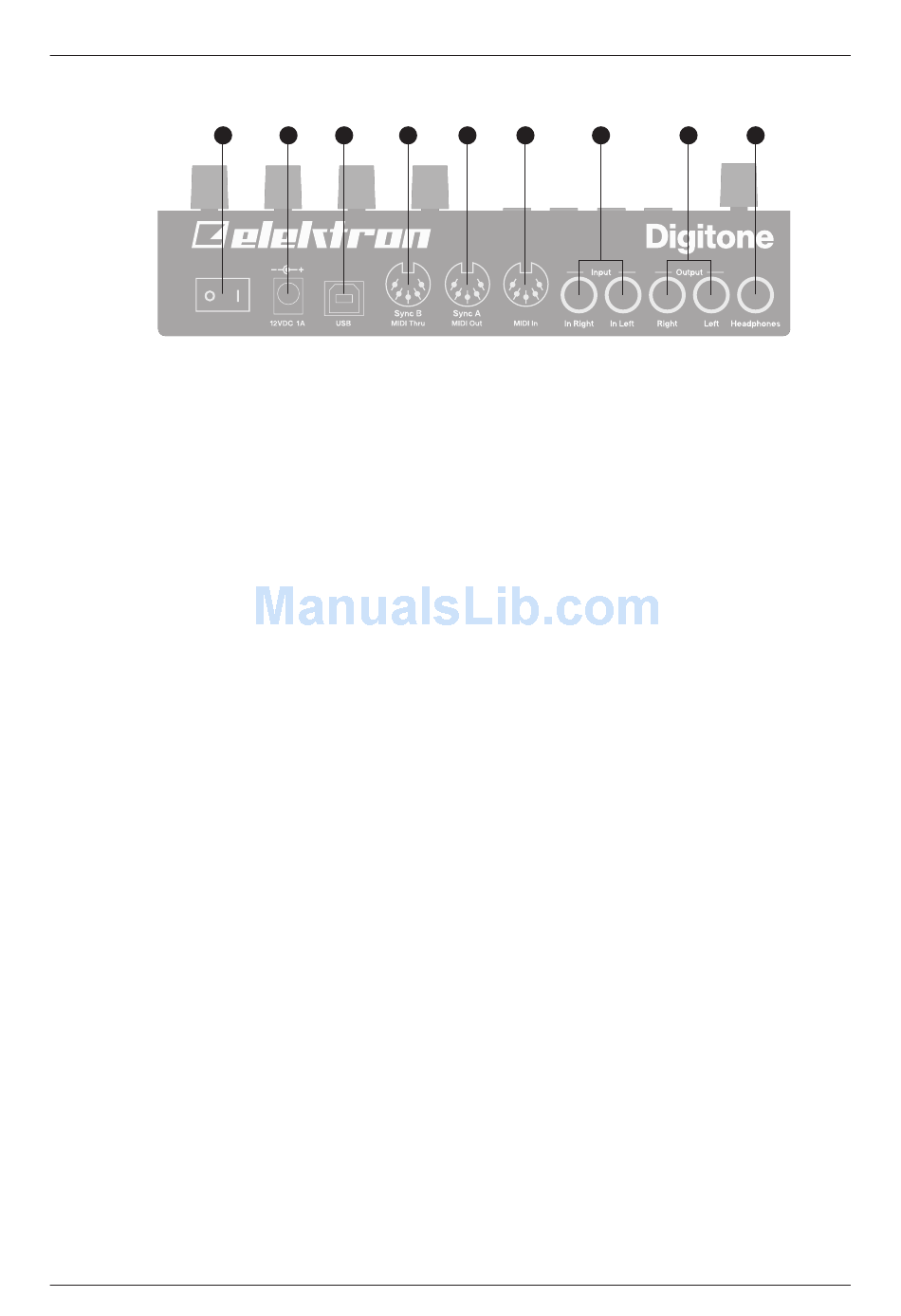

3.2 REAR CONNECTORS

1. POWER Switch for turning the unit on and off.
2. DC In Input for power supply. Use the included PSU-3b power adapter, connected to a power outlet.
3. USB For connecting the unit to a computer. For MIDI-control or Overbridge use. Use the included A to B
USB 2.0 connector cable to connect to a computer host.
4. MIDI THRU/SYNC B, Forwards data from MIDI IN. Can also be configured to send DIN sync to legacy
instruments. Use a standard MIDI cable to connect another MIDI device in the chain.
5. MIDI OUT/SYNC A, MIDI data output. Can also be configured to send DIN sync to legacy instruments.
Use a standard MIDI cable to connect to MIDI In of an external MIDI device.
6. MIDI IN, MIDI data input. Use a standard MIDI cable to connect to MIDI Out of an external MIDI device.
7. INPUT L/R, Audio inputs. Use a 1/4" mono phone plug (unbalanced connection).
8. OUTPUT L/R, Main audio outputs. Use either 1/4" mono phone plug (unbalanced connection) or
1/4" Tip/Ring/Sleeve phone plug (balanced connection).
9. HEADPHONES, Audio output for stereo headphones. Use 1/4" Tip/Ring/Sleeve phone plug.

3.3 SETTING UP AND STARTING THE DIGITONE

Make sure you place the Digitone on a stable support, such as a sturdy table, with sufficient space for the
cables. Make sure to switch off all devices before you connect the Digitone to other devices.
1. Plug the supplied DC adapter into a power outlet and connect the small plug to the 12 V DC In on the
Digitone.
2. Connect OUTPUT L/R from the Digitone to your mixer or amplifier.
3. To control the Digitone from a computer, connect a USB cable between the computer and the USB
connector of the Digitone.
4. If you want to use MIDI to control the Digitone, connect the MIDI OUT port of the device you wish to send
data from to the MIDI IN port of the Digitone. The MIDI THRU port duplicates the data arriving at the MIDI
IN port so that it can forward data to other MIDI units. Connect the MIDI OUT port of the Digitone to the
MIDI IN port of the of the device you want to control if you want to use Digitone to control other devices
using MIDI.
5. Connect an audio source to INPUT L/R or via USB if you want to process audio from external sources.
6. Switch on all units. Press the POWER switch located at the back of the Digitone to switch it on.
12
1 2 3 4 5 6 7 8 9
