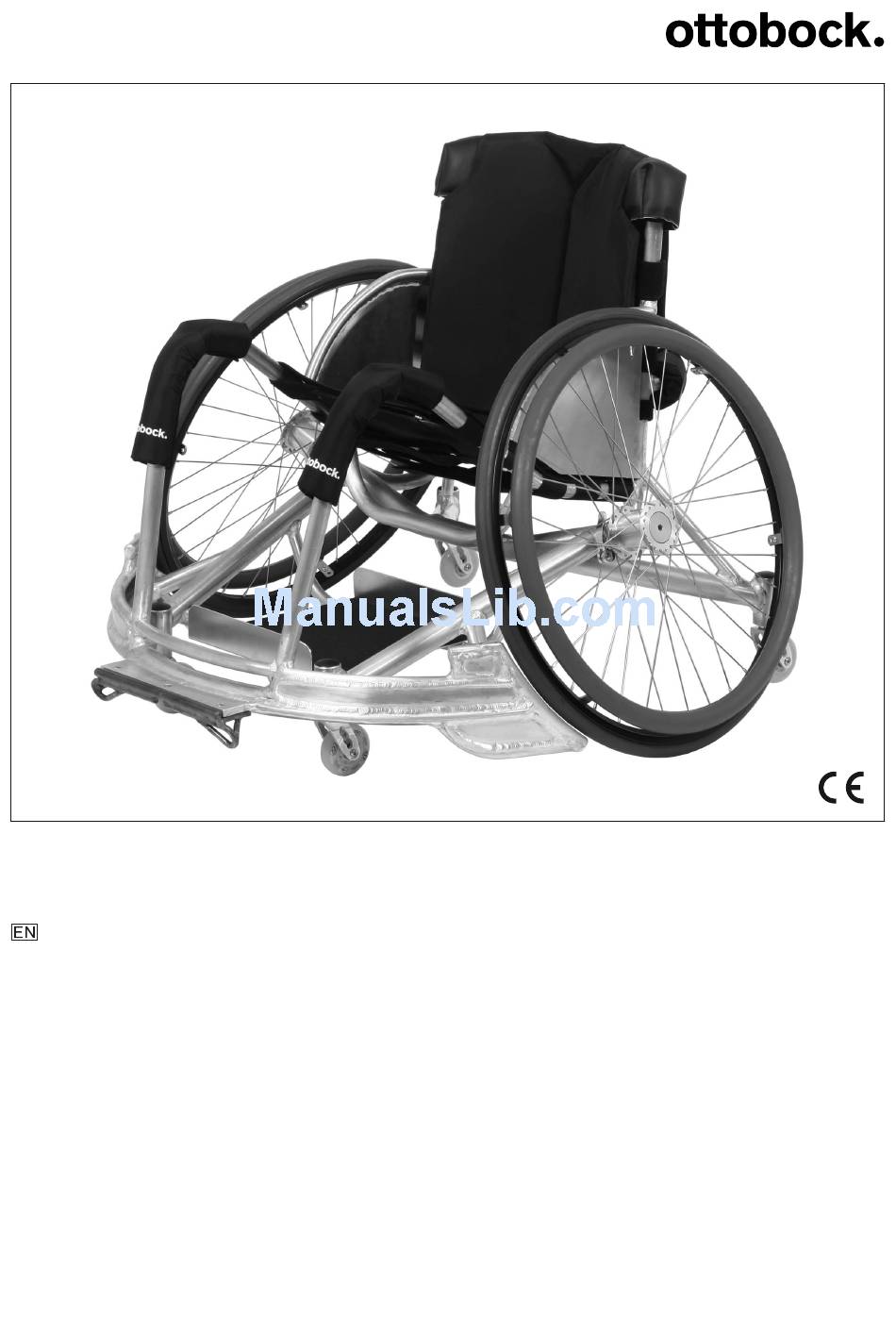

- Page 1 Invader 480S26=20000_K Instructions for Use ....................
- Page 2 2 | Ottobock Invader 480S26=20000_K...
-
Page 3: Table Of Contents
Table of contents Table of contents Foreword ................................Application ................................Intended Use ............................Indications ............................Contraindications ..........................Qualification ............................Product Description ............................Function .............................. Product Overview ..........................3.2.1 Invader Basketball ..........................3.2.2 Invader Rugby Attacker ......................... 3.2.3 Invader Rugby Defender ........................ - Page 4 Table of contents 7.16 Use in a wheelchair accessible vehicle ....................7.17 Care ..............................7.17.1 Cleaning ............................7.17.2 Disinfection ............................Maintenance/Repair ............................Maintenance ............................8.1.1 Maintenance tasks ..........................8.1.2 Further information on maintenance ...................... Inspection ............................Repair ............................... 8.3.1 Inner tube/rim tape/tyre replacement .....................
-
Page 5: Foreword
Foreword 1 Foreword INFORMATION Last update: 2014-04-07 ► Please read this document carefully. ► Follow the safety instructions. INFORMATION ► These instructions for use can be viewed and downloaded as a PDF document under www.ottobock.com. Alternatively you can request the PDF document from the manufacturer's service department (see inside back cover or back page for addresses). -
Page 6: Product Description
Product Description 3 Product Description 3.1 Function This wheelchair was developed in cooperation with competitive athletes who have practical experience. Profession al and recreational athletes are the primary user groups. The wheelchair can be used by youths and adults. The wheelchair is designed to be made to measure. Every wheelchair is custom-made to measure – tailored pre cisely to the size, needs and abilities of the user. -
Page 7: Invader Rugby Attacker
Product Description 1 Backrest with back upholstery 8 Caster wheel 2 Leather corner (protective pad) 9 Anti-tipper wheel 3 Side panel 10 Anti-tipper pad 4 Seat upholstery/seat cushion 11 Rear wheel 5 Frame 12 Push ring 6 Footplate 13 Back bar with pad 7 Bumper 3.2.2 Invader Rugby Attacker Invader –... -
Page 8: Invader Rugby Defender
Safety 3.2.3 Invader Rugby Defender Invader – Rugby Defender version 1 Backrest with back upholstery 7 Pick bar (steel) 2 Leather corner (protective pad) 8 Caster wheel 3 Side panel 9 Anti-tipper wheel 4 Seat upholstery 10 Rear wheel 5 Frame 11 Push ring 6 Footplate 12 Back bar with pad... -
Page 9: Safety Instructions For Use
Safety 4.2 Safety Instructions for Use Hazards during preparation for use WARNING Independent modification of settings Serious injuries to the user due to unallowable changes to the product ► Do not modify the settings established by the qualified personnel. ► In case of problems with the settings (unsatisfactory seating position, caster wheel wobble, etc.) please con tact the qualified personnel who adjusted your product. -
Page 10: Nameplate
Delivery Hazards due to fire, heat and cold CAUTION Extreme temperatures Hypothermia or burns through contact with components, failure of components ► Do not expose the product to any extreme temperatures (e. g. direct sunlight, extreme cold). Hazards due to improper use of the product NOTICE Use under incorrect environmental conditions Damage to product due to abrasion... -
Page 11: Preparation For Use
Preparation for Use 6 Preparation for Use 6.1 Assembly CAUTION Failure to verify readiness for use before putting into operation Tipping, falling due to incorrect adjustment or installation ► Before you start using the wheelchair for the first time, check the chosen wheelchair settings with the support of authorised personnel. -
Page 12: Techniques For Using A Wheelchair
CAUTION Improper use of self-locking nuts Tipping, falling over of the user due to screw connections coming loose ► Always replace self-locking nuts with new self-locking nuts after disassembly. Adjustments to match the concrete physical and mental condition of the user should always be made in the user's presence. -
Page 13: Adjusting The Footrest (Footplate)
7.4.1 Adjusting the footrest (footplate) INFORMATION The assembly tasks described below may only be carried out by qualified personnel. The height of the footplate can be subsequently adjusted by installing spacers. 1) Loosen and remove the screw connection underneath the footplate (see Fig. 9). 2) Insert the 4 spacers according to the desired height. -
Page 14: Adjusting The Seat Upholstery
7.5.2 Adjusting the seat upholstery The seat upholstery is attached to the frame tubes with hook-and-loop straps. 1) If necessary: Place the seat cushion on the seat upholstery. 2) Open and loosen the rear hook-and-loop straps. Attach a hook-and loop strap from the middle diagonally over the straps to secure them (see Fig. 11). -
Page 15: Fastening/Removing The Backrest Pad
7.6.1 Fastening/removing the backrest pad The backrest pad can be removed for cleaning. 1) Remove the seat cushion from the seat pad. 2) Pull the lower end of the backrest pad off the hook-and-loop fastener on the seat pad (see Fig. 13). 3) Pull the back padding up and off (see Fig. 14). -
Page 16: Side Panels
7.7 Side panels CAUTION Pinching at the side panels Pinching, crushing due to lack of caution in danger areas ► Pay attention not to pinch parts of your body between the side or frame parts. The side panels protect the user from dirt and in case of a collision during competitive sports. They also ensure that the user is securely supported in the wheelchair. -
Page 17: Removing/Mounting The Rear Wheels
CAUTION Defective tyres Accidents/falling due to poor traction, reduced braking force or lack of manoeuvrability ► Maintain sufficient tyre pressure. The correct tyre pressure is printed on the tyre sidewall. ► Ensure that the pressure is the same in both tyres. ►... -
Page 18: Adjusting The Quick-Release Axle
7.8.2 Adjusting the Quick-Release Axle INFORMATION The assembly tasks described below may only be carried out by qualified personnel. The quick-release axle should be set so the wheel is correctly engaged, with no play on the axle. 1) Hold the tip of the quick-release axle with a wrench. 2) Adjust the play by turning the nut on the end of the quick-release axle (see Fig. 25, item 1) in or out. -
Page 19: Tensioning The Spokes/Adjusting The Out-Of-Round
7.8.4 Tensioning the Spokes/Adjusting the Out-of-Round INFORMATION The assembly tasks described below may only be carried out by qualified personnel. Tensioning the Spokes 1) Completely remove the tyre (see Fig. 27). 2) Check the spoke tension by shaking/moving the spokes. 3) If necessary, carefully adjust the tension of the spokes with spoke tensioner. 4) Completely reinstall the tyre. -
Page 20: Caster Wheels/Caster Forks
7.9 Caster wheels/caster forks The combination of caster wheels and caster forks ensures the ability to hold a straight line and navigate bends securely. The caster wheels (Ø 3" – 6") and caster forks were installed by qualified personnel according to the order. 7.9.1 Approach in case of stiffness In case of stiffness, the caster forks or caster wheel axles should be cleaned and oiled. -
Page 21: Anti-Tipper
7.10 Anti-tipper WARNING Incorrectly adjusted anti-tipper Risk of falling as a result of incorrectly adjusted anti-tipper. ► The anti-tipper may only be adjusted by qualified personnel. One or two anti-tipper wheels may be installed depending on the wheelchair version (see Fig. 33, item 1). In the Basketball version, an anti-tipper pad protects the respective anti-tipper housing (see Fig. 33, item 2). -
Page 22: Attaching The Seatbelts
Seatbelts with hook-and-loop closure These seatbelts are fastened with hook-and-loop closures: • Leg strap (see Fig. 37) • Chest strap (see Fig. 38) 7.11.1 Attaching the seatbelts WARNING Incorrect installation of the seatbelts Strangulation, suffocation because of failure to observe the specifications ►... - Page 23 Lap belt 1) Pull the strap ends through between the seat bottom and side panel (see Fig. 40; see Fig. 41, item 1). 2) Slide the clamp fittings onto the back tube (see Fig. 41, item 2). 3) Screw the strap ends to the clamp fittings (see Fig. 41, item 3). Leg strap, chest strap 1) Open the hook-and-loop straps on the belts.
-
Page 24: Using The Seatbelts
7.11.2 Using the seatbelts WARNING Incorrect adjustment/application of the seatbelts Strangulation, suffocation because of failure to observe the specifications ► The initial adjustments may only be made by qualified personnel. ► Observe the information on correct adjustment/application in the instructions for use included with the seat belt. -
Page 25: Removing/Installing The Protective Pads
• Leather corners (see Fig. 50) 7.12.1 Removing/installing the protective pads The protective pads can be removed for cleaning. 1) Open the hook-and-loop closures and remove the protective pads (illustration see previous section). 2) After cleaning (see Page 26): Secure the protective pads on the wheelchair again, respectively with the hook-and-loop fasteners to prevent slipping. -
Page 26: Additional Options
Bumper Steel component on the Rugby Attacker version (see Fig. 53). This wear part can be unscrewed and replaced if required (see Fig. 53, item 1). 7.14 Additional options The product may be equipped with additional options. The options are firmly mounted to the product by qualified personnel or the manufacturer and are pre-adjusted by qualified personnel at delivery. -
Page 27: Maintenance/Repair
Maintenance/Repair • If the product is used by more than one person, using a conventional disinfectant is required. • Only use colourless water-based disinfectants. Observe the instructions for use provided by the manufacturer. 8 Maintenance/Repair 8.1 Maintenance • The function of the product should be checked before each use. •... - Page 28 Maintenance/Repair • The rear wheels are equipped with a quick-release axle system as standard equipment. To keep this system operational, ensure that no dirt adheres to the quick-release axle or receiver bushing. Periodically lubricate the quick-release axle very lightly with thin, resin-free oil (sewing machine oil). •...
-
Page 29: Inspection
Maintenance/Repair 8.2 Inspection • For reasons of product safety, an annual inspection is to be performed on this wheelchair type according to the list below. • Under more severe conditions – e.g. in case of increased strain – the user should have an interim inspection of the frame and chassis performed. - Page 30 Maintenance/Repair INFORMATION Tubeless TUFO indoor sport tyres can be ordered as an option for this wheelchair type. They have to be replaced entirely in case of damage. Repairing flat tyres requires only the necessary tools and users may change tyres themselves if they wish: Removal and preparing for installation 1) Carefully remove the tyre from the rim using appropriate tools.
-
Page 31: Disposal
Disposal Inflating the tube 1) Ensure that the valve is positioned perpendicularly for proper positioning of the tube and tyre in the region of the valve. 2) Firmly screw on the valve nut. 3) Inflate the tube so that the tyre can still be pressed in easily with your thumb. INFORMATION: If the circumferential lines on the two sides of the tyre are both at an even distance from the rim, the tyre is centred. -
Page 32: Appendices
Appendices 11 Appendices 11.1 Technical data INFORMATION All information in the following tables refers to the respective custom-made model. The dimensional tolerance is +/-1.5 cm, +/-2°. Dimensions Frame length Custom fabrication Lower leg length [mm] Custom fabrication Minimum frame length [mm] Custom fabrication Minimum rear seat height [mm] Maximum front/rear seat height [mm]... - Page 33 Appendices • Thread diameter M4: 3 Nm • Thread diameter M5: 5 Nm • Thread diameter M6: 10 Nm • Thread diameter M8: 25 Nm • Thread diameter M10: 50 Nm • Thread diameter M12: 85 Nm Invader 480S26=20000_K Ottobock | 33...
- Page 34 34 | Ottobock Invader 480S26=20000_K...
- Page 35 · www.ottobock.com.au Otto Bock Bulgaria Ltd. info@ottobock.sk · www.ottobock.sk 41 Tzar Boris III‘ Blvd. · 1612 Sofia · Bulgaria Beijing Otto Bock Orthopaedic Industries Co., Ltd. T +359 2 80 57 980 · F +359 2 80 57 982 Otto Bock Sava d.o.o. B12E, Universal Business Park info@ottobock.bg · www.ottobock.bg Industrijska bb ·...
- Page 36 Ihr Fachhändler | Your specialist dealer Otto Bock Mobility Solutions GmbH Lindenstraße 13 · 07426 Königsee-Rottenbach/Germany www.ottobock.com Ottobock has a certified Quality Management System in accordance with ISO 13485.
