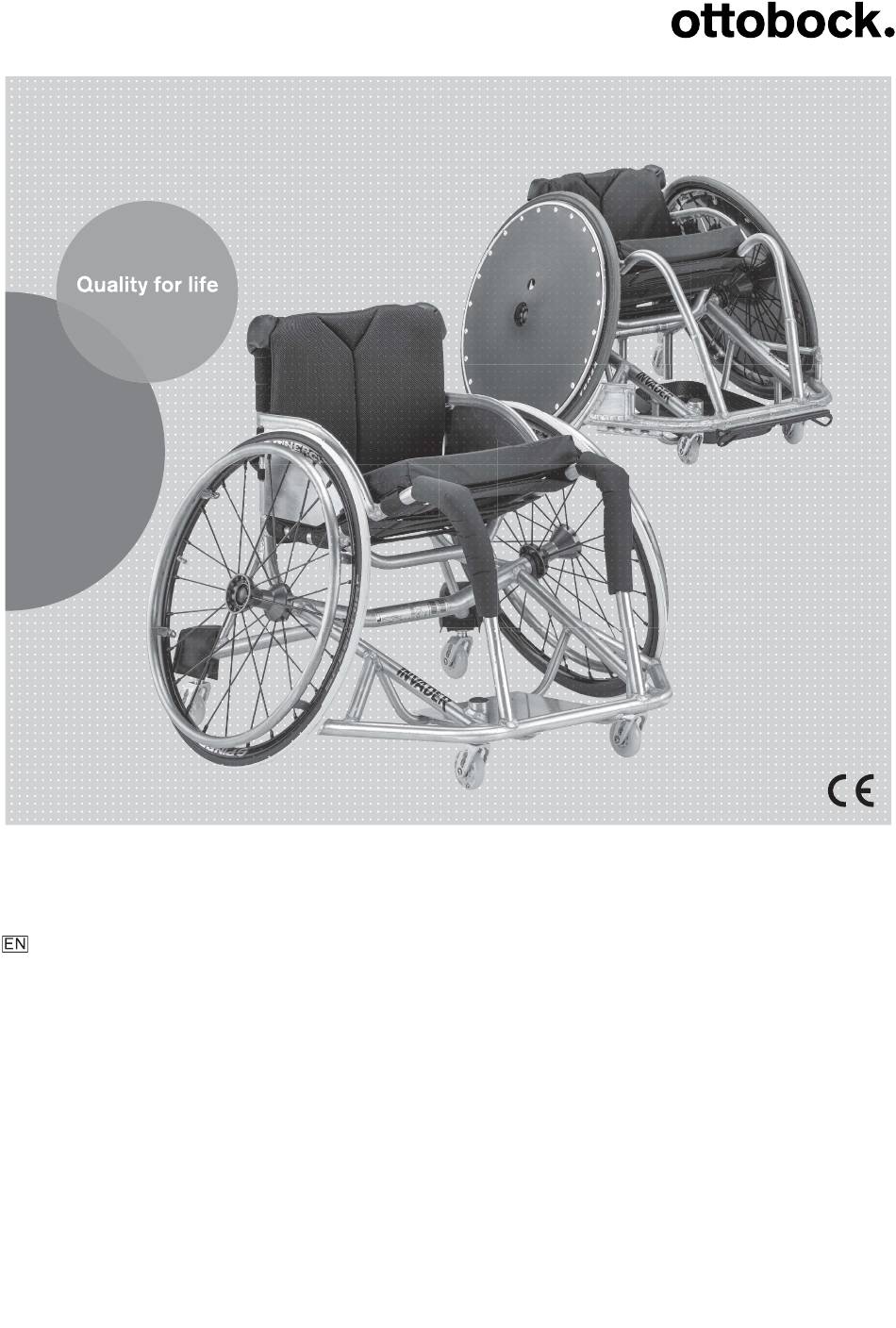

- Page 1 Invader 480S26=20000_K Instructions for use ....................
- Page 2 Invader 480S26=20000_K...
-
Page 3: Table Of Contents
Table of contents Table of contents Foreword ................................Product description ............................Function .............................. Product overview ..........................2.2.1 Invader Basketball ..........................2.2.2 Invader Rugby Offence .......................... 2.2.3 Invader Rugby Defense ......................... Intended use ................................ Indications for use ..........................Indications ............................Contraindications ..........................3.3.1 Absolute Contraindications ........................ - Page 4 11.1 Disposal information ..........................11.2 Information on re-use ........................... Legal information .............................. 12.1 Liability .............................. 12.2 Warranty ............................12.3 Lifetime .............................. Technical data ..............................Appendices ................................ 14.1 Required tools ............................ 14.2 Torque values of the screw connections ....................Invader 480S26=20000_K...
-
Page 5: Foreword
The welded frame is made from hardened aluminium 7020 T6. The material and its processing ensure great stabil ity and durability. The drive wheels are attached to the frame using a reinforced (Ø 15.8 mm) or oversize (Ø 25 mm) quick-release axle. The Invader wheelchair line includes: • Wheelchair for everyday active use (see 647H575=*_INT instructions for use) •... -
Page 6: Product Overview
Product description 2.2 Product overview 2.2.1 Invader Basketball Invader – Basketball version; Basketball ULW version (ultra lightweight) 1 Back support with back support upholstery 8 Caster wheel 2 Leather corner (protective pad) 9 Anti-tipper wheel 3 Side panel 10 Anti-tipper pad... -
Page 7: Invader Rugby Offence
Product description 2.2.2 Invader Rugby Offence Invader – Rugby Offense version 1 Back support with back support upholstery 8 Bumper (steel) 2 Leather corner (protective pad) 9 Wing 3 Side panel 10 Caster wheel 4 Seat upholstery 11 Anti-tipper wheel... -
Page 8: Invader Rugby Defense
Product description 2.2.3 Invader Rugby Defense Invader – Rugby Defense version 1 Back support with back support upholstery 7 Pickbar (steel) 2 Leather corner (protective pad) 8 Caster wheel 3 Side panel 9 Anti-tipper wheel 4 Seat upholstery 10 Drive wheel... -
Page 9: Intended Use
► Settings may only be changed by qualified personnel unless otherwise prescribed. ► Before testing setting changes with the user seated, all screw connections must be firmly tightened. ► Check the product for safety and functionality after changing the settings. Invader 480S26=20000_K... -
Page 10: Safety Instructions For Use
Falling of the user or damage to the product due to failure to observe the indications for use ► The wheelchair is designed for use on level floors/surfaces with no obstacles. Do not negotiate stairs, steps or high curbs. ► Crossing obstacles higher than 3 mm leads to a loss of traction or getting stuck. Invader 480S26=20000_K... - Page 11 ► Contact the qualified personnel. NOTICE Use under incorrect environmental conditions Damage to product due to abrasion ► Avoid sand or other particles that may damage the wheel bearings. Invader 480S26=20000_K...
-
Page 12: Side Effects
UDI-DI to GS1 standard; UDI = Unique Device Identifier, DI = Device Identifier 4.6.2 Warning labels Label Meaning Sports equipment – for indoor use only! 5 Delivery 5.1 Scope of delivery • Wheelchair ready for use • Instructions for use • Instructions for use for accessories (depending on equipment) Invader 480S26=20000_K... -
Page 13: Storage
It takes just a few simple steps to prepare the wheelchair for use: 1) Attach the drive wheels to the quick-release axle mountings (see page 24). 2) If necessary: Fit the seat cushion. The seat cushion is secured against sliding by being pressed on to the hook-and-loop fastener (see page 21). Invader 480S26=20000_K... -
Page 14: Settings And Assembly Instructions
Damage to product due to lack of attachment ► When you work on the product, secure it so that it cannot tip over or fall over. ► Use a clamping fixture to secure the product whenever you work on it at a workbench. Invader 480S26=20000_K... -
Page 15: Adjusting The Drive Wheels
All handrims are designed for a spacing from the drive wheel of 15 mm (standard setting) and 25 mm. 1) Loosen/remove the handrim screw connection from the rim (see fig. 8). 2) Tightly screw the handrims onto the rim in narrow or wide installation position. Invader 480S26=20000_K... -
Page 16: Adjusting The Caster Wheels
INFORMATION: The two ends of the hook-and-loop strap have to overlap by at least 100 mm in each case. INFORMATION: Adjust the respective lower hook-and-loop straps somewhat tighter. INFORMATION: Deviating adjustments may be required in specific cases; this is the responsibility of the attending therapist. Invader 480S26=20000_K... -
Page 17: Adjusting The Seat Upholstery
The height of the foot plate can be subsequently adjusted by inserting spacers. 1) Loosen and remove the screw connection under the foot plate (see fig. 25). 2) Insert the four spacers according to the desired height. 3) Firmly retighten the screw connection. Invader 480S26=20000_K... -
Page 18: Adjusting The Anti-Tipper
1) Pull the strap ends through between the seat bottom and side panel (see fig. 18; see fig. 19, item 1). 2) Slide the clamp fittings onto the back tube (see fig. 19, item 2). 3) Screw the strap ends to the clamp fittings (see fig. 19, item 3). Invader 480S26=20000_K... -
Page 19: Adjusting The Seat Belts
► In particular, ensure that the user and/or attendant/care staff knows how to quickly loosen and open the product to avoid delays in case of emergency. Information on the settings can be found in the manufacturer’s instructions for use accompanying each product. Invader 480S26=20000_K... -
Page 20: Delivery
Improper use of the leg supports Abrasions due to sharp edges, skin irritation ► To prevent injuries on the soles of the feet, do not use the leg supports while barefoot. The user's feet can be placed on the leg support. Invader 480S26=20000_K... -
Page 21: Seat And Back Upholstery
1) Remove the seat cushion from the seat pad (see fig. 26). 2) After cleaning (see page 30): Place the seat cushion on the seat pad. The seat cushion is secured against sliding by being pressed on to the hook-and-loop fastener. Invader 480S26=20000_K... -
Page 22: Removing And Fastening The Back Support Pad
6) Attach the lower end of the backrest padding to the hook-and-loop fastener on the seat pad (see fig. 30). INFORMATION: This prevents sliding and protects against draughts. 7) Fasten the seat cushion to the hook-and-loop fastener on the seat pad. Invader 480S26=20000_K... -
Page 23: Side Panels
► Wear wheelchair gloves when travelling at high speeds. The wheelchair is moved, steered, braked and stopped with the help of the handrims on the drive wheels. To make transport easier, drive wheels with quick-release axle can be taken off the wheelchair. Invader 480S26=20000_K... -
Page 24: Removing And Mounting The Drive Wheels
Drive wheels with quick-release mechanism The Ø 25 mm wheel axle is permanently attached to the wheel hub. 1) Release the clamping lever (see fig. 35). 2) Pull off/push on the drive wheel. 3) Firmly close the clamping lever to the stop (see fig. 36). Invader 480S26=20000_K... -
Page 25: Caster Wheels And Caster Forks
► The anti-tipper may only be adjusted by qualified personnel. One or two anti-tipper wheels may be installed depending on the wheelchair version (see fig. 38, item 1). In the Basketball version, an anti-tipper pad protects the respective anti-tipper housing (see fig. 38, item 2). Invader 480S26=20000_K... -
Page 26: Seatbelts (Option)
These seatbelts are fastened using a closure system (ratchet strap and catch): • Lower leg strap (not illustrated) • Thigh strap (see fig. 40) • Lap belt (see fig. 41) Seatbelts with hook-and-loop closure These seatbelts are fastened with hook-and-loop closures: • Leg strap (see fig. 42) • Chest strap (see fig. 43) Invader 480S26=20000_K... -
Page 27: Using The Seat Belts
2) Opening and closing during use is performed in the same manner. Leg strap, chest strap 1) Adjust the belt length by opening and moving the hook-and-loop strap (see fig. 45; see fig. 46). 2) Opening and closing during use is performed in the same manner. Invader 480S26=20000_K... -
Page 28: Protective Pads (Option)
2) After cleaning (see page 30): Secure the protective pads on the wheelchair again, respectively with the hook- and-loop fasteners to prevent slipping. 9.11 Additional add-on components Depending on the version, the wheelchair may be equipped with additional add-on components. Invader 480S26=20000_K... -
Page 29: Additional Options
► In vehicles for transporting persons with reduced mobility, only use the seats installed in the vehicle with the corresponding personal restraint systems. ► Information on the current status of our measures is available from the qualified personnel. Invader 480S26=20000_K... -
Page 30: Care
The Invader wheelchair has not been approved by the manufacturer for use as a seat in vehicles for transporting persons with reduced mobility. 9.15 Care 9.15.1 Cleaning 9.15.1.1 Cleaning by hand 1) Clean the padding and upholstery with warm water and a mild detergent. -
Page 31: Disinfection
Check the tyre pressure Use a pressure gauge. High-pressure tyres: If none is available: use the “thumb pres 8.0 bar (116 psi) sure method”. Indoor sport tyres: 11.0 bar (160 psi) 16.0 bar (232 psi) Before each use Check the tyre tread Perform a visual inspection. Invader 480S26=20000_K... -
Page 32: Maintenance Tasks
Check add-on components and accessories for damage and cor rosion General inspection Check all screw connections for firm fit Check the attachment of all add-on components Check hook-and-loop closures, add-on components accessories Drive wheels Check that wheel mounts are securely fastened Invader 480S26=20000_K... -
Page 33: Repair
4) Before fitting the tyre again, inspect the rim bed and tyre inner wall for foreign objects. This could have caused the puncture. 5) Before installing the tube, check that the rim band is in proper condition. The rim band protects the tube from being damaged by the ends of the spokes. Invader 480S26=20000_K... -
Page 34: Disposal
4) Inflate the tube to the maximum pressure specified by the tyre manufacturer (see information printed on the tyre sidewall). 5) Firmly screw the valve cap onto the valve. 11 Disposal 11.1 Disposal information Return the product to the qualified personnel for disposal. Invader 480S26=20000_K... -
Page 35: Information On Re-Use
Overall width = seat width + 20 mm per degree of wheel camber Overall height Custom size Back height [mm] from 220 Armrest height Custom size Length with footrest Custom size Length without footrest Custom size Seat cushion thickness [mm] 30; 50; 60; 90 Invader 480S26=20000_K... -
Page 36: Appendices
Unless otherwise specified, screw connections are tightened with the following torque values: • Thread diameter M4: 3 Nm • Thread diameter M5: 5 Nm • Thread diameter M6: 10 Nm • Thread diameter M8: 25 Nm • Thread diameter M10: 50 Nm • Thread diameter M12: 85 Nm Invader 480S26=20000_K... - Page 37 Invader 480S26=20000_K...
- Page 38 Invader 480S26=20000_K...
- Page 39 · www.ottobock.de 143441 Moscow Region/Krasnogorskiy Rayon info@ottobock.com.co · www.ottobock.com.co Russian Federation Otto Bock Healthcare Products GmbH Otto Bock de Mexico S.A. de C.V. T +7 495 564 8360 · F +7 495 564 8363 Brehmstraße 16 · 1110 Wien · Austria Prolongación Calle 18 No. 178-A info@ottobock.ru · www.ottobock.ru F +43 1 5267985...
- Page 40 Ihr Fachhändler | Your specialist dealer Otto Bock Mobility Solutions GmbH Lindenstraße 13 · 07426 Königsee/Germany www.ottobock.com...
