Time Programming - Sime MURELLE REVOLUTION 25 User, Installation And Servicing Instructions

Function Mode
Set AUTO comfort
Set AUTO reduced
Set MAN
Program. Time
Esc
– turn the encoder to modify the "Data/value" in the
permitted field (e.g. MAN - AUTO - OFF)
– Press the encoder to confirm any modifications made
click
and go back to the row "Function mode"
– turn the encoder to select another "Row" (e.g.
"Program. Time" ).
Function Mode
Set AUTO comfort
Set AUTO reduced
Set MAN
Program. Time
Esc
1.3.1

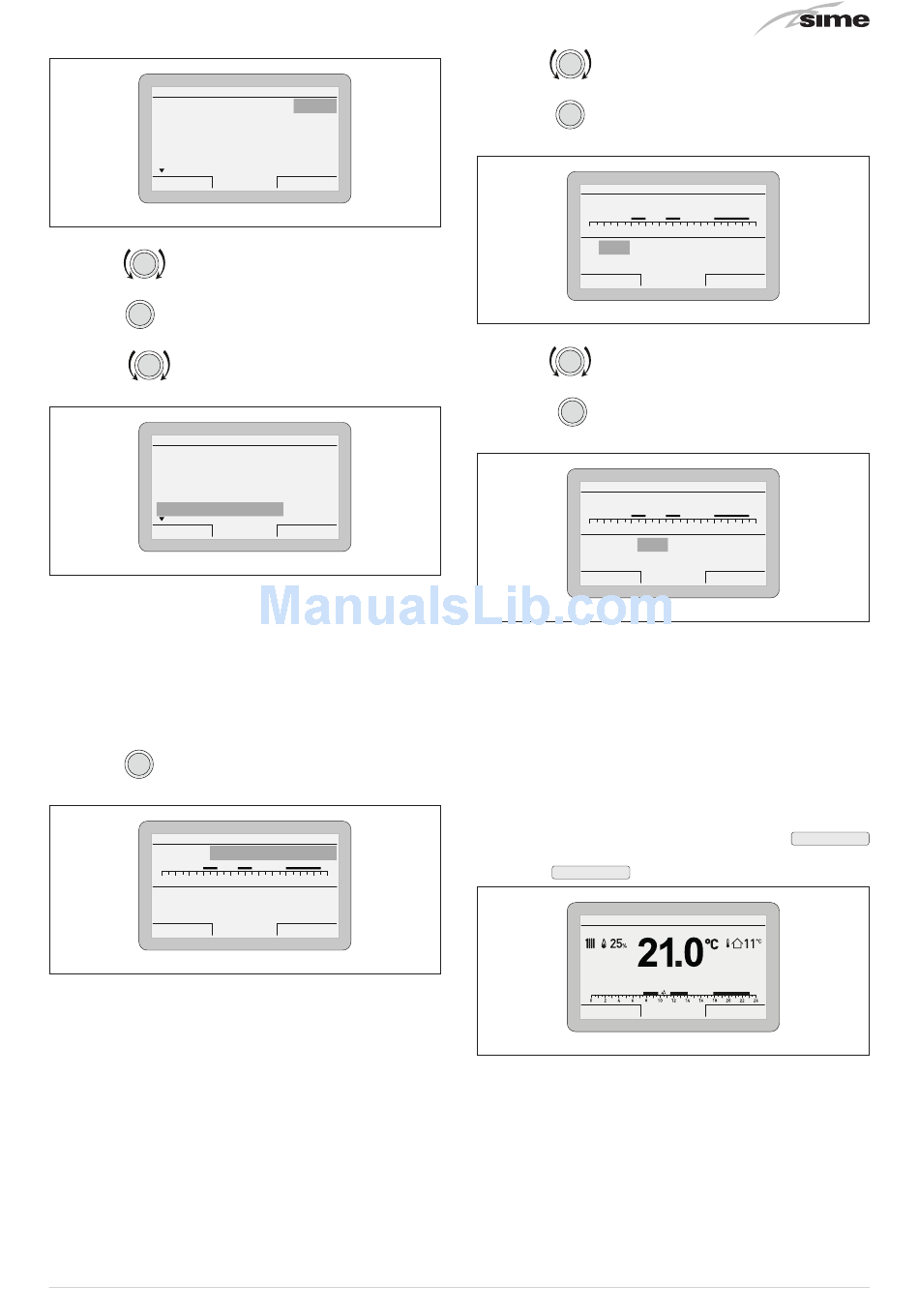

Time Programming

The main control panel (MCP) allows up to four daily time bands
to be managed for the domestic hot water function and the
heating function described below.
During the programmed time band, the boiler works in
COMFORT heating mode, while outside the programmed time
band it works in REDUCED heating mode:
– press the encoder to confirm the "Program. time" and
click
go to the modifiable area
HEATING TIME PROGRAM
Day/s:
0 2 4 6 8
[1] 06:00 - 08:00
[2] 11:00 - 13:00
Esc
Heating
MAN
20.0°C
18.0°C
20.0°C
[...]
Back
Fig. 16
Heating
MAN
20.0°C
18.0°C
20.0°C
[...]
Back
Fig. 17
MONDAY
10 12 14 16 18 20 22 24
[3] -
[4] 18:00 - 23:00
Back
Fig. 18
– turn the encoder to select the "Single days" or the
"Group of days"
– press the click encoder to confirm the required selection
and access the first "Adjustable time" [1]
HEATING TIME PROGRAM
Day/s:
0 2 4 6 8
[1] 06:00 - 08:00
[2] 11:00 - 13:00
Cancel
– turn the encoder to modify the "Data/value" on the
basis of the required time
– press the click encoder to confirm the modification and
move to the next "Data/value"
HEATING TIME PROGRAM
Day/s:
0 2 4 6 8
[1] 06:00 - 08:00
[2] 11:00 - 13:00
Cancel
– continue in this way until all the necessary modifications have
been made for each day of the week or group of days.
NOTE : The user must work in a CIRCULAR manner, meaning
ALWAYS MOVING FORWARDS, even if a mistake is made.
m
CAUTION
If NO time band is required, set the start and stop
times of that band to the same value (e.g. [3] 14:00-
14:00).
– Once the modification has been made, press the
button to go back to "Single days" or "Group of days"
– press the button to go back to the "Main screen" .
Esc
Zone
Hot water 48°C eco
Winter automatic - set 20.0°C until 7.30
Menu
MONDAY
10 12 14 16 18 20 22 24
[3] -
[4] 18:00 - 23:00
Confirm
Fig. 19
MONDAY
10 12 14 16 18 20 22 24
[3] -
[4] 18:00 - 23:00
Confirm
Fig. 20
Confirm
Th 21 Sept 2014 10:30
Mode
Fig. 21
