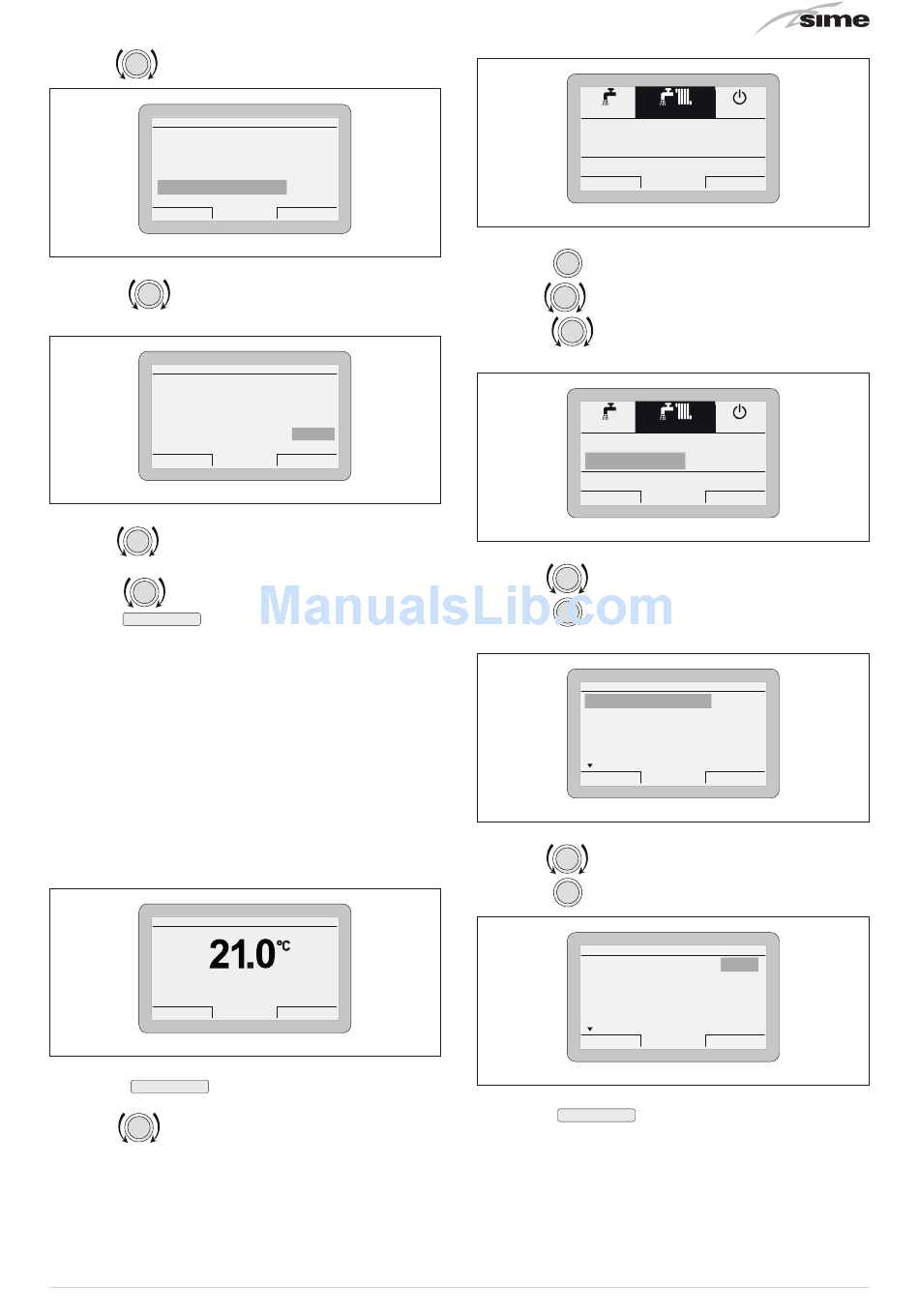

– turn the encoder to select the "Climatic curve " row
Req. from ext. TA
Room probe run
Room probe modul.
Ext. probe modul.
Weather comp.curve
ˆ
Esc
– Press the encoder to confirm the highlighted "Row"
and access the modifiable parameters.
Req. from ext. TA
Room probe run
Room probe modul.
Ext. probe modul.
Weather comp.curve
ˆ
Esc
– turn the encoder to select the preferred climatic curve
(from 1 to 9) according to the system requirements
– press the encoder to confirm the selection
– press the button to go back to the "Main screen".
Esc
m
CAUTION
The submenu "Hybrid func. status" is read-only.
5.14.2 Chrono-thermostat or air thermostat for the
zone
The chrono-thermostat or air thermostat for the zone must
be connected to terminals AT2 on the boiler control panel (gas
side).
To set the MULTIZONE system configuration, operate the main
control panel as described below.
From the "Main screen" :
Zone
Menu
– Press the button to view the "Function mode"
Mode
selection screen.
– Turn the encoder to select "Winter" mode.
Zone heating
NO
YES
YES
YES
4.0
BACK
Fig. 76
Zone heating
NO
YES
YES
YES
4.0
BACK
Fig. 77
Thu 18 Set 2014 10:30
Off
Mode
Fig. 78
Summer
Hot water
Heating
Holiday function
Esc
– Press the click encoder to confirm and access the "Rows" .
– turn the encoder to select "Heating"
– press the encoder to confirm "Heating" and access the
"Rows"
Summer
Hot water
Heating
Holiday function
Esc
– Turn the encoder to select "Function mode" .
– Press the click encoder to confirm the "Function mode" and
go to the modifiable area.
Function Mode
Set AUTO comfort
Set AUTO reduced
Set MAN
Program. Time
Esc
– Turn the encoder to select "OFF" .
– Press the click encoder to confirm.
Function Mode
Set AUTO comfort
Set AUTO reduced
Set MAN
Program. Time
Esc
– Press the button to complete the modification
Esc
and return to the "Main screen" .
Off
Winter
MAN 40°C
MAN 20.0°C
OFF
Back
Fig. 79
Winter Off
MAN 40°C
MAN 20.0°C
OFF
Back
Fig. 80
Heating
MAN
20.0°C
18.0°C
20.0°C
[...]
Back
Fig. 81
Heating
MAN
20.0°C
18.0°C
20.0°C
[...]
Back
Fig. 82
