ulTrasound beaM ProfIles

Ultrasound
Beam Profiles
(For Dynatron Solaris Plus 708, and 709 users only. The Dynatron Solaris Plus 705, 706, and 707 do not offer Ultrasound).

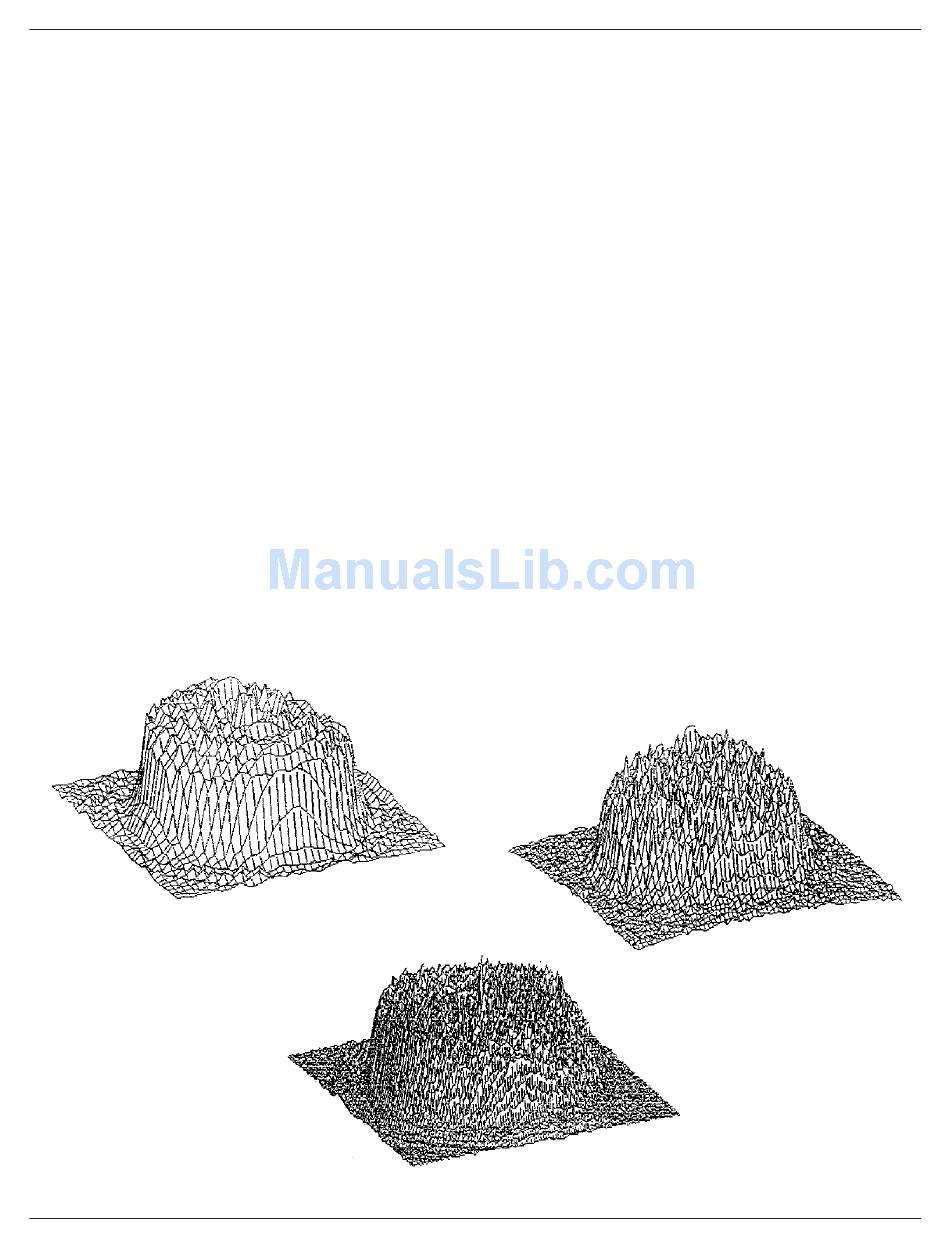

The following diagrams show the typical spatial distribution of the radiated field for each size of Dynatron Solaris soundhead.
This applies to the radiation emitted into the equivalent of an infinite medium of distilled, degassed water at 30˚ C and with
line voltage variations in the range of ±10 percent of the rated value.
10 cm Head. Near Field
2
1MHz
2 MHz
3 MHz
DYNATRON SOLARIS PLUS SERIES | SERVICE MANUAL REV. 6 | AUGUST 29, 2017 89
®
