dynaTron TrI-WaVe™ lIghT ModalITy InforMaTIon
Dynatron Tri-Wave
Light Source .......................34 Super Luminous Diodes
Wavelengths .....................20 Infrared Diodes – 850nm
Power Output ........................ Max 1000mW (+/- 20%)
Treatment Area........................................................6 cm
Thermal Threshold ............................ 104°F in 2.7 min.
Dynatron Tri-Wave
The Dynatron Tri-Wave™ light pad consists of two 5" x 7" treatment pads connected with a 24" cable between them and
a 72" bifurcated cable connecting the pads to the Dynatron Solaris Plus controlling console. Dual pads allow for greater
coverage of a joint, treatment of two separate areas simultaneously, and the ability to treat large areas of the body when placed
side-by-side.
Dynatron Tri-Wave
Light Source .................................................................................. 176 Super Luminous Diodes (per pad)
Wavelengths ........ 112 Infrared Diodes – 850nm; 40 Red Diodes – 624nm; 24 Blue Diodes – 464nm
Power Output ....................................................................................................... Max 5160mW (+/- 20%)
Treatment area .................................................................................................................................... 352cm
Thermal Threshold ........................................................................................................... 104°F in 3.9 min.
DYNATRON SOLARIS PLUS SERIES | SERVICE MANUAL REV. 6
®

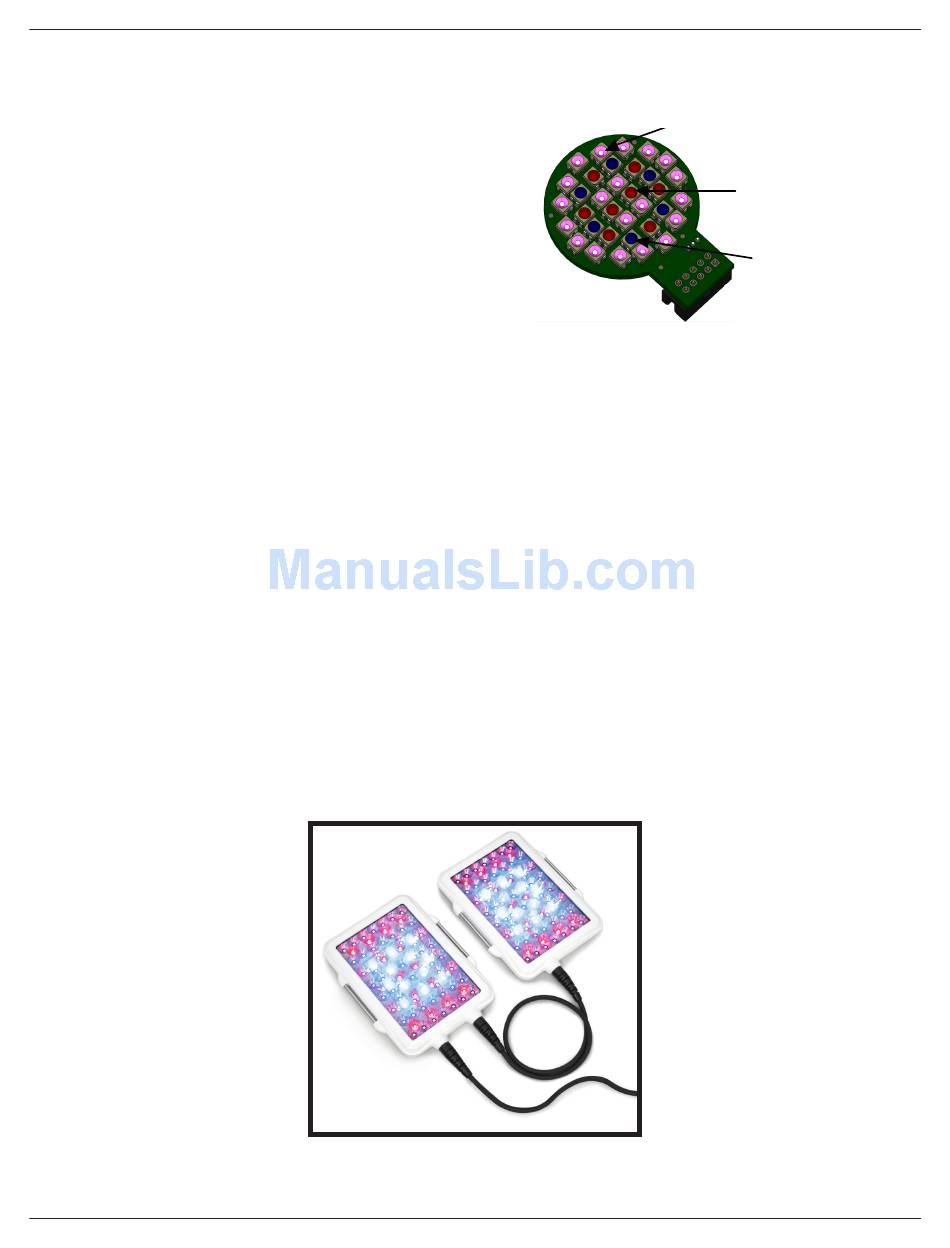

Light Probe Specifications
™
8 Red Diodes – 624nm
6 Blue Diodes – 464nm
Light Pad
™
Light Pad Specifications
™
Tri-Wave Light Pad - two 5" x 7" pads
20 Infrared Diodes 850nm
2
| AUGUST 29, 2017
8 Red Diodes 624nm
6 Blue Diodes 464nm
