A. General Purpose:
To assist in lifting the patient from a sitting position in a wheelchair to a standing position.
NOT INTENDED AS A PATIENT MOBILITY OR TRANSPORT DEVICE.
B. Setup Instructions:
1. Unpack and set the table in the desired location.
2. Check the table to ensure that all parts are included in the shipment. Inspect the power cord, plug, controls, frame
and upholstery for any damage.
3. The chest pad is shipped in an inverted down position below work surface to avoid shipping damage. Before use,
remove both sliding bars and reconfigure and re-insert chest pad back into the unit so that the chest pad is centrally
located as shown below in figure 1.
4. If any part is missing (see illustration drawing and parts list on page 5) or damaged, please call Hausmann Customer
Service.
5. Provide ample clearance around, above and below the table.
6. For safety and stability securely lock all four casters before using the product.
7. The unit is shipped with a 3-pole male plug, to maintain adequate grounding; the unit must be plugged into a 3-pole
receptacle (preferably a hospital grade) that is correctly wired to the building power system.
IU-6175 Rev 2
130 Union St • Northvale NJ 07647 USA • Tel: (201) 767-0255 • Fax: (201) 767-1369 •
Installation/Operation Instructions

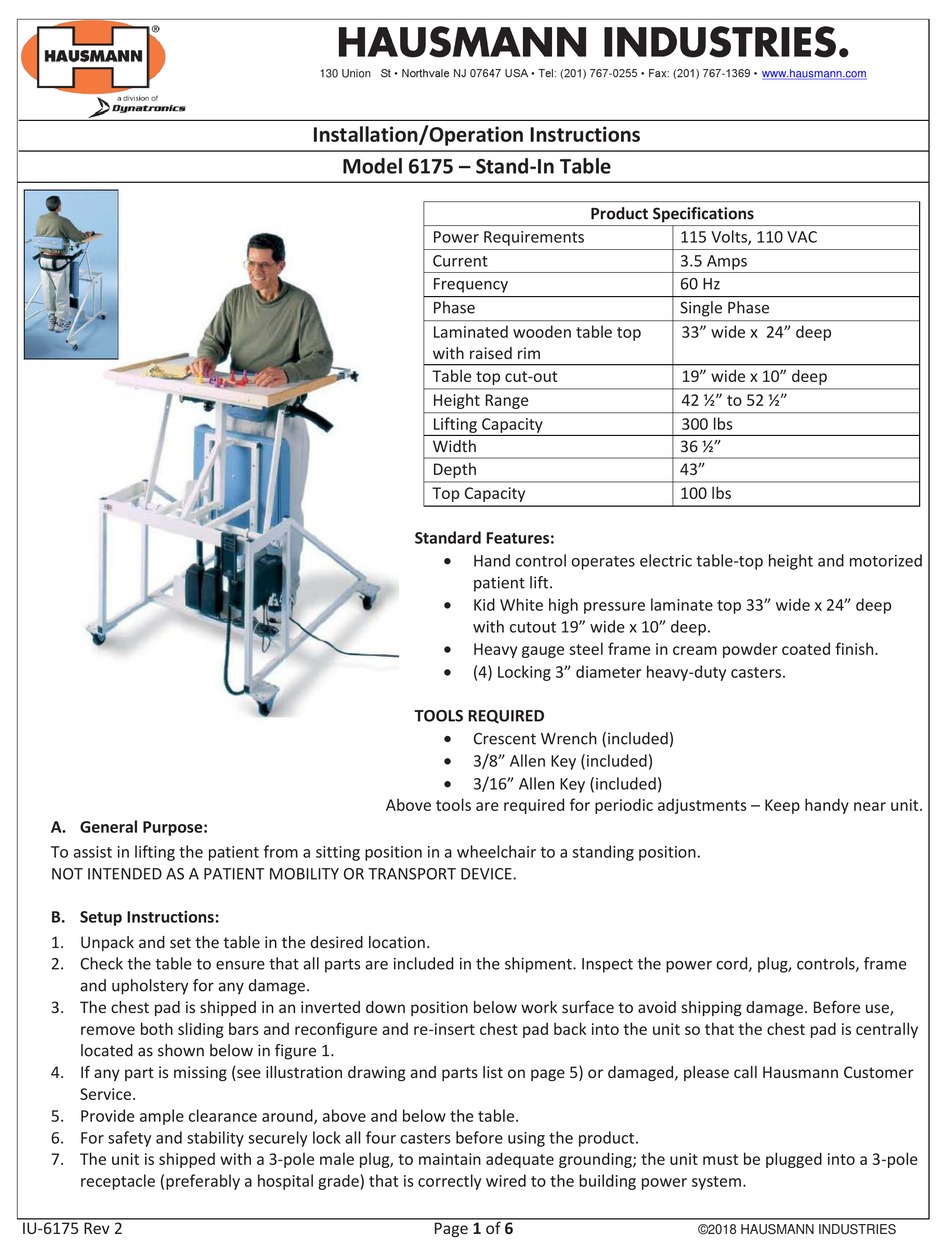

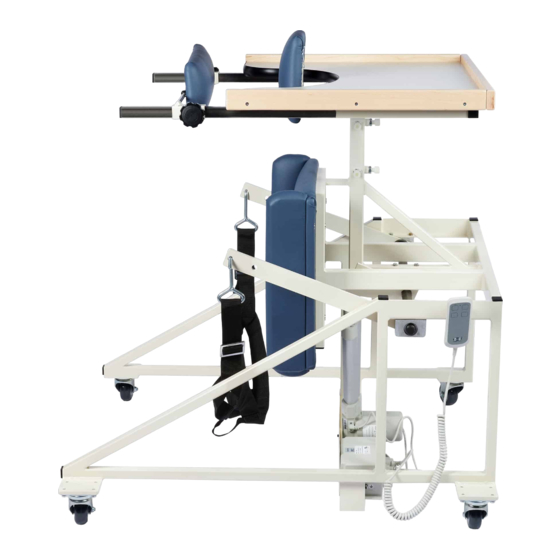

Model 6175 – Stand-In Table
Power Requirements
Current
Frequency
Phase
Laminated wooden table top
with raised rim
Table top cut-out
Height Range
Lifting Capacity
Width
Depth
Top Capacity
Standard Features:
Hand control operates electric table-top height and motorized
patient lift.
Kid White high pressure laminate top 33" wide x 24" deep
with cutout 19" wide x 10" deep.
Heavy gauge steel frame in cream powder coated finish.
(4) Locking 3" diameter heavy-duty casters.
TOOLS REQUIRED
Crescent Wrench (included)
3/8" Allen Key (included)
3/16" Allen Key (included)
Above tools are required for periodic adjustments – Keep handy near unit.
Page 1 of 6
www.hausmann.com
Product Specifications
115 Volts, 110 VAC
3.5 Amps
60 Hz
Single Phase
33" wide x 24" deep
19" wide x 10" deep
42 ½" to 52 ½"
300 lbs
36 ½"
43"
100 lbs
©2018 HAUSMANN INDUSTRIES
