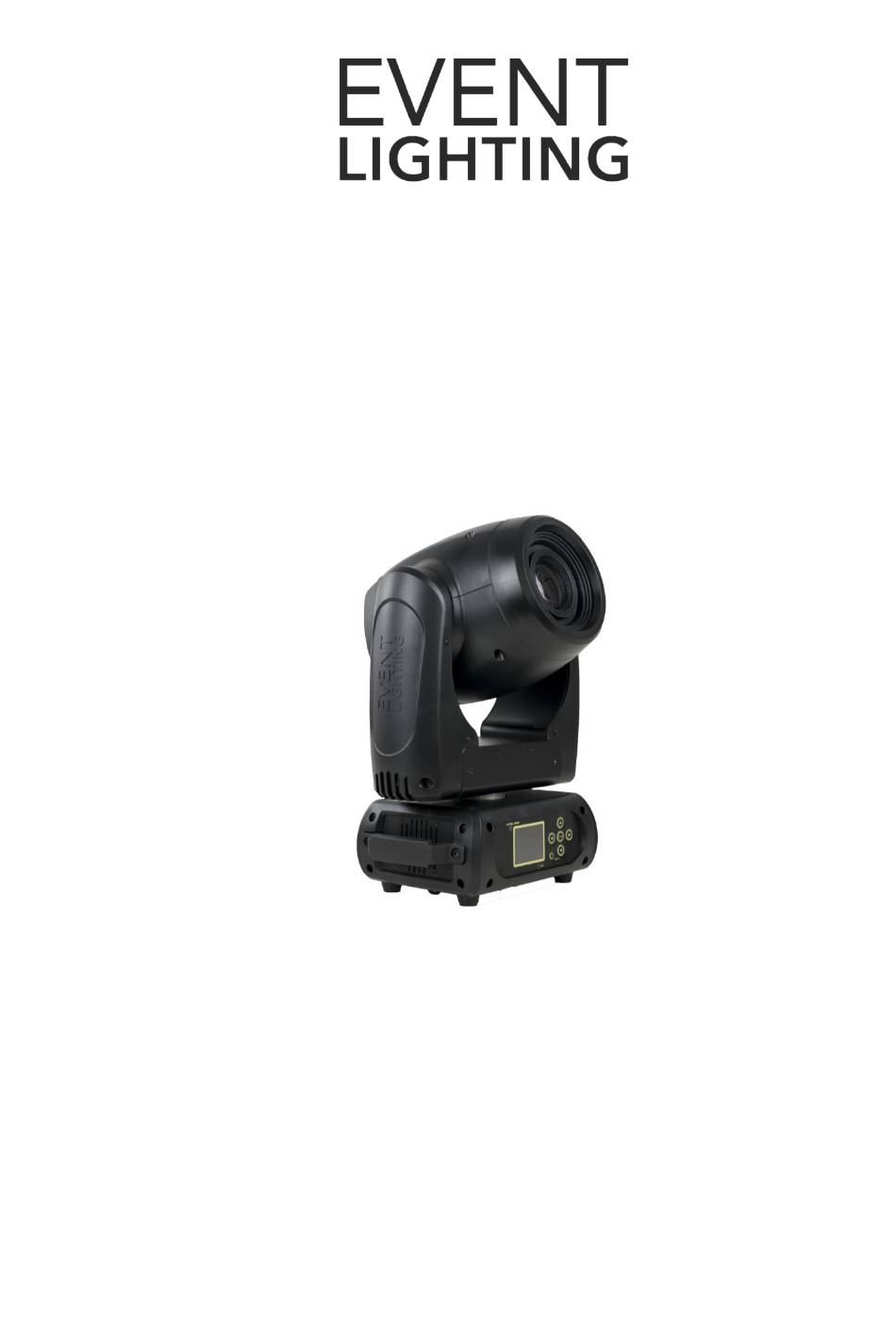

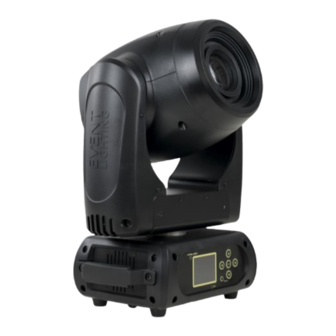

SPOT MOVING HEAD
M1S75W
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V1.2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting M1S75W
Summary of Contents for Event Lighting M1S75W
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
-
Page 2: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 3: Product Appearance, Lux Chart, Dimensions
Product appearance, LUX chart, Dimensions Project lens Head Base 9. Wireless indicator Display 10. Mic Foot stand 11. Left Button Operation button 12. Battery indicator Handle 13. Up button 14. Down button 15. Enter button 16. Right button 9 10 11 12 13 17. -
Page 4: Color Wheel
Color Wheel Open Magenta Orange Sky blue Pink Yellow Green Blue Gobo Wheel Rotating gobo wheel (slot-in-out gobos) www.event-lighting.com.au... -
Page 5: Rotating Gobo Wheel
Rotating gobo wheel Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 www.event-lighting.com.au... -
Page 6: Menu Operation
Menu operation Description of icons in the menu CONNECT LIGHT INFOMATION PROGRAM Menu Default setting shadowed. Mark with ①can be basic reloaded, ② be program reloaded, ③can be private reloaded. DMX Address① DMX address setting Wireless① Wireless Enabled Max Temperature① 80~139℃, 80℃... - Page 7 Brand Show① ON/OFF Show brand or not Key Lock① ON/OFF Key lock on/off Language① En/简/繁/Fr/Sp Language Select Users User Mode① Standard Standard mode Extended Extended mode Basic-8bit Basic mode-8bit Basic-16bit Basic mode-16bit User User program mode Edit User③ Max Channel = XX Edit users mode PAN = CH01 Calibration③...
-
Page 8: Dmx Chart
DMX Chart Channel name function Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine Movement Speed fastest to Slowest Normal Movement Movement With Blackout Function Normal Shutter Functions Pulse-effect Forward Shutter Function Pulse-effect Reverse Random Strobe Normal Shutter Functions Close Strobe Rate (slow to fast) - Page 9 Dimmer Dimmer(Close to Open) Indexed Indexed With Blackout Forward Spin Color Function Reverse Spin Continuous Color Bounce Indexed & Indexed With Blackout & Color Bounce Open Between Open and Red Between Red and Blue Blue Between Blue and Green Green Between Green and Yellow Yellow Between Yellow and Pink...
- Page 10 Pink Between Pink and Sky Blue Sky Blue Between Sky Blue and Orange Orange Between Orange and Magenta Magenta Between Magenta and Open Indexed With Blackout Open Between Open and Red Between Red and Blue Blue Between Blue and Green Green Between Green and Yellow Yellow...
- Page 11 Reverse Spin Continuous Shake Indexed & Indexed With Blackout & Shake Position 1 (Open) Position 2 Position 3 Position 4 Position 5 Position 6 Rot Gobo Position 7 Position 8 Forward Wheel Spin Stop to fastest Reverse Wheel Spin Stop to fastest Continuous Positioning from 0-360 degrees Indexed...
- Page 12 Position 8 Forward Wheel Spin Stop to fastest Reverse Wheel Spin Stop to fastest Continuous Forward Spin Reverse Spin Gobo Rot Forward Animate Rotate Function Forward Animate Rotate With Blackout Reverse Animate Rotate Reverse Animate Rotate With Blackout Continuous Positioning from 0-360 degrees Forward Spin Stop to fastest Reverse Spin...
-
Page 13: More Functions
Reset All Pan & Tilt Reset Color Reset Control Gobo Reset Other Reset Display Off Display On Hibernation The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive instructions from the external controller. For independent control, each fixture must be assigned its unique address control channels. -
Page 14: Technical Specifications
Technical Specifications Input Voltages: 100V~240V AC, 50/60Hz Power Consumption: 160W Light source: advanced 75W white LED module Power Connection: Neutrik® Powercon input and output connection LED life: 60,000 hours Lux: 6400 lumen, 9530 lux on @2.5M at 11°, 4723 lux on @2.5M at 16° Beam angle: 11°...
