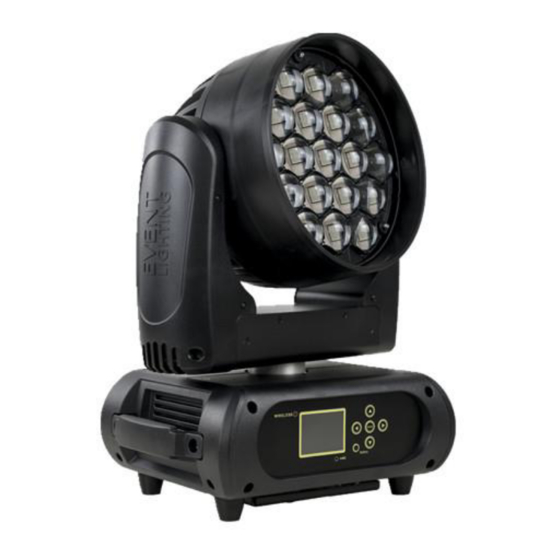

Wash moving head

Advertisement

Quick Links

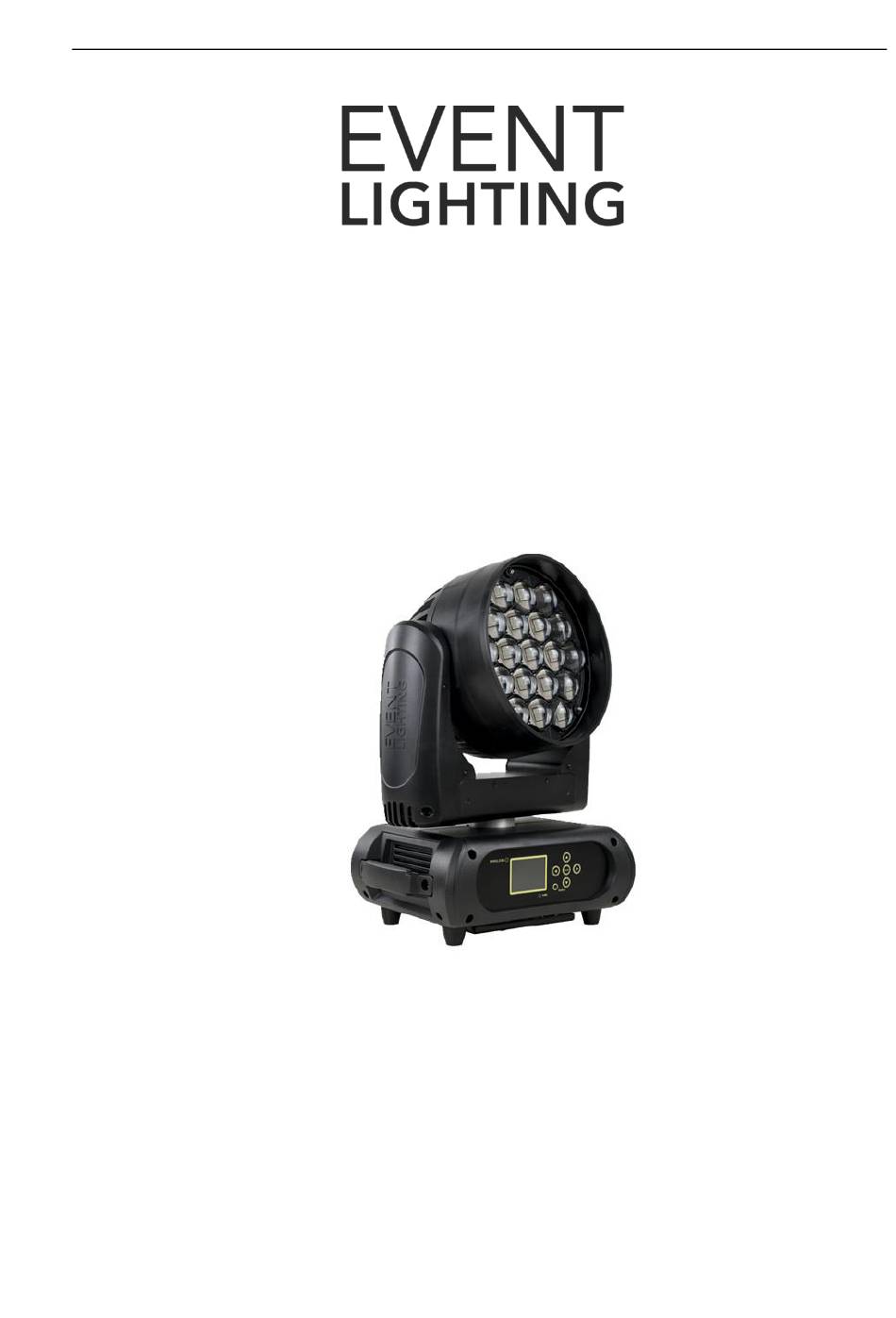

1
WASH MOVING HEAD
M19W15RGBW
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M19W15RGBW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Event Lighting M19W15RGBW

  • Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
  • Page 2: Safety Instructions

    Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •...
  • Page 3: Product Appearance, Lux Chart, Dimensions

    Product appearance, LUX chart, Dimensions Project lens Head Base Display Foot stand Operation button Handle Wireless indicator Left Button Enter Button Down Button Up Button Right Button Fuse Holder 3-pin DMX out 3-pin DMX in 5-pin DMX out 5-pin DMX in Powercon in Powercon out Fuse...
  • Page 4: Menu Operation

    Menu operation Description of icons in the menu CONNECT LIGHT INFOMATION PROGRAM Menu Default setting shadowed. Mark with ①can be basic reloaded, ② be program reloaded, ③can be private reloaded. DMX Address① DMX address setting Wireless① Wireless Enabled Max Temperature① 80~139℃, 90℃...
  • Page 5 Brand Show① ON/OFF Show brand or not Key Lock① ON/OFF Key lock on/off Language① En/简/繁/Fr/Sp Language Select Users User Mode① Standard Standard mode Extended Extended mode Basic-8bit Basic mode-8bit Basic-16bit Basic mode-16bit User User program mode Edit User③ Max Channel = XX Edit users mode PAN = CH01 Calibration③...
  • Page 6: Dmx Chart

    DMX Chart Channel name function Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine Movement fastest to Slowest Speed Normal Movement Movement With Blackout Function Normal Shutter Functions Pulse-effect Forward Shutter Pulse-effect Reverse Function Random Strobe Normal Shutter Functions Close Strobe Rate (slow to fast)
  • Page 7 On Function CTC Function Forward Spin Virtual Color Reverse Spin Function Continuous Color Bounce CTC Function Colour Temperature Correction 2000K->2700K White 3200K White 4200K White 5600K White 8000K Forward Spin Rainbow Effect (Slow->Fast) Reverse Spin Rainbow Effect (Slow->Fast) Virtual Continuous & Color Bounce Color1 Black Green...
  • Page 8 White-All White 0->100% Zoom small angle -> Big angle No Function Foreground Foreground Color No Function Background Background color On Pattern Pattern Pattern control Pattern Effect 1~14 Pattern control Picture Effect 1-250 Pattern Speed Pattern Effect Slow-> Fast Red Pixel Led Off Led On Green Pixel...
  • Page 9: More Functions

    The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive instructions from the external controller. For independent control, each fixture must be assigned its unique address control channels. For example, this device has four channel modes: 19/98/18/20, if we set the mode at standard 20 channels mode, and there are several models need to be independently controlled, we just simply address first fixture at 1, and second fixture at 21, third one at 41, etc.
  • Page 10: Technical Specifications

    Technical Specifications Input Voltages: 100V~240V AC, 50/60Hz Power Consumption: 316W Light source: 19 pcs Osram 15W RGBW LED Power Connection: Neutrik® Powercon input and output connection LED life: 60,000 hours Lux: 8,000 lumen, 21,880lux RGBW full on @3M at 6°, 1,600lux RGBW full on @3M at 60° Beam angle: 6°...
