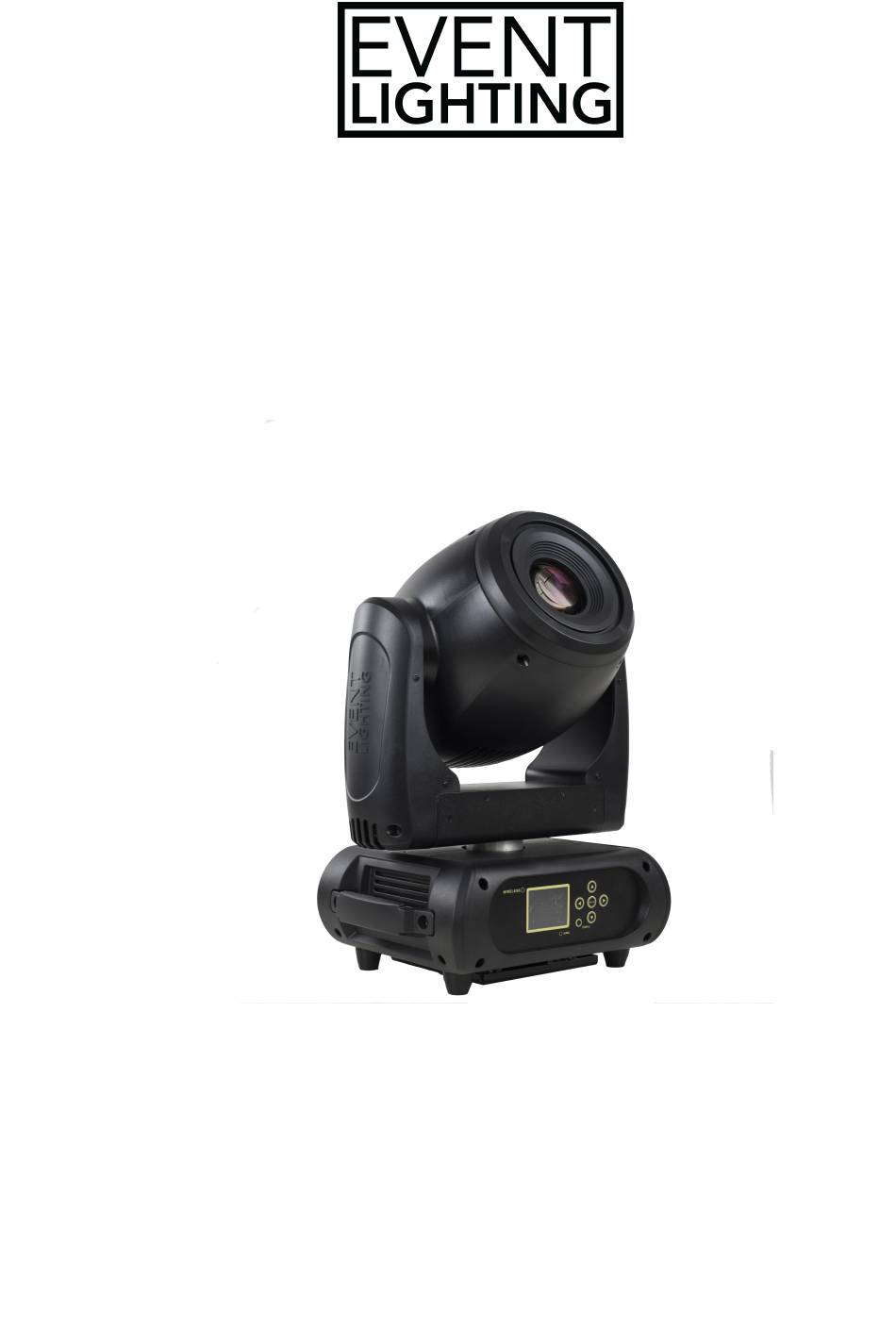

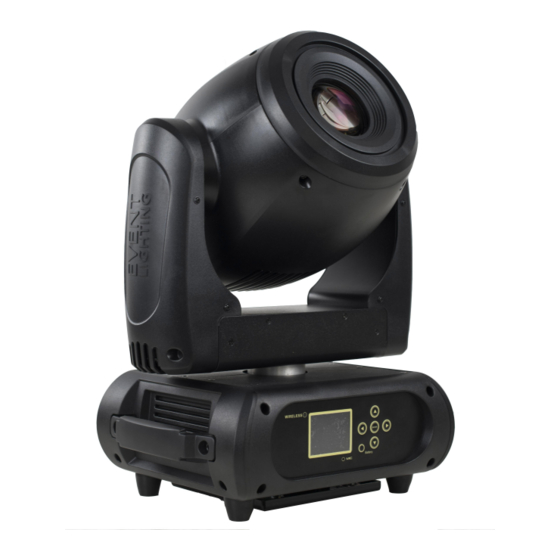

SPOT MOVING HEAD
M1S190W
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting M1S190W
Summary of Contents for Event Lighting M1S190W
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
-
Page 2: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 3: Product Appearance, Lux Chart, Dimensions
Product appearance, LUX chart, Dimensions Project lens Head Base Display Foot stand Operation button Handle Wireless indicator 10. Mic 11. Left button 12. Battery indicator 13. Up button 14. Down button 15. Enter button 16. Right button 17. 3-pin DMX in 18. - Page 4 www.event-lighting.com.au...
-
Page 5: Colour Wheel
Colour wheel Open Magenta Orange Sky blue Pink Yellow Green Blue Gobo wheel Static gobo wheel Rotating gobo wheel (slot-in-out gobos) www.event-lighting.com.au... -
Page 6: Rotating Gobo Wheel
Rotating gobo wheel Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 www.event-lighting.com.au... -
Page 7: Static Gobo Wheel
Static gobo wheel Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 www.event-lighting.com.au... -
Page 8: Menu Operation
Menu operation Description of icons in the menu CONNECT LIGHT INFOMATION PROGRAM Menu Default setting shadowed. Mark with ①can be basic reloaded, ② be program reloaded, ③can be private reloaded. DMX Address① DMX address setting Wireless① Wireless Enabled Lamp temperature 80~139℃... - Page 9 Language③ En/Fr/Sp/简/繁 Language Select Theater Mode ON/OFF Theater Mode Fixture Set 600Hz---4000KHz Frequency Frequency (1200Hz) Standard Standard mode Extended Extended mode User Mode① Users User User program mode Max Channel = XX Edit User③ PAN = CH01 Edit users mode -Password- =xxx Password: 050...
-
Page 10: Dmx Chart
DMX Chart Channel name function Ex Ba1 Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine Movement Fastest to Slowest Speed Normal Movement Movement With Blackout Function Normal Shutter Functions Pulse-effect Forward Shutter Pulse-effect Reverse Function Random Strobe Normal Shutter Functions Close... - Page 11 Function Indexed With Blackout Forward Spin Reverse Spin Continuous Color Bounce Indexed & Indexed with Blackout & Color Bounce Position 1 (Open) Position 2 ~ Position 18 Forward Spin Color Stop to fastest Reverse Spin Stop to fastest Continuous Positioning from 0-360 degrees Indexed Position 1 (Open) Position 2 ~ Position 18...
- Page 12 Positioning from 0-360 degrees Indexed Position 1 (Open) Position 2 ~ Position 8 Indexed with Blackout Position 1 (Open) Position 2 ~ Position 8 Rot Gobo Indexed With Shake Position 2 Position 3 ~ Position 8 Forward Wheel Spin Stop to fastest Reverse Wheel Spin Stop to fastest Continuous...
- Page 13 Indexed Indexed with Blackout Forward Spin Gobo Reverse Spin Function Continuous Shake Indexed & Indexed with Blackout & Shake Position 1 (Open) Position 2 ~ Position 8 Forward Wheel Spin Fixed Stop to fastest Gobo Reverse Wheel Spin Stop to fastest Continuous Positioning from 0-360 degrees Indexed...
- Page 14 Continuous Focus In to Focus Out Focus Auto Focus Focus In to Focus Out Fine Indexed Pulse Opening with Forward Blackout Iris Pulse Opening with Reverse Blackout Function Pulse Closing with Forward Blackout Pulse Closing with Reverse Blackout Indexed Max. Diameter to Min. Diameter Iris Pulse Opening &...
-
Page 15: More Functions
More functions RDM. RDM stands for “Remote Device Management”, with this function, users can realize remote control of the device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as temperature, power consumption, fan speed. Etc. Every single device has a unique RDM code programmed at manufacture to distinguish from each other. -
Page 16: Warranty
- Dimension: 343 x 250 x 456 mm - Net Weight: 14 kg - Rigging: 2pcs Omega Brackets with 1/4-turn Quick Locks MISC - Road case: MCASE2LS WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au. www.event-lighting.com.au...
