M1H200W

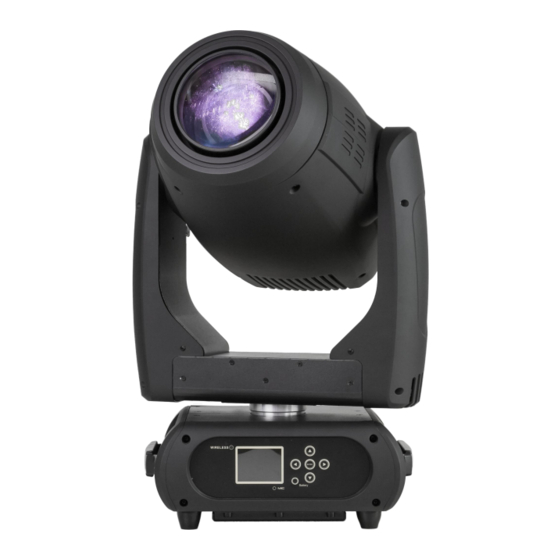

Hybrid Moving Head with CMY, CTO and Zoom

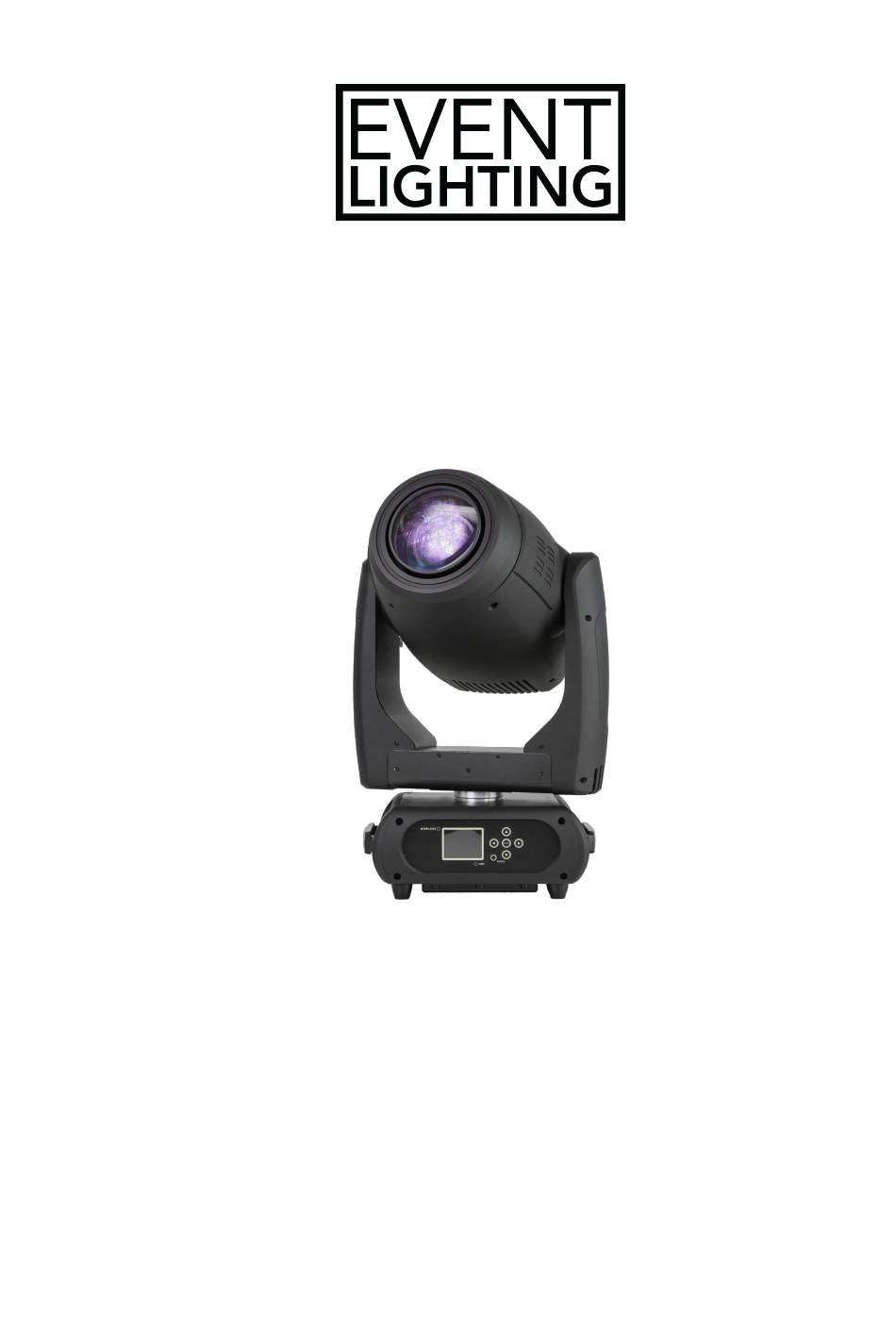

USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting M1H200W
Summary of Contents for Event Lighting M1H200W
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
-
Page 2: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 3: Product Appearance, Lux Chart, Dimensions
Product appearance, LUX chart, Dimensions Project lens Head Base Display Foot stand Operation button Handle Wireless indicator 10. Mic 11. Left button 12. Battery indicator 13. Up button 14. Down button 15. Enter button 16. Right button 17. 3-pin DMX in 18. - Page 4 Lux Chart www.event-lighting.com.au...
-
Page 5: Colour Wheel
Colour wheel Open Magenta Orange Sky blue Pink Yellow Green Blue www.event-lighting.com.au... -
Page 6: Rotating Gobo Wheel
Rotating gobo wheel Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 www.event-lighting.com.au... -
Page 7: Static Gobo Wheel
Static gobo wheel Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 www.event-lighting.com.au... -
Page 8: Menu Operation
Menu operation Description of icons in the menu CONNECT LIGHT INFOMATION PROGRAM Menu Default setting shadowed. Mark with ① can be basic reloaded, ② be program reloaded, ③ can be private reloaded. DMX Address① DMX address setting Wireless① Wireless Enabled Turn On / Off Turn On the lamp ON/OFF... - Page 9 Brand Show ON/OFF Show brand or not ① Key Lock ON/OFF Key lock on/off ① Language En/简/繁/Fr/Sp Language Select ③ Users User Mode① Standard Standard mode Extended Extended mode Basic-8bit Basic-8bit mode Basic-16bit Basic-16bit mode User User program mode Edit User③ Max Channel = XX Edit users mode PAN = CH01...
-
Page 10: Dmx Chart
DMX Chart Channel name function Min DMX Max DMX Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine Movment fastest to Slowest Speed Normal Movment Movement With Backout Function Normal Shutter Functions Pulse-effect Forward Shutter Pulse-effect Reverse Function Random Strobe Normal Shutter Functions... - Page 11 Random strobe effect slow to fast No function (shutter open) Dimmer Dimmer(Close to Open) Indexed Indexed With BackOut Forward Spin Color Reverse Spin Function Continuous Color Bounce Indexed & Indexed With BackOut&Color Bounce Position 1 (Open) Position 2 Position 3 Position 4 Position 5 Position 6...
- Page 12 Position 6 Position 7 Position 8 Position 9 Position 10 Position 11 Position 12 Position 13 Position 14 Position 15 Position 16 Position 17 Position 18 Indexed With Backout Position 1 (Open) Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8...
- Page 13 Forward Wheel Spin Stop to fastest Reverse Wheel Spin Stop to fastest Indexed Indexed With BackOut Forward Spin Rot Gobo Reverse Spin Function Continuous Shake Indexed & Indexed With Backout&Shake Position 1 (Open) Position 2 Position 3 Position 4 Position 5 Position 6 Rot Gobo Position 7...
- Page 14 Position 6 Position 7 Position 8 Indexed With Shake Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 Forward Wheel Spin Stop to fastest Reverse Wheel Spin Stop to fastest Continuous Forward Spin Reverse Spin Forward Animate Rotate Gobo Rot Function...
- Page 15 Stop to fastest Reverse Spin Stop to fastest Indexed Indexed With BackOut Forward Spin Gobo Reverse Spin Function Continuous Shake Indexed & Indexed With Backout&Shake Position 1 (Open) Position 2 Position 3 Position 4 Position 5 Position 6 Fixed Gobo Position 7 Position 8 Forward Wheel Spin...
- Page 16 Position 7 Position 8 Indexed With Shake Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 Forward Wheel Spin Stop to fastest Reverse Wheel Spin Stop to fastest Indexed & Indexed With Backout Position 1 (Open) Forward Spin Prism Stop to fastest...
-
Page 17: More Functions
Pulse opening & Pulse closing Pulse Slow to Fast Indexed Pulse opening With Forward Backout Iris Pulse opening With Reverse Backout Pulse closing With Forward Backout Pulse closing With Reverse Backout Normal Reset All Pan&Tilt Reset Color Reset Gobo Reset Control Other Reset Display Off... -
Page 18: Technical Specifications
− IP rating: IP20 − Net Weight: 25 kg − Rigging: 2pcs Omega Brackets with 1/4-turn Quick Locks MISC Road case: MCASE1LS MCASE2VLS WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au. www.event-lighting.com.au...
