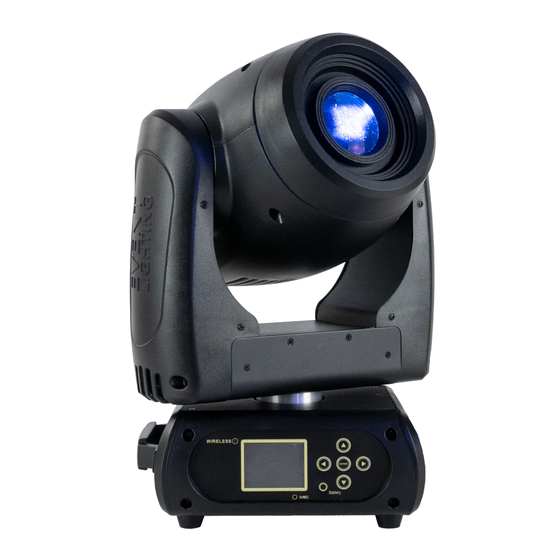

SPOT MOVING HEAD
M1S80W
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V1.0
Advertisement
Table of Contents
Related Manuals for Event Lighting M1S80W
Summary of Contents for Event Lighting M1S80W
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
-
Page 2: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 3: Product Appearance, Lux Chart, Dimensions
Product appearance, LUX chart, Dimensions 1. Project lens 12. Up button 2. Head 13. Enter button 3. Arm 14. Down button 4. Base 15. Right button 5. Display 16. Powercon in 6. Foot stand 17. Fuse 7. Operation button 18. Power switch 8. -
Page 4: Color Wheel
Color Wheel Open Blue Green Yellow Pink Sky blue Orange Magenta www.event-lighting.com.au... -
Page 5: Rotating Gobo Wheel
Gobo Wheel Rotating gobo wheel (slot-in-out gobos) Rotating gobo wheel Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 www.event-lighting.com.au... -
Page 6: Menu Operation
Menu operation Description of icons in the menu CONNECT LIGHT INFOMATION PROGRAM Menu Default setting shadowed. Mark with ① can be basic reloaded, ② be program reloaded, ③ can be private reloaded. DMX Address ① DMX address setting Wireless ① Wireless Enabled Lamp off if temperature continuously Max Temperature ①... - Page 7 Standard Standard mode Extended Extended mode User Mode ① Users User User program mode Max Channel = XX Edit User ③ PAN = CH01 Edit users mode -Password- =xxx Password: 050 Calibration ③ =xxx Calibrate channel value Name Name Rdm Mode RDM Mode Fixture ID ③...
-
Page 8: Dmx Chart
DMX Chart Channel Name Function Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine Movement Speed fastest to Slowest Normal Movement Movement With Blackout Function Normal Shutter Functions Pulse-effect Forward Shutter Function Pulse-effect Reverse Random Strobe Normal Shutter Functions Close Strobe Rate (slow to fast) - Page 9 Indexed Indexed With Blackout Forward Spin Color Function Reverse Spin Continuous Color Bounce Indexed & Indexed With Blackout & Color Bounce Open Between Open and Red Between Red and Blue Blue Between Blue and Green Green Between Green and Yellow Yellow Between Yellow and Pink Color...
- Page 10 Between Sky Blue and Orange Orange Between Orange and Magenta Magenta Between Magenta and Open Indexed With Blackout Position 1 (Open) Position 2 ~ Position 18 Indexed With Bounce Position 1 Position 2 ~ Position 9 Forward Wheel Spin Stop to fastest Reverse Wheel Spin Stop to fastest Indexed...
- Page 11 Position 1 (Open) Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 Position 1 (Open) Indexed With Shake Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 Forward Wheel Spin Stop Slow to Fast Reverse Wheel Spin Stop to fastest...
-
Page 12: More Functions
Prism Rot Prism Rot Forward Spin (Slow->Fast) Stop Prism Rot Reverse Spin (Slow->Fast) Focus Focus In to Focus Out Normal Reset All Pan & Tilt Reset Color Reset Gobo Reset Control Other Reset Display Off Display On Hibernation The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive instructions from the external controller. -
Page 13: Technical Specifications
Cooling: Multi Sensor Thermostat Controlled Variable Speed Fan IP rating: IP20 Dimension: 299 x 234 x 413 mm Net Weight: 10 kg Rigging: 1pc Omega Brackets with 1/4-turn Quick Locks WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au. www.event-lighting.com.au...
