Printronix T5000e Series Module Manual page 31

Attach The Power/Data Cable To The Validator

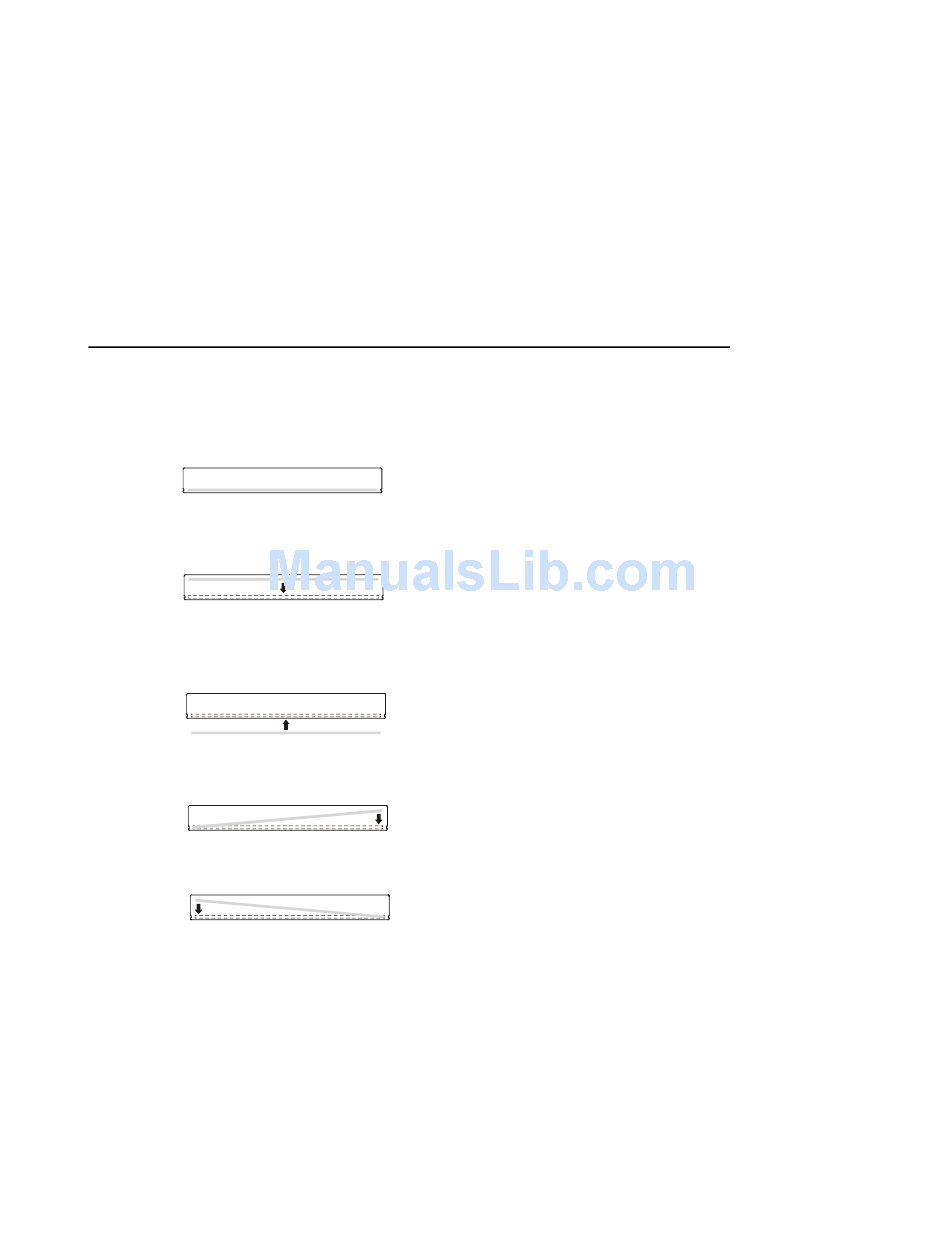

Correct alignment of the
scanning beam. The beam lines
up with the end notches and is
parallel to the long edge of the
tear bar.
Tighten the top left screw to
move the scanning beam
downward. If the screw is
already tight, loosen both bottom
screws to lower the beam.
Tighten both bottom screws to
move the scanning beam
upward. If they are already tight,
loosen the top left screw to move
the beam upward.
Loosen the bottom right screw to
rotate the scanning beam
clockwise. If it is already loose,
tighten the bottom left screw.
Loosen the bottom left screw to
rotate the scanning beam
counterclockwise. If it is already
loose, tighten the bottom right
screw.
