Attach The Power/Data Cable To The Validator
If your printer is configured for Peel-Off Media Handling mode (use
of optional internal rewinder), you may need to align the beam
further behind the notches (0.20 to 0.30 inches [5.08 mm to
7.62 mm] from the front edge of the tear bar) so that the peeled
label remains on the tear bar and the trailing edge of the last bar
code can still pass completely under the scanning beam. See
Figure 13.
0.30 inches
7.62 mm

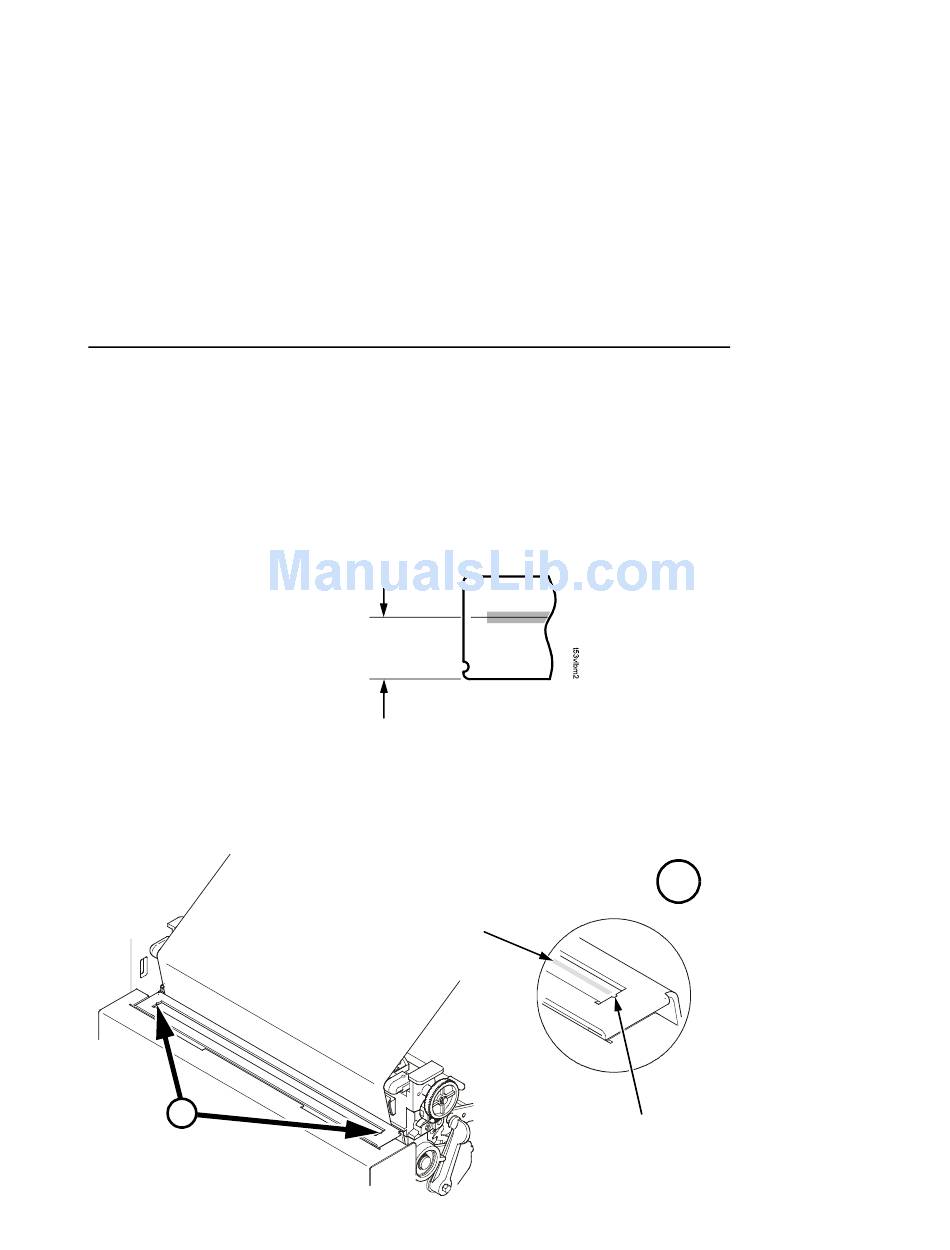

Figure 13. Aligning the Scanning Beam – Peel-Off Media Handling Mode
If your printer has a cutter installed, align the beam with the notches
at each side of the opening on the hinged upper lid, as shown in
Detail A of Figure 14.
A
Scanning Beam
A
Notch in Tear Bar/
Cutter
Figure 14. Aligning the Scanning Beam – Cutter Installed
