Chapter 1
Installation
Long Connector
(To Validator)

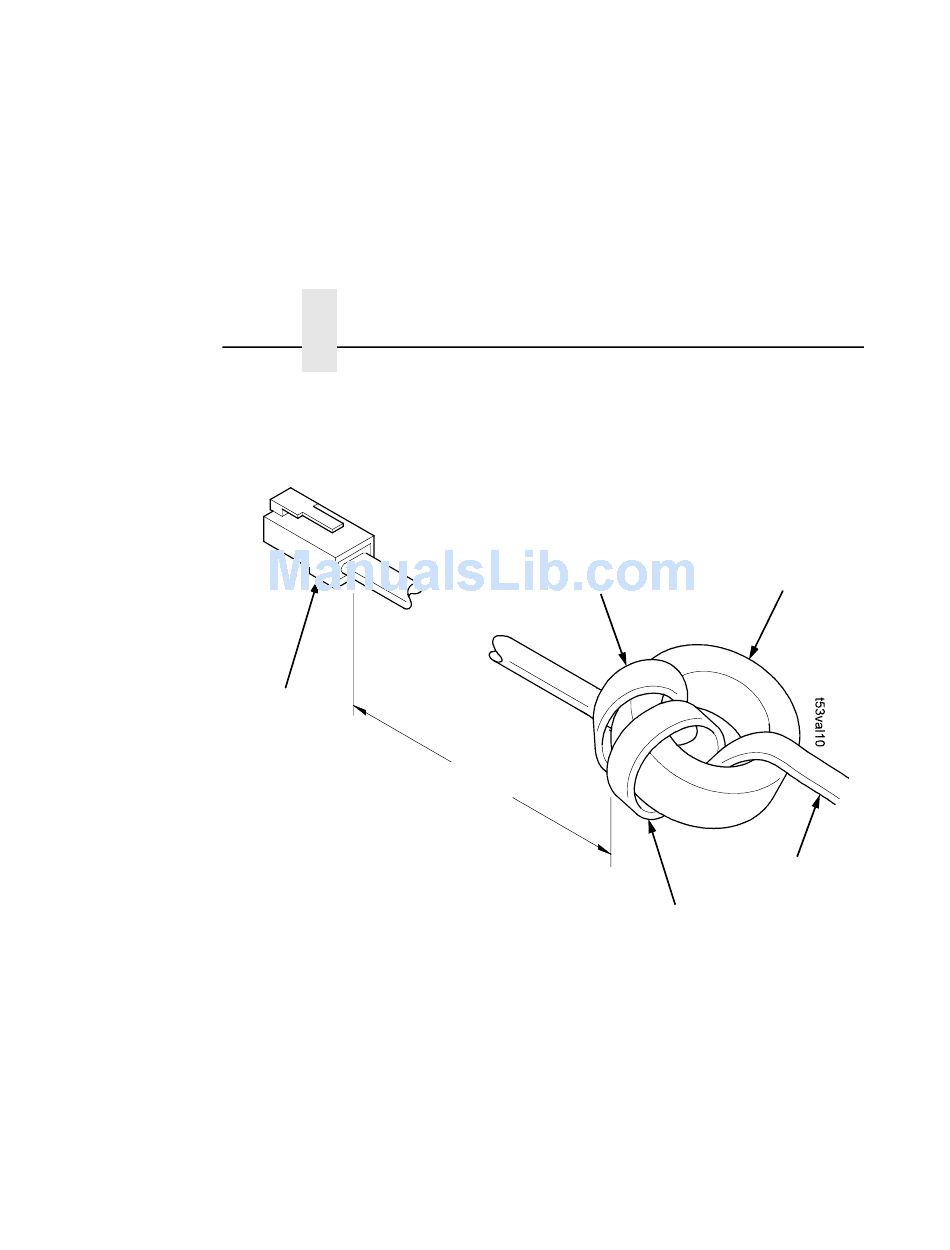

Figure 4. Wrapping the Power/Data Cable Around the Ferrite
4. Using the end of the power/data cable with the short connector,
insert the cable through the ferrite. (Figure 4.)
5. Wrap the power/data cable around the ferrite twice.
6. Adjust the position of the ferrite so that the length from the
ferrite to the long connector is 20 ± 0.5 in
18
Power/Data Cable
First Wrap
20.0 ± 0.5
inches
Power/Data Cable
Ferrite
Short Connector
(To Controller Board)
Second Wrap
.
ches
