Long

Connector

Power/Data Cable

(approximately

17 inches exposed)

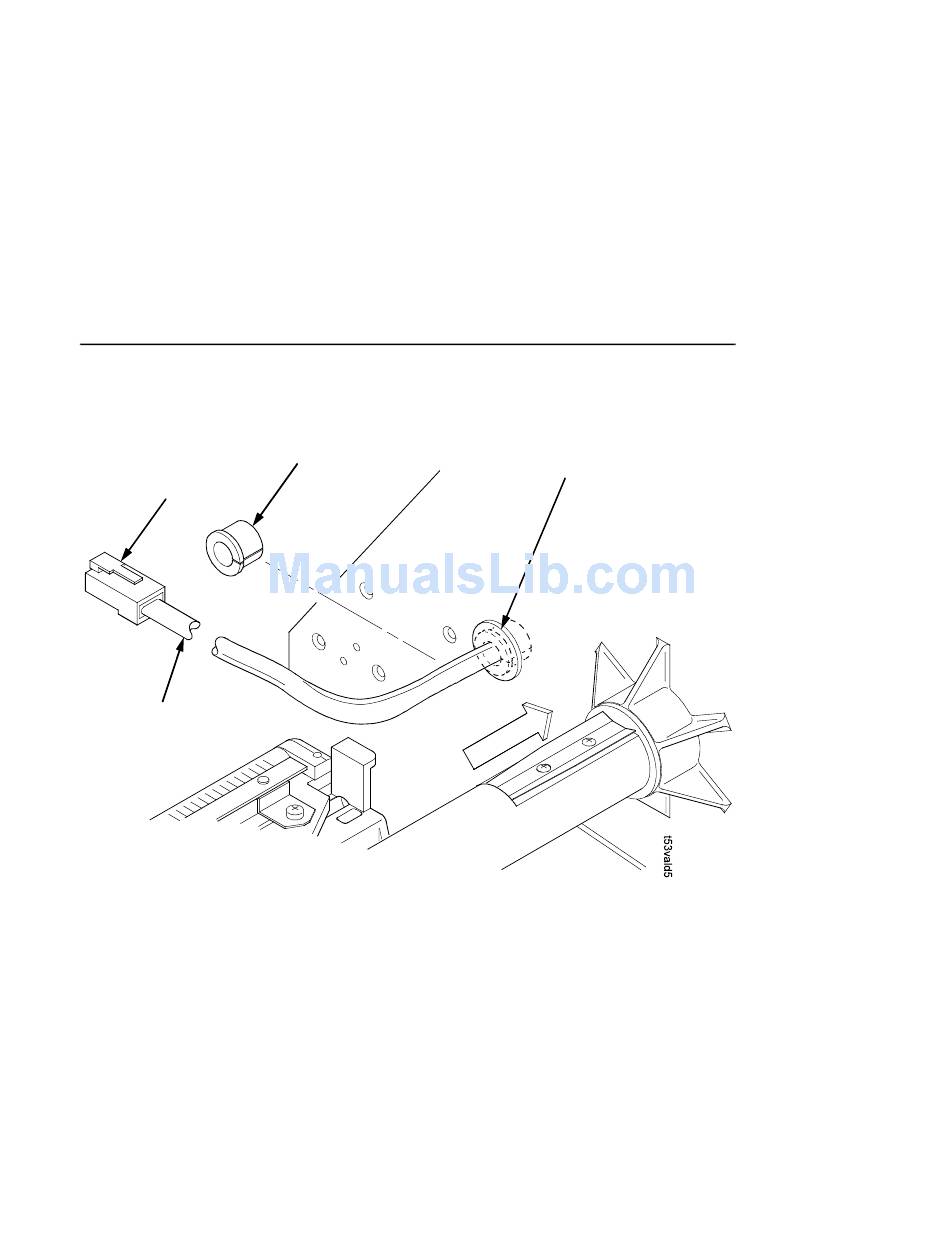

Figure 7. Adding the Grommet to the Power/Data Cable

11. On the media side of the printer, slide the grommet onto the

power/data cable and insert it into the hole in the frame wall.

(Figure 7.)

12. Inspect the power/data cable to ensure approximately

17 inches of cable is exposed from the grommet to connect it to

the validator.

NOTE: You will plug the power/data cable into the validator later.

Grommet

Install The Ferrite

Inserted Grommet

(Media Side)
