Install The Ferrite

IMPORTANT

If your printer has a factory installed validator, then the cable,

ferrite, wire saddle, and grommet have already been installed.

Go to "Install The Brackets" on page 23.

1. Loosen the two captive screws securing the top of the frame

side cover. (Figure 2.)

2. Tilt the frame side cover back from the top and lift it until the

tabs along the lower edge disengage from the slots in the

printer frame.

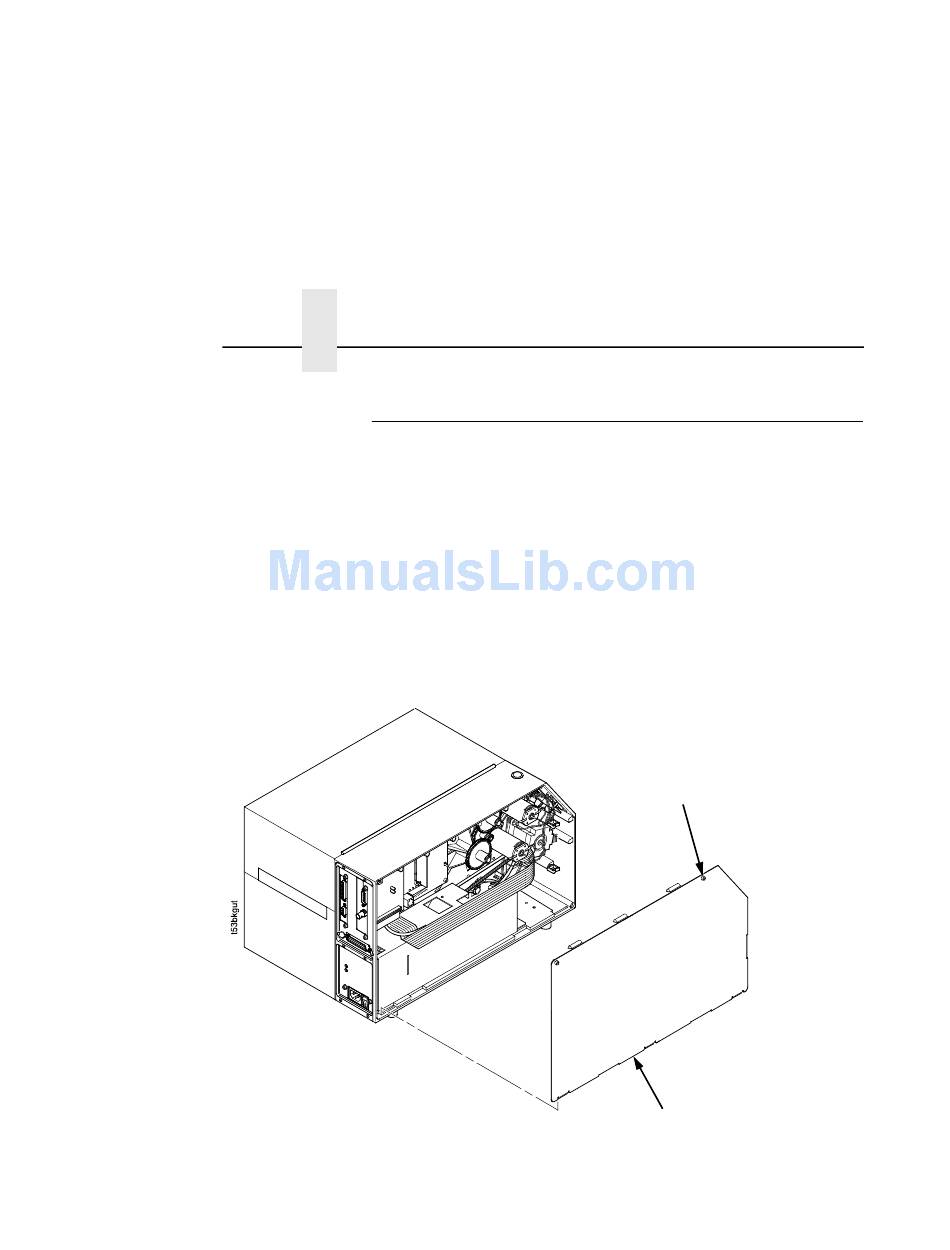

Figure 2. Removing the Frame Side Cover

Captive Screw (2)

Frame Side Cover
