DP master project planning the with MOVIDRIVE® GSD file
5.2.2 GSD file for PROFIBUS DP-V1
Use the GSD file SEWA6003.GSD from the "DP-V1" directory if you want to use the
parameter setting options of DP-V1 in addition to the standard PROFIBUS DP
communication to control the drive inverter.
This GSD file corresponds to GSD revision 3. If you use older, non-DP-V1-capable
PROFIBUS options, a connection is not established between the DP-V1 master and
DFP21B. In this case, the BUS FAULT LED of DFP21B remains switched on after the
DP-V1 master has started. The DP V1 master will indicate that the connection cannot
be established.
So that the GSD files are easy to identify, they are assigned the name for PROFIBUS-
DP-V1 and displayed in a special subdirectory in the project planning software for the

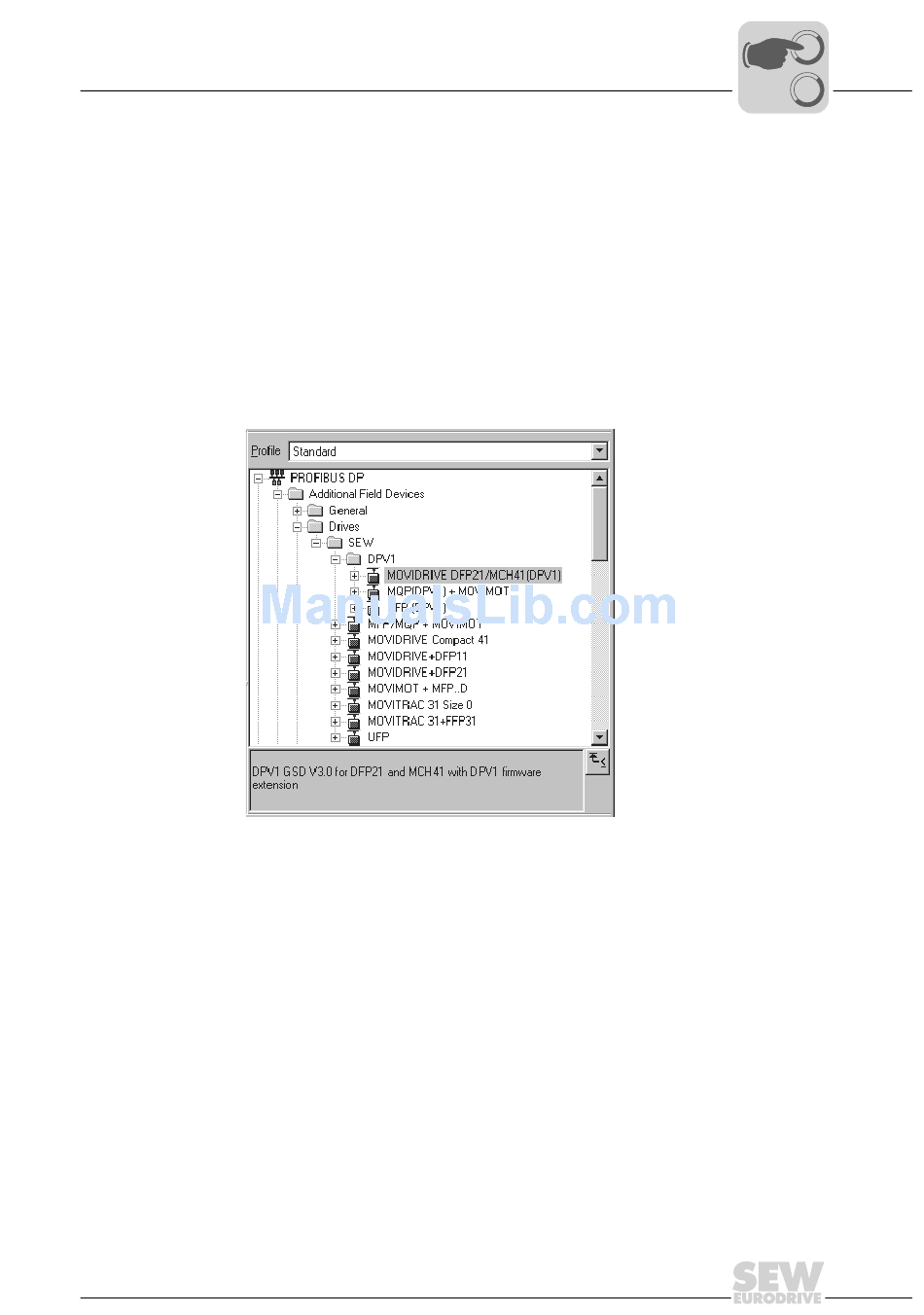

DP-V1 master (see following screenshot).
Manual – DFP21B PROFIBUSDP-V1 Fieldbus Interface
