Chapter 1
Threading The Label Roll
19. Align the inside edge of the media with the inside edge of the peel bar.
20. Thread the leader over the peel bar, then between the lower print roller
and the air jet.
21. Follow the ribbon guide arrows from the printhead, around the rollers to
the media rewind spool.
22. Fold the leading edge of the leader and insert it into the slit on the rewind
spool. Make sure the leader lines up closely to the SLPA panel.
23. Manually rotate the spool at least one turn counterclockwise.
NOTE: Hold the leader down while rotating the rewind spool to keep the
24. If the SLPA is being used in Thermal Transfer mode, it may be necessary
to load ribbon. See "Loading Ribbon" on page 16, otherwise proceed as
follows.
14
Platen
Peel Bar

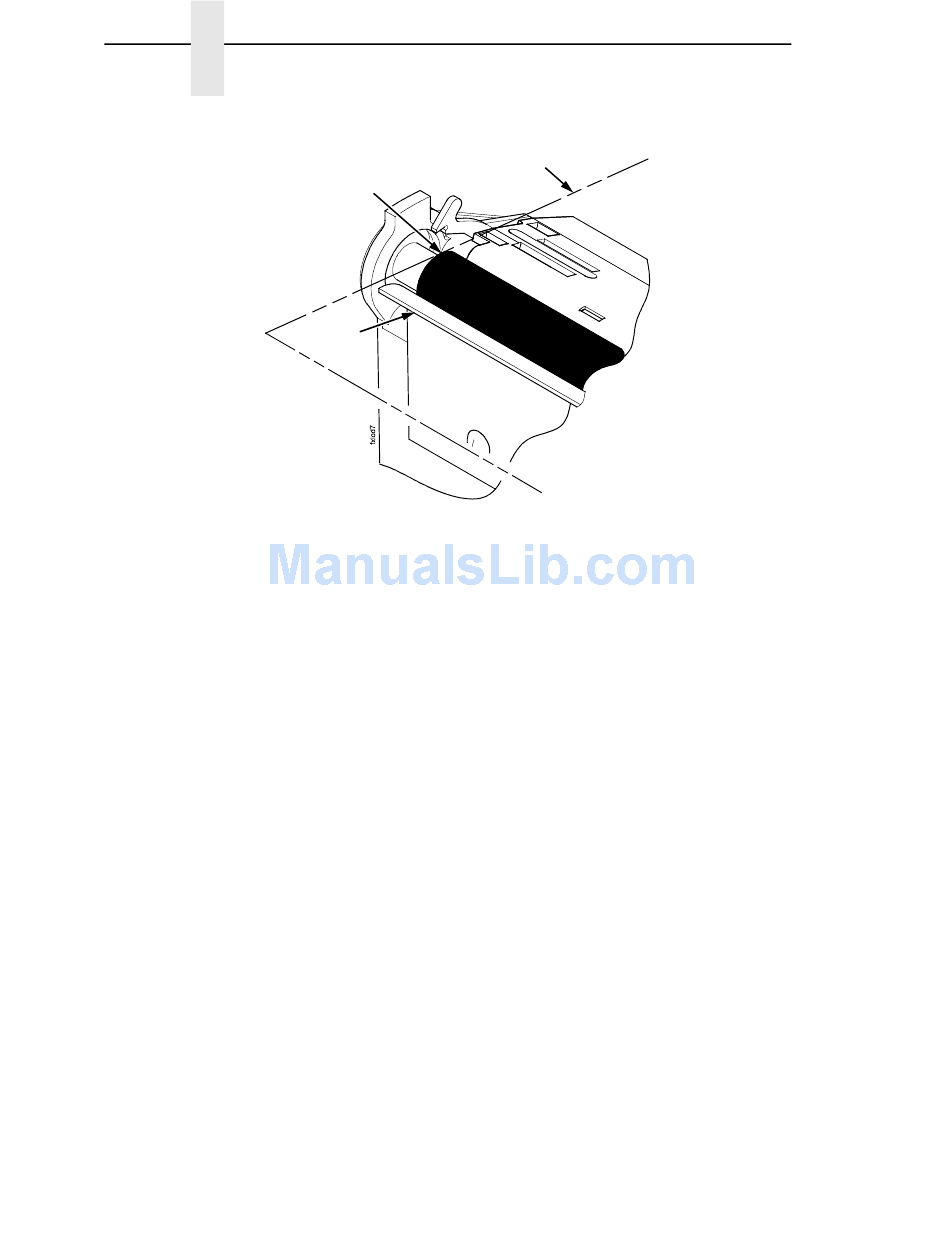

Figure 7. Aligning Media
leader in place.
Media Edge
