Threading The Label Roll
Label
6. Slide the new label roll onto the label roll hub (unwinding
counterclockwise) and against the label roll back stop.
7. Angle the flat edge of the collar so that it aligns with the flat edge of the
label roll spindle.
8. Place the label roll retainer onto the label roll spindle until it is flush with
the label roll, then tighten the black cam lock.
NOTE: If necessary, loosen the set screw on the collar and adjust the core
10
Label Roll
Back Stop
Label Roll

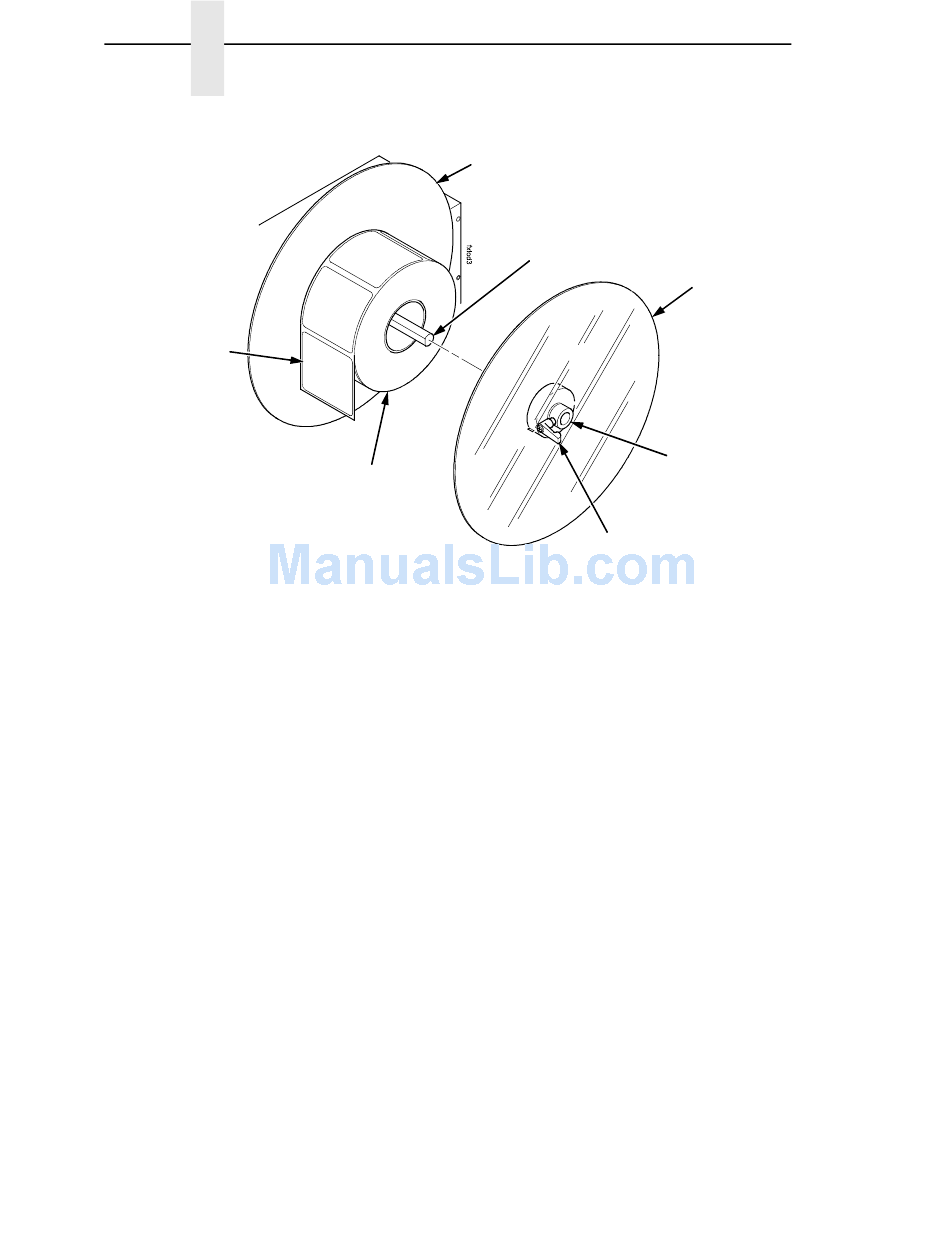

Figure 3. Loading Label Media
blade so that it cuts into the label core.
Label Roll
Spindle
Collar
Cam Lock
Label Roll
Retainer
