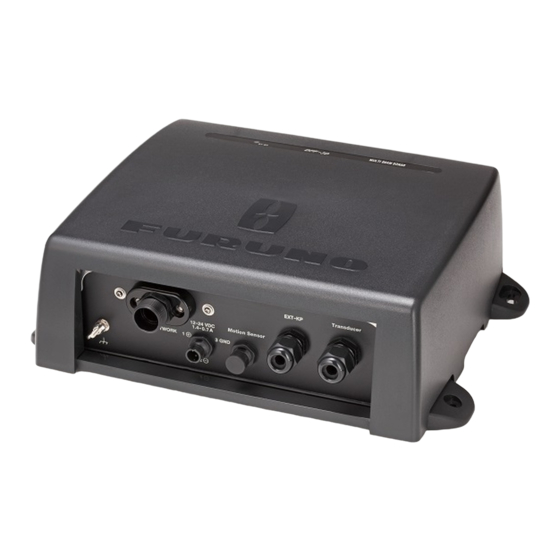

Multi beam sonar
Hide thumbs
Table of Contents

Advertisement

Quick Links

OPERATOR'S MANUAL
MULTI BEAM SONAR
DFF-3D
Model
www.furuno.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DFF-3D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Furuno DFF-3D

Summary of Contents for Furuno DFF-3D

  • Page 1 OPERATOR'S MANUAL MULTI BEAM SONAR DFF-3D Model www.furuno.com...
  • Page 2 7KH SDSHU XVHG LQ WKLV PDQXDO LV HOHPHQWDO FKORULQH IUHH )85812 $XWKRUL]HG 'LVWULEXWRU'HDOHU  $VKLKDUDFKR 1LVKLQRPL\D  -$3$1 $  '(&  3ULQWHG LQ -DSDQ $OO ULJKWV UHVHUYHG &  2&7    3XE 1R 20(& '$0, '))'           ...
  • Page 3 How to discard a used battery Some FURUNO products have a battery(ies). To see if your product has a battery, see the chap- ter on Maintenance. Follow the instructions below if a battery is used. Tape the + and - terminals of battery before disposal to prevent fire, heat generation caused by short circuit.
  • Page 4 SAFETY INSTRUCTIONS The installer and user must read the applicable safety instructions before attempting to install or operate the equipment. Indicates a potentially hazardous situation which, if not avoided, WARNING could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, CAUTION may result in minor or moderate injury.
  • Page 5 SAFETY INSTRUCTIONS Safety instructions for the installer WARNING CAUTION CAUTION The transducer cable must be handled Do not work inside the equipment carefully, following the guidelines unless qualified to do so. below. Electrical shock can occur. • Keep fuels and oils away from the cable.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS FOREWORD ........................vi SYSTEM CONFIGURATION ..................vii INSTALLATION .....................1-1 1.1 Equipment Lists......................1-1 1.2 How to Install the Sonar ..................... 1-2 1.3 Transducer ......................... 1-3 WIRING ........................2-1 2.1 Ground ........................2-1 2.2 Transducer Cable....................... 2-2 2.3 External KP Cable...................... 2-5 2.4 LAN Cable........................
  • Page 7 TABLE OF CONTENTS 4.5.10 How to show or hide the scale box...............4-16 4.5.11 Availability of points and event marks registration, and go to a point...4-17 MAINTENANCE, TROUBLESHOOTING ..............5-1 5.1 Maintenance .......................5-1 5.2 How to Replace the Fuse ...................5-2 5.3 How to Restore Default Settings ................5-2 APPENDIX 1 MENU TREE ..................AP-1 APPENDIX 2 JIS CABLE GUIDE ................AP-3 APPENDIX 3 INSTALLATION OF TRANSDUCER B54 ..........AP-4...

  • Page 8: Foreword

    FOREWORD A Word to the Owner of the DFF-3D Congratulations on your choice of the FURUNO DFF-3D Multi Beam Sonar. We are confident you will see why the FURUNO name has become synonymous with quality and reliability. Since 1948, FURUNO Electric Company has enjoyed an enviable reputation for quality marine electronics equipment.

  • Page 9: System Configuration

    SYSTEM CONFIGURATION NavNet TZtouch TZT9/14/BB NavNet TZtouch2 TZTL12F/15F MULTI BEAM SONAR DFF-3D 12-24 VDC Rectifier PR-62 External 100/110/220/230 VAC 1ø, 50/60 Hz Transducer : Standard supply B54 or TM54 : Optional or local supply...
  • Page 10 SYSTEM CONFIGURATION This page is intentionally left blank. viii...

  • Page 11: Installation

    INSTALLATION Equipment Lists Standard supply Name Type Code No. Remarks Multi Beam Sonar DFF-3D Transducer Select one. B54: Thru-hull mount TM54 TM54: Transom mount Spare Parts SP02-05601 001-033-740 1 set Fuses Installation Materials CP02-09400 000-029-992 1 set • Power cable assy. (3.5 m) •...

  • Page 12: How To Install The Sonar

    1. INSTALLATION How to Install the Sonar This sonar can be installed on a deck or on a bulkhead. When selecting a mounting location, keep the following points in mind: • Install the unit indoors. • The operating temperature range of this unit is -15°C to 55°C (-27°F to 99°F). Be sure the mounting location satisfies this requirement.

  • Page 13: Transducer

    1. INSTALLATION Transducer Thru-hull mount The installation position of the transducer directly affects the performance of the trans- ducer. For best performance, keep the following points in mind when selecting the mounting location. • Select a location where the influence of water flow and air bubbles is minimal. •...
  • Page 14 1. INSTALLATION Unit of measurement Top: millimeter Bottom: inch...
  • Page 15 1. INSTALLATION Transom mount For a vessel with an inboard engine, the transducer cannot be installed aft of the pro- peller screw because of the turbulence created by the propeller ahead of the transduc- er. Determine the mounting location considering the guidelines shown below and the instructions on page AP-8.
  • Page 16 1. INSTALLATION This page is intentionally left blank.

  • Page 17: Wiring

    WIRING Connect the power cable and transducer cable as shown below. See the next page for how to fabricate the transducer cable. TZT9/TZT14/TZTBB TZTL12F/TZTL15F MOD-Z072-050+, 5 m (option: 2/10 m) 1.4-0.7A MJ-A3SPF0013-035C External (3.5 m) Power supply Ground wire (12-24 VDC) (IV-2 sq) GROUND Transducer...

  • Page 18: Transducer Cable

    2. WIRING Transducer Cable Separate the transducer cable as far as possible from power cables to prevent inter- ference to the sonar. Keep the transducer cable away from televisions and monitors to prevent noise in the cable. Fabricate the cable as shown in the procedure below, then connect it inside the unit with a WAGO connector.
  • Page 19 2. WIRING 4. Detach three WAGO connectors, TB1, TB2, TB3. WAGO connector opener WAGO connector 5. Unfasten the sealing nut from the super gland for the transducer cable. Super gland Sealing nut 6. Unfasten two screws to remove the clamping plate for the transducer cable. Unfasten these screws to remove the clamping plate.
  • Page 20 2. WIRING 8. Referring to the interconnection diagram (at the back of this manual) and the illus- tration below, connect the transducer cable to WAGO connectors. (The WAGO connector opener is provided inside the unit. See the figure at step 4 for the loca- tion.) How to connect cable to WAGO connector Push down...

  • Page 21: External Kp Cable

    NCW-1.25 000-157-213-10 Note: FURUNO recommends use of the JIS cable MPYC(SLA)-4 (or equivalent, see Appendix 1). However, if the wiring environment is such that the cable may contact seawater, use a cable whose armor is covered with a vinyl sheath to prevent corro- sion.
  • Page 22 2. WIRING e) Remove 5 mm of the vinyl sheath from the cores then connect a crimp-on lug to each core as shown below. Approx. 5 mm f) Attach supplied crimp-on lug (FV1.25-4(LF) RED)) to the shield. g) Referring to the illustration below, wrap the armor with vinyl tape at the loca- tions shown.
  • Page 23 2. WIRING 5. Unfasten the sealing nut and lock nut from the supplied super gland. As shown below, pass the cable through the sealing nut, super gland, hole in the unit and the lock nut. Lock nut Cable for external KP (MPYC(SLA)-4) Sealing nut Super gland...
  • Page 24 2. WIRING 9. Connect the KP cable. Pass the PH connector through the clamp shown below, then connect it to J9 on th DIGI board. Make sure the cable does not contact the WAGO connector (TB3). Also, secure the shield of the external KP cable to the plate where the transducer cable is fixed.

  • Page 25: Lan Cable

    2. WIRING LAN Cable Do as follows to connect the supplied LAN cable (MOD-Z072-050+) or the optional LAN cable (MOD-Z072-020+, MOD-Z072-100+). 1. Unfasten the sealing nut from the LAN connector then remove the sealing insert and clamping claw. 2. Detach the sealing insert from the clamping claw as shown below. How to detach clamping claw Hold the clamping claw/seal assy.
  • Page 26 2. WIRING 5. Fasten the sealing nut to fasten the LAN cable. The clearance between the seal- ing nut and the super gland shall be 3 mm. The fastening torque for the sealing nut is 1.8 - 2.0 Nm. 3 mm How to disconnect the LAN cable Loosen the two screws on the gland to access the cable’s connector.

  • Page 27: Initial Settings

    INITIAL SETTINGS WARNING Do not open the equipment unless totally familiar with electrical circuits. Only qualified personnel are permitted to work inside the equipment. DIP Switch Setting The DIP switches S2 and S3 should be left in the default position (OFF). DIP switch S2 DIP switch S3...
  • Page 28 3. INITIAL SETTINGS DIP switch S2 setting options (reference only) Switch Function Setting Automatic IP address assignment OFF: Fixed (static) IP address. Set the IP address with switch #2. ON: IP address assigned automatically. IP address no. Effective when #1 segment is OFF. (See the table below for IP address.

  • Page 29: Operation Check

    Operation Check After connecting the NavNet TZtouch/NavNet TZtouch2, power the unit on/off from the ship’s switchboard. The LED on the cover of the DFF-3D lights or flashes according to equipment state, as described in the table below. LED state and meaning...

  • Page 30: Multi Function Display Initial Settings

    3. INITIAL SETTINGS Multi Function Display Initial Settings How to open the menu NavNet TZtouch: 1. Push the Home button (or tap the home icon) to display the menu icon bar. 2. Select [Menu], [Multibeam Sonar]. 3. Enter initial settings referring to the table below. NavNet TZtouch2: 1.
  • Page 31 • [Long] increases the detection range but lowers the resolution (about 1/2 compared to the [Std] pulse length) [DFF-3D Monitoring] Display pitch and roll (measured by internal sensor) and B voltage. [Set Hardware to Factory Reset the external fish finder to its facto-...
  • Page 32 3. INITIAL SETTINGS Transducer Setup menu For the oscillation center see “Motion Sensor menu” on the next page. Port dir.: "+" Top view Stern dir.: “+” Starboard view Up dir.: "+" Gravity Center, TD: Transducer If the center of gravity is not known, see the drawing below. Engine Top view Starboard view...
  • Page 33 3. INITIAL SETTINGS Motion Sensor menu Select [Transducer Setup] on the [Multibeam Sonar] menu to show the [Motion Sen- sor] menu (below the [Transducer Setup] menu). Port dir.: "+" Top view Stern dir.: "+" Starboard view Up dir.: "+" Center, TD: Transducer, SC: Satellite Compass Gravity If the center of gravity is not known, see the drawing below.
  • Page 34 0 to 3500 Time Lag (in ms)] sor. Sync (time lag) setting • If the equipment is connected as shown below, no adjustment to the time lag set- tings is necessary. Multi Function DFF-3D ------------------ ------------ SC-30 Display CAN bus Ethernet...
  • Page 35 For the multi function display connected by CAN bus, use 15 msec for the calculation. If NMEA data is fed to the DFF-3D via the NMEA Data Converter (IF-NMEA2K2), set the calculation figure according to the baud rate between the sensor and the IF-NMEA2K2 as shown below.
  • Page 36 3. INITIAL SETTINGS This page is intentionally left blank. 3-10...

  • Page 37: Operation

    NavNet TZtouch multi function display, such as touch operations and power on/off, see the Operator’s Manual for the NavNet TZtouch. The DFF-3D has four display screens (modes), multi sounder, side scan, cross sec- tion, and 3D sounder history.
  • Page 38 4. OPERATION Depth Depth scale scale Port Port Downward Downward Starboard Starboard Seabed echo Max. display depth Max. display depth Depth 19.5 Frequency Triple beam display Side scan display Tap the side scan display icon on the home screen to show the side scan display. The side scan display shows the echoes received from the port and starboard direc- tions.
  • Page 39 4. OPERATION Cross section display PORT STBD Tap the cross section display icon on the home screen to show the School of cross section display. fish The cross section display, shows Seabed seabed and underwater conditions. This multi beam sonar uses a 120° beam (downward to port 60°;...

  • Page 40: Multi-Sounder Display Operations

    4. OPERATION Multi-Sounder Display Operations This section covers the functions available with the multi-sounder display. For the menu items shared with the conventional fish finder, see the applicable Operator’s Manual. 4.2.1 How to switch between TX and STBY Tap the multi-sounder display to show the pop-up menu. Select [TX] to start transmit- ting.

  • Page 41: Availability Of Points And Event Marks Registration, And Go To A Point

    4. OPERATION 4.2.6 Availability of points and event marks registration, and go to a point For how to register points and event marks, see the NavNet TZtouch or NavNet TZ- touch2 manual. The table below shows function availability according to latitude/longitude, heading data presence or absence.

  • Page 42: Side Scan Display Operations

    4. OPERATION Side Scan Display Operations This section covers the functions available with the side scan display. For the menu items shared with the conventional fish finder, see the applicable Operator’s Manual. 4.3.1 How to switch between TX and STBY Tap the side scan display to show the pop-up menu.

  • Page 43: Availability Of Points And Event Marks Registration, And Go To A Point

    4. OPERATION 4.3.4 Availability of points and event marks registration, and go to a point For how to register points and event marks, see the NavNet TZtouch or NavNet TZ- touch2 manual. The table below shows function availability according to latitude/longitude, heading data presence or absence.

  • Page 44: Cross Section Display Operations

    4. OPERATION Cross Section Display Operations This section covers the functions available with the cross section display. For the menu items shared with the conventional fish finder, see the applicable Operator’s Manual. 4.4.1 How to switch between TX and STBY Tap the cross section display to show the pop-up menu.

  • Page 45: How To Smooth Echoes (Time)

    4. OPERATION 4.4.5 How to smooth echoes (time) If echoes are difficult to see because they appear “speckled,” use the echo smoothing feature to suppress the speckling by time. 1. Select [Menu] from the menu icon bar to show the menu. 2.

  • Page 46: Availability Of Points And Event Marks Registration, And Go To A Point

    4. OPERATION 4.4.8 Availability of points and event marks registration, and go to a point For how to register points and event marks, see the NavNet TZtouch or NavNet TZ- touch2 manual. The table below shows function availability according to latitude/longitude, heading data presence or absence.

  • Page 47: Sounder History Display Operations

    4. OPERATION 3D Sounder History Display Operations This section covers the functions available with the 3D sounder history display. For the menu items shared with the conventional fish finder, see the applicable Operator’s Manual. 4.5.1 How to switch between TX and STBY Tap the 3D sounder history display to show the pop-up menu.

  • Page 48: How To Stop Advancement Of The Display

    4. OPERATION 4.5.4 How to stop advancement of the display You can stop advancement of the history display to observe the distribution of sea floor topography and school of fish. 1. Tap the 3D sounder history display to show the pop-up menu. 2.

  • Page 49: How To Use Terrain Shading

    4. OPERATION 4.5.8 How to use terrain shading The thickness of the shading for the bottom terrain can be adjusted. 1. Select [Menu] from the menu icon to show the menu. 2. Select [Multibeam Sonar]. 3. Select [Terrain Shading]. Drag the slider bar to adjust. The default setting is 50.
  • Page 50 4. OPERATION How to set color shading Open the menu, select Multi Beam to show the menu for setting color shading. Seabed Color Classic Hue Fish Color Classic Hue Fish Monochrome Color Seabed Monochrome Color Gray Hue Gray Hue Auto Seabed Shading Auto Seabed Shading Minimum Value Minimum Value...
  • Page 51 4. OPERATION Menu item Description Setting options [Minimum Value] Use the software keyboard to set the shal- 0 to 1200 (m) lowest depth to use. [Auto Seabed Shading] must be OFF to enter depth. Alternatively, tap the minimum value indica- tion on the color bar scale to show the slider bar.
  • Page 52 4. OPERATION Menu item Description Setting options [Minimum Value] Use the software keyboard to set the shal- 0 to 1200 (m) lowest depth to use. [Auto Fish Shading] must be OFF to enter depth. Alternatively, tap the minimum value indica- tion on the color bar scale to show the slider bar.
  • Page 53 4. OPERATION 4.5.11 Availability of points and event marks registration, and go to a point For how to register points and event marks, see the multi function display operator’s manual. The table below shows function availability according to latitude/longitude, heading data presence or absence.
  • Page 54 4. OPERATION This page is intentionally left blank. 4-18...

  • Page 55: Maintenance, Troubleshooting

    MAINTENANCE, TROUBLESHOOTING NOTICE WARNING Do not apply paint, anti-corrosive sealant or ELECTRICAL SHOCK HAZARD Do not open the equipment. contact spray to coating or plastic parts of the equipment. Only qualified personnel are permitted to work inside the Those items contain organic solvents that can equipment.

  • Page 56: How To Replace The Fuse

    #3: Restore default settings (IP address, etc.) except LAN related. #4: Restore all default settings. Use this when changing transducers. 3. Connect the power cable to the DFF-3D, then turn on the power at the ship’s switchboard. If #4 of DIP Switch S2 is set to ON, the LED blinks every 0.4 seconds.

  • Page 57: Appendix 1 Menu Tree

    APPENDIX 1 MENU TREE Multi- Day Background Color (White, Light Blue, Black, Blue) MENU beam Night Background Color (Black, Dark Blue) Sonar Bottom Range Shift Area (15~85(%); 50) Transmit Rate Auto (OFF, ON) Default settings in boldface italic. Transmit Rate Manual (0~21; 20) Sounder Transmit (OFF, ON) Multi-Sounder A-Scope Peak Hold...
  • Page 58 Auto Gain Offset (Side Scan) (-5~5; 0) Auto Gain Offset (Cross Section) (-5~5; 0) STC (Side Scan) (0~10; 5) STC (Multi-Sounder) (0~10; 5) TX Pulse (Short1, Short2, Std, Long) DFF-3D Monitoring Set Hardware to Factory Default Reset Default Settings AP-2...

  • Page 59: Appendix 2 Jis Cable Guide

    EX: TTYCYSLA - 4 MPYC - 4 TTYCSLA-4 # of cores Designation type Designation type # of twisted pairs The following reference table lists gives the measurements of JIS cables commonly used with Furuno products: Cable Core Core Cable Diameter Type...

  • Page 60: Appendix 3 Installation Of Transducer B54

    APPENDIX 3 INSTALLATION OF TRANSDUCER B54 This appendix provides a copy of the installation instructions and Installation supplement for the ® AIRMAR Technology Corporation Transducer B54. For the latest version of these instructions, see the materials provided with the transducer. INSTALLATION INSTRUCTIONS B54 Depth Transducer High-Performance Fairing...

  • Page 61: Mounting Location

    APPENDIX 3 INSTALLATION OF TRANSDUCER B54 displacement hull aft view pressure waves stem 1/3 aft hull nut (Load Waterline Length) 150-300mm hull backing block (6-12") planing hulls slope of hull min. fairing deadrise thickness angle parallel to water surface 45mm (1-3/4") outboard and I/O transducer inboard...
  • Page 62 APPENDIX 3 INSTALLATION OF TRANSDUCER B54 ► stem anti-rotation bolt NOTE: Be sure the arrow on the hull nut transducer nut & backing points forward washer block toward the bow. hull High- Performance transducer Fairing triangular plug marine sealant on following (shown in red): with curved - transducer, extending above hull nut 1/4"...
  • Page 63 3. The optimal interior hole diameter is affected by the hull’s thickness Fairing 04-883-01 and deadrise angle. It must be large enough in diameter to allow Please contact your Furuno dealer to obtain parts. the core to be completely sealed. Copyright © 2017 Airmar Technology Co rporation. All rights reserved.

  • Page 64: Appendix 4 Installation Of Transducer Tm54

    APPENDIX 4 INSTALLATION OF TRANSDUCER TM54 This appendix provides a copy of the installation instructions and Installation supplement for the ® AIRMAR Technology Corporation Transducer TM54. For the latest version of these instructions, see the materials provided with the transducer. OWNER’S GUIDE &...
  • Page 65 APPENDIX 4 INSTALLATION OF TRANSDUCER TM54 Compensating for Transom Angle: Shims For the best performance, the transducer beam must be aimed straight at the bottom. Since the transom of most boats is angled, the bracket must compensate for it. Measure the transom angle of the boat with an angle finder.
  • Page 66 APPENDIX 4 INSTALLATION OF TRANSDUCER TM54 12° transom angle 9° transom angle 21° transom angle 13° transom angle three shims taper up one shim taper down parallel parallel parallel slight angle May improve operation May improve operation May improve operation May improve operation above 20kn (23MPH) above 20kn (23MPH)
  • Page 67 Lost, broken, and worn parts should be replaced immediately. cable and secure it in place with cable ties to prevent damage. 11.Refer to your echosounder owner’s manual to connect the transducer to the instrument. Please contact your Furuno dealer to obtain parts. AP-11...
  • Page 68 APPENDIX 4 INSTALLATION OF TRANSDUCER TM54 This page is intentionally left blank. AP-12...

  • Page 69: Specifications

    FURUNO DFF-3D SPECIFICATIONS OF MULTI BEAM SONAR DFF-3D GENERAL TX frequency 165 kHz Output power 800 W nominal Amplifier type Straight amplifier (H/L gain sampling simultaneously) Minimum range Display mode Multi-sounder, Side scan, Section, 3D history Depth range and Pulse repetition rate (PRR) (TX rate: 20, Pulse length: standard) Range (m) PRR (times/min, max.)
