DOPPLER SONAR
DS-30
www.furuno.co.jp
All brand and product names are trademarks, registered trademarks or service marks of their respective holders.

Advertisement

Table of Contents
loading

Related Manuals for Furuno DS-30

Summary of Contents for Furuno DS-30

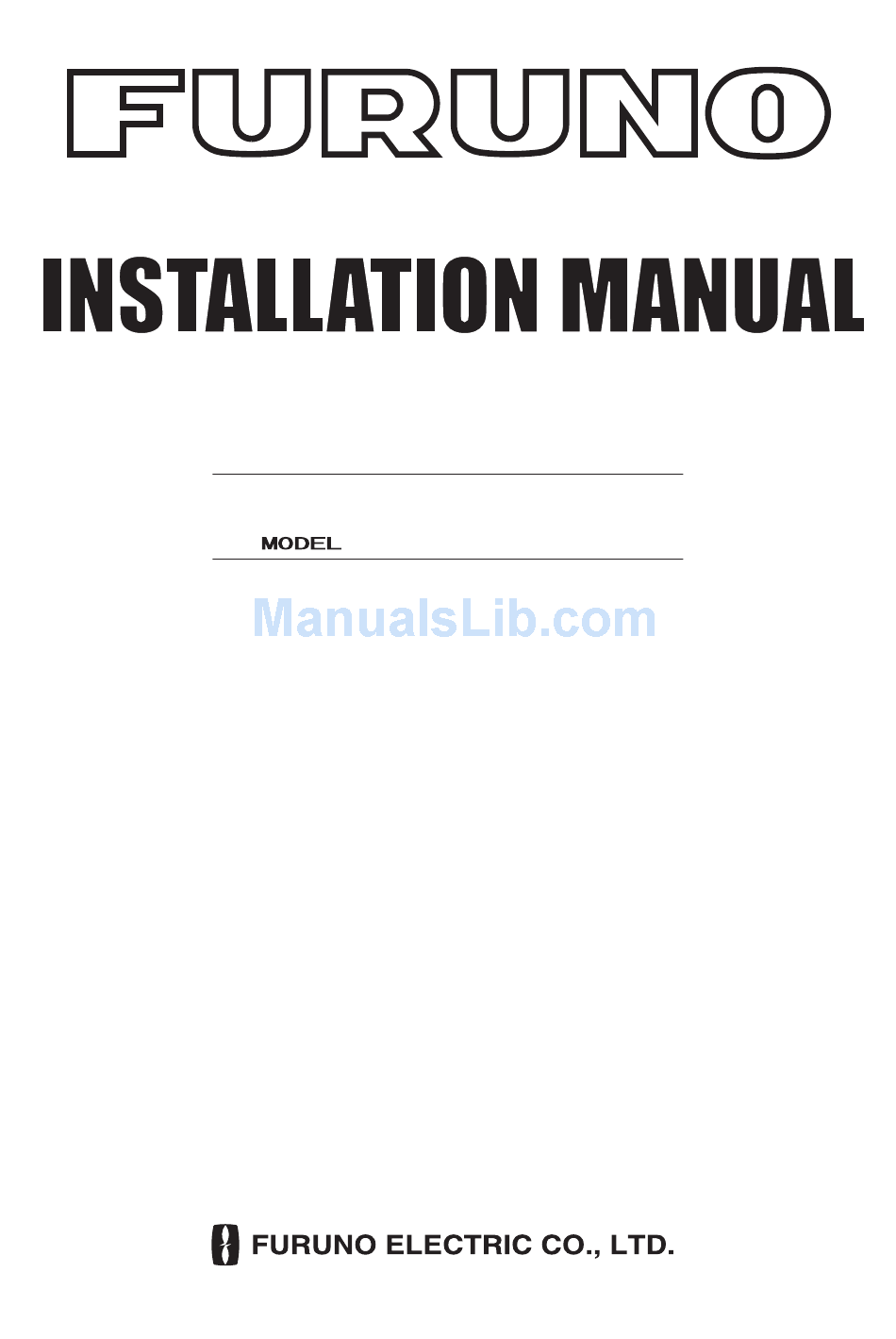

  • Page 1 DOPPLER SONAR DS-30 www.furuno.co.jp All brand and product names are trademarks, registered trademarks or service marks of their respective holders.
  • Page 2 Nishinomiya, 662-8580, JAPAN Telephone : +81-(0)798-65-2111 : +81-(0)798-65-4200 All rights reserved. Printed in Japan Pub. No. IME-72360-T (TATA ) DS-30 The paper used in this manual is elemental chlorine free. ・FURUNO Authorized Distributor/Dealer A : MAY T : SEP . 16, 2009...

  • Page 4: Processor Unit

    WARNING Only qualified personnel should work inside the equipment. This equipment uses high voltage electricity which can shock, burn, or cause death. Turn off the power at the ship's mains switchboard before beginning the installation. Post a warning sign near the switchboard to ensure that the power will not be applied while the equipment is being installed.

  • Page 5: Table Of Contents

    3.1 Precautions for Cable Installation... 3-1 3.1.1 Cable between hull Unit (transducer) and Transceiver ... 3-1 3.1.2 Cable between transceiver Unit and Processor Unit (via Junction Box)... 3-1 3.1.3 Other Connection Cables of DS-30 ... 3-1 3.2 Cable Specification ... 3-2 3.3 Cable Fabrication... 3-5 3.3.1 Transducer Cable...

  • Page 6: Table Of Contents

    4.3.2 Closing System Menu... 4-7 4.3.3 Setting Display Unit Preset Menu ... 4-7 4.3.4 Setting Ship Data Menu... 4-9 4.3.5 Setting External Sensor Menu ...4-10 CHAPTER5．POST-INSTALLATION CHECK ... 5-1 5.1 LED Status Check... 5-1 5.1.1 Location of LEDs ... 5-1 5.1.2 Processor Unit...
  • Page 8 Name Distance Indicator Alarm Unit Type Weight (kg) MF-22T-1 MF-22T-2 MF-22T-3 AU-12 Remarks Flush mount Bulkhead mount Tabletop mount...

  • Page 9: Display Unit

    1) Air Bubbles Since the transducer of the DS-30 is installed flush with the ship’s hull bottom, it is susceptible to air bubbles which flow below the hull bottom. Select a location where air bubbles created at ship’s bow do not go down to the mounting location.

  • Page 10: Other Indoor Units

    This occurs especially when the water level is lower than the center line of the bulbous bow. It is recommended to load a proper amount of ballast not only for the DS-30 but also for safety of navigation. 4) Interference of Other Ultrasonic Equipment If integer multiple of the transmission frequency of other ultrasonic equipment is within 440 ±...
  • Page 16 3. Fix the junction box by tightening the bolts with nuts placed from back of the installation location. 2.5. Transducer (Hull Unit) For transducer /casing DS-330/311, refer to the installation instructions on page 2-5. For gate value seachest DS-335, refer to the installation instructions on page D-9. Note that the spacer and upper plate should be oriented to the ship’s bow.

  • Page 17: Transducer Cable

    The standard tank supplied by FURUNO is of material KSTPG370（KSTPG38,KST138）, approved by ship Classification Society of Japan, with a thickness of 25 mm.
  • Page 22 3 - 3...

  • Page 26: Interconnection Diagrams

    3) Wire Crimping Procedure 1. Strip the vinyl sheath of the wire to expose the core by 3mm to 4mm. 2. Hold the crimping tool horizontally and insert the contact pin with its slit faced downward into the crimp hole on the crimping tool.

  • Page 27: Cif/Nmea Data Signal Cable (Co-Spevv-Sb-C 0.2X5P)

    7) Clamping Cable Clamp the shield and armor of the cable with cable clamp. Cable Clamp Shield + Armor 3.3.4 CIF/NMEA Data Signal Cable (CO-SPEVV-SB-C 0.2X5P) Anticorrosive Armor Vinyl sheath Sheath Socket-set Screw Connector Case...

  • Page 28: Grounding

    3.3.5 Other Cables All other cables are connected to terminal boards. Fabricate their ends as follows. 1) Cable Armor <For cables led in through cable clamp> Expose the armor and clamp it with the cable clamp. Cable Clamp <For cables led in through cable gland> Solder a vinyl sheath wire to the armor and connect it to the grounding terminal.

  • Page 29: Insulation Of Cables For Transducer

    3.3.6 Insulation of cables for transducer Insulation check 1. Remove all cores and shields of the transducer from the terminal board. All wires of the transducer are open. 2. Set the multimeter to the maximum resistance range and measure the resistance between each transducer line (TD1, TD2, TD3) and individual or common shield.

  • Page 30: Kp Input Signal For Interference Rejection

    Remarks on Connection of Other Equipment 3.4.1 KP input Signal for Interference Rejection When a TX trigger pulse (Keying Pulse) is connected from other acoustic equipment which gives interference to DS-30, note the following. External KP1 External KP2 1) Interference Rejection Signal Input Circuit Two iuput ports are provided in the processor unit for connection of KP for interference rejection.
  • Page 42 Set horizontal distance between keel and nav-equipment antenna. Set distance between DS-30 and #1 echo sounder transducers. Set distance between DS-30 and #2 echo sounder transducers. 4.3.5 Setting External Sensor Menu Item GYROCOMPASS Choose YES if a gyrocompass is connected.

  • Page 74: Digital Indicator

    Name DS-300 Display/Display Unit DS-301 Display/Operation Panel DS-310 Processor Unit DS-320 Transceiver Unit DS-325 Transceiver Unit DS-330 Transducer DS-330/331 Hull Unit DS-335 Seachest (with Gate Valve) DS-360 Junction Box DS-370 Distribution Box DS-340 Rate-of-turn Gyro DS-350 Digital Indicator DS-351 Digital Indicator (Bulkhead mount) DS-351 Digital Indicator (Flush mount) DS-359 Remote Box (Bulkhead mount) DS-359 Remote Box (Flush mount)
  • Page 75 Sep.29'05...
  • Page 78 Y. Hatai...
  • Page 81 23/Oct/08 R.Esumi...
  • Page 82 Y. Hatai...
  • Page 83 Ｄ−１０ H.HAYASHI Feb.12'04...
  • Page 86 D-13 Feb.22'05...
  • Page 90 Ｄ−１７ H.HAYASHI Feb.12’０４...
  • Page 91 D-18 Jan.07'06...
  • Page 92 D-19 Jan.07'06...
  • Page 101 D-28 May 20 '04...
  • Page 102 D-29...
  • Page 103 D-30...
  • Page 104 D-31...
  • Page 105 D-32 D-34...
  • Page 106 D-33 D - 35...
  • Page 107 キ AC-C ﾐﾄﾞﾘ DPYC-1.5 24VDC アカ クロ W=50 MJ-A6SPF0013,2m シロ クロ IV-2sq. 調光器 DIMMER MF-22L TITLE DS-30 T.YAMASAKI 名称 ドップラソナー T.TAKENO 相互結線図 18/Jun/09 R.Esumi MASS NAME DOPPLER SONAR INTERCONNECTION DIAGRAM C7236-C01- K DPYC-1.5 *1 KP入力 KP INPUT DPYC-1.5 *1 KP入力...
  • Page 108 200-240VAC 1φ,50/60Hz MPYCS-7 リモート箱 REMOTE BOX DS-359 IV-2sq. アナログ指示器 ANALOG INDICATOR 100-120/ 200-240VAC MF-22L詳細 DETAIL FOR MF-22L TITLE DS-30 (DS-370) T.YAMASAKI 名称 ドップラソナー（分配箱） T.TAKENO 相互結線図 18/Jun/09 R.Esumi MASS NAME DOPPLER SONAR (DISTRIBUTION BOX) INTERCONNECTION DIAGRAM C7236-C02- K 調光器 DIMMER MF-22L 3kΩ/25W...
  • Page 114 Board Switch Setting MIF Board ON Speed over-the-ground & through-water OFF Type of ship’s speed for distance run pulse: Vector OFF Bearing data output: True course OFF Bearing data output at low Ship’s speed: True course OFF Distance signal alarm ON Fore-aft status OFF CIF/NMEA 1 option data: Off OFF CIF/NMEA 2 option data: Off...
