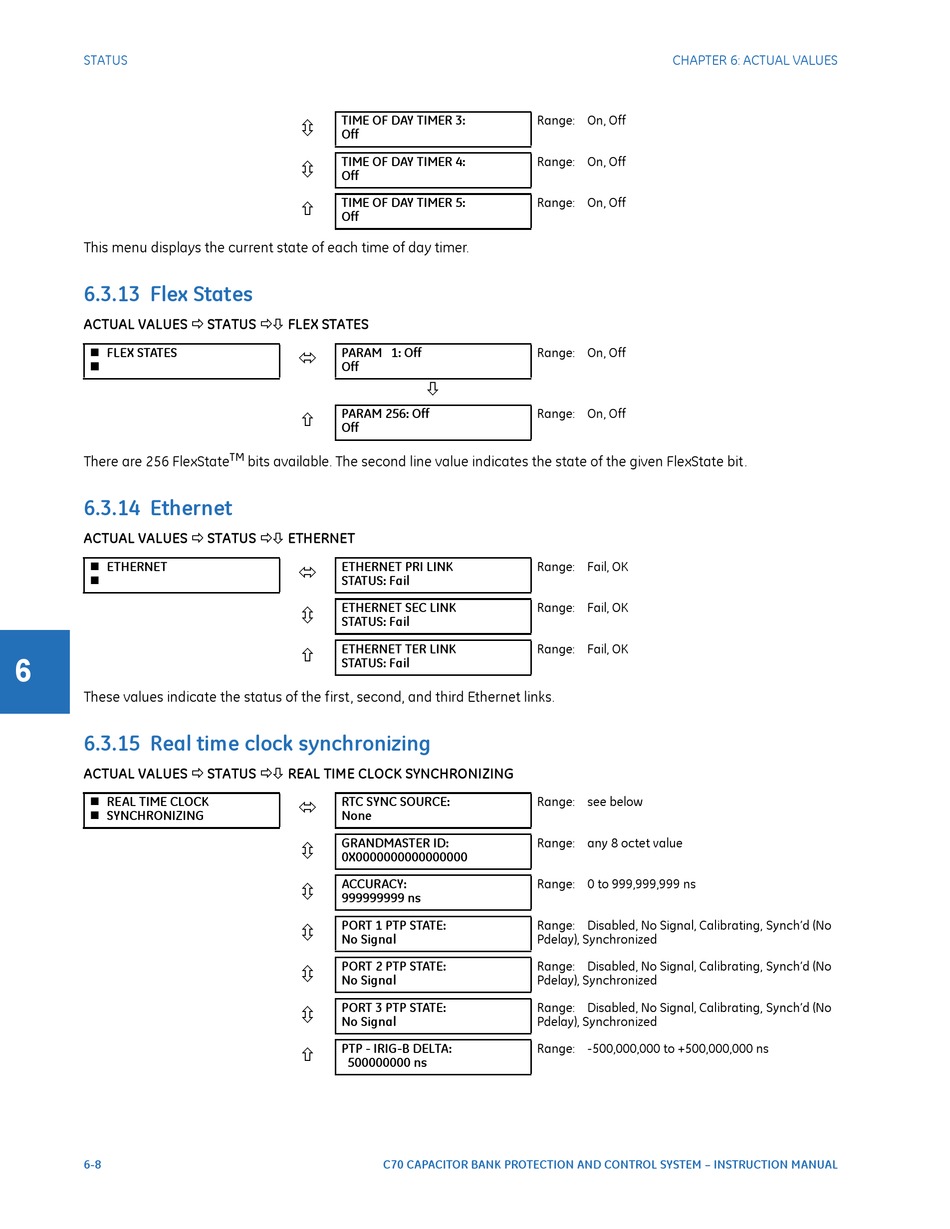

STATUS
This menu displays the current state of each time of day timer.

6.3.13 Flex States

ACTUAL VALUES  STATUS  FLEX STATES
 FLEX STATES

There are 256 FlexState

6.3.14 Ethernet

ACTUAL VALUES  STATUS  ETHERNET
 ETHERNET

6
These values indicate the status of the first, second, and third Ethernet links.

6.3.15 Real time clock synchronizing

ACTUAL VALUES  STATUS  REAL TIME CLOCK SYNCHRONIZING
 REAL TIME CLOCK
 SYNCHRONIZING
6-8
TIME OF DAY TIMER 3:

Off
TIME OF DAY TIMER 4:

Off
TIME OF DAY TIMER 5:

Off
PARAM 1: Off

Off
PARAM 256: Off

Off
TM
bits available. The second line value indicates the state of the given FlexState bit.
ETHERNET PRI LINK

STATUS: Fail
ETHERNET SEC LINK

STATUS: Fail
ETHERNET TER LINK

STATUS: Fail
RTC SYNC SOURCE:

None
GRANDMASTER ID:

0X0000000000000000
ACCURACY:

999999999 ns
PORT 1 PTP STATE:

No Signal
PORT 2 PTP STATE:

No Signal
PORT 3 PTP STATE:

No Signal
PTP - IRIG-B DELTA:

500000000 ns
C70 CAPACITOR BANK PROTECTION AND CONTROL SYSTEM – INSTRUCTION MANUAL
Range: On, Off
Range: On, Off
Range: On, Off
Range: On, Off

Range: On, Off
Range: Fail, OK
Range: Fail, OK
Range: Fail, OK
Range: see below
Range: any 8 octet value
Range: 0 to 999,999,999 ns
Range: Disabled, No Signal, Calibrating, Synch'd (No
Pdelay), Synchronized
Range: Disabled, No Signal, Calibrating, Synch'd (No
Pdelay), Synchronized
Range: Disabled, No Signal, Calibrating, Synch'd (No
Pdelay), Synchronized
Range: -500,000,000 to +500,000,000 ns
CHAPTER 6: ACTUAL VALUES
