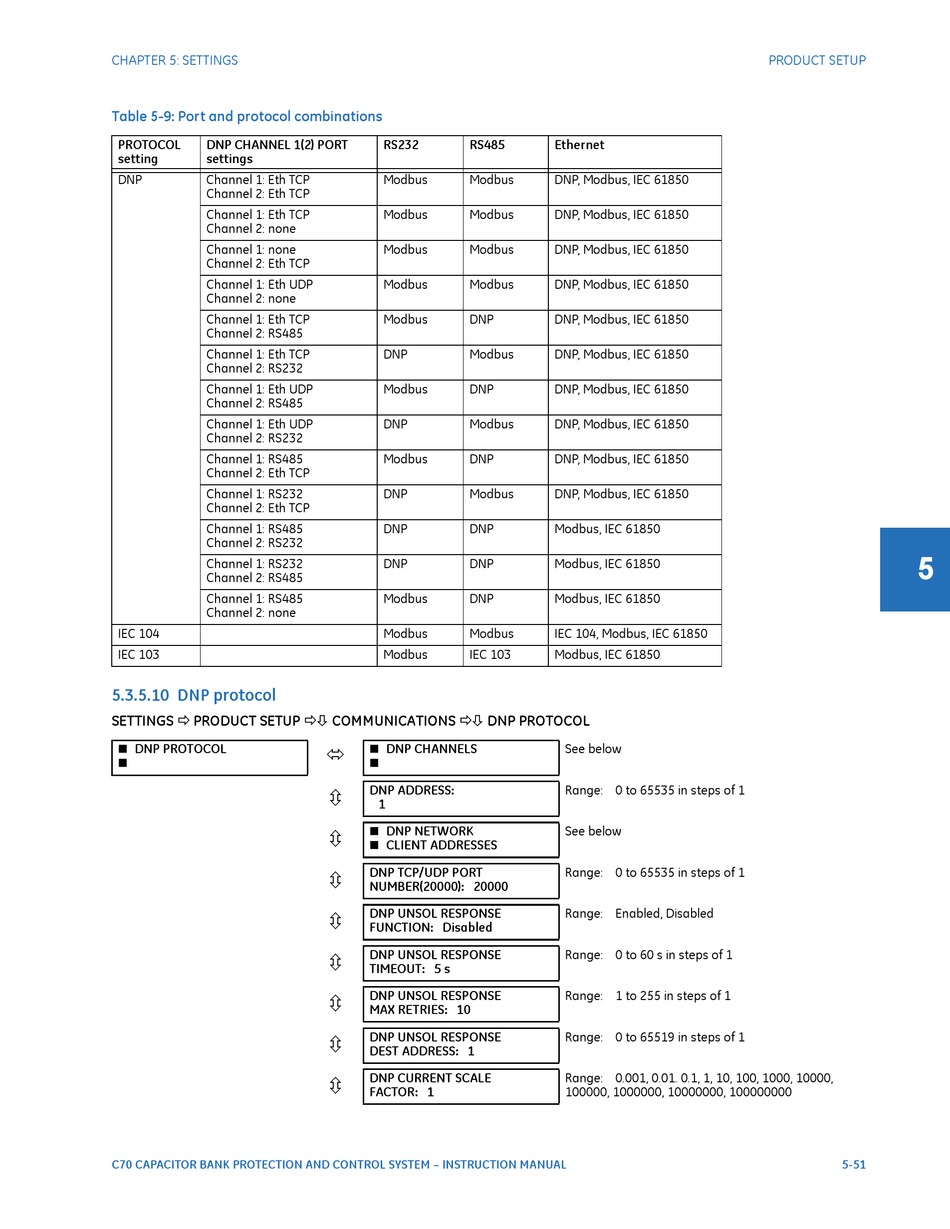

GE C70 Instruction Manual page 255

CHAPTER 5: SETTINGS
Table 5-9: Port and protocol combinations
PROTOCOL DNP CHANNEL 1(2) PORT
setting settings
DNP Channel 1: Eth TCP
Channel 2: Eth TCP
Channel 1: Eth TCP
Channel 2: none
Channel 1: none
Channel 2: Eth TCP
Channel 1: Eth UDP
Channel 2: none
Channel 1: Eth TCP
Channel 2: RS485
Channel 1: Eth TCP
Channel 2: RS232
Channel 1: Eth UDP
Channel 2: RS485
Channel 1: Eth UDP
Channel 2: RS232
Channel 1: RS485
Channel 2: Eth TCP
Channel 1: RS232
Channel 2: Eth TCP
Channel 1: RS485
Channel 2: RS232
Channel 1: RS232
Channel 2: RS485
Channel 1: RS485
Channel 2: none
IEC 104
IEC 103
5.3.5.10 DNP protocol
SETTINGS  PRODUCT SETUP  COMMUNICATIONS  DNP PROTOCOL
 DNP PROTOCOL

C70 CAPACITOR BANK PROTECTION AND CONTROL SYSTEM – INSTRUCTION MANUAL
RS232 RS485
Modbus Modbus
Modbus Modbus
Modbus Modbus
Modbus Modbus
Modbus DNP
DNP Modbus
Modbus DNP
DNP Modbus
Modbus DNP
DNP Modbus
DNP DNP
DNP DNP
Modbus DNP
Modbus Modbus
Modbus IEC 103
 DNP CHANNELS


DNP ADDRESS:

1
 DNP NETWORK

 CLIENT ADDRESSES
DNP TCP/UDP PORT

NUMBER(20000): 20000
DNP UNSOL RESPONSE

FUNCTION: Disabled
DNP UNSOL RESPONSE

TIMEOUT: 5 s
DNP UNSOL RESPONSE

MAX RETRIES: 10
DNP UNSOL RESPONSE

DEST ADDRESS: 1
DNP CURRENT SCALE

FACTOR: 1
Ethernet
DNP, Modbus, IEC 61850
DNP, Modbus, IEC 61850
DNP, Modbus, IEC 61850
DNP, Modbus, IEC 61850
DNP, Modbus, IEC 61850
DNP, Modbus, IEC 61850
DNP, Modbus, IEC 61850
DNP, Modbus, IEC 61850
DNP, Modbus, IEC 61850
DNP, Modbus, IEC 61850
Modbus, IEC 61850
Modbus, IEC 61850
Modbus, IEC 61850
IEC 104, Modbus, IEC 61850
Modbus, IEC 61850
See below
Range: 0 to 65535 in steps of 1
See below
Range: 0 to 65535 in steps of 1
Range: Enabled, Disabled
Range: 0 to 60 s in steps of 1
Range: 1 to 255 in steps of 1
Range: 0 to 65519 in steps of 1
Range: 0.001, 0.01. 0.1, 1, 10, 100, 1000, 10000,
100000, 1000000, 10000000, 100000000
