EOS2 SAFETY LIGHT CURTAIN
Positioning
The Emitter EOS2E and the Receiver EOS2R must be positioned so that it is
impossible to access the dangerous area from above, from below and from the
sides without intercepting one of the beams. Useful indications for correct

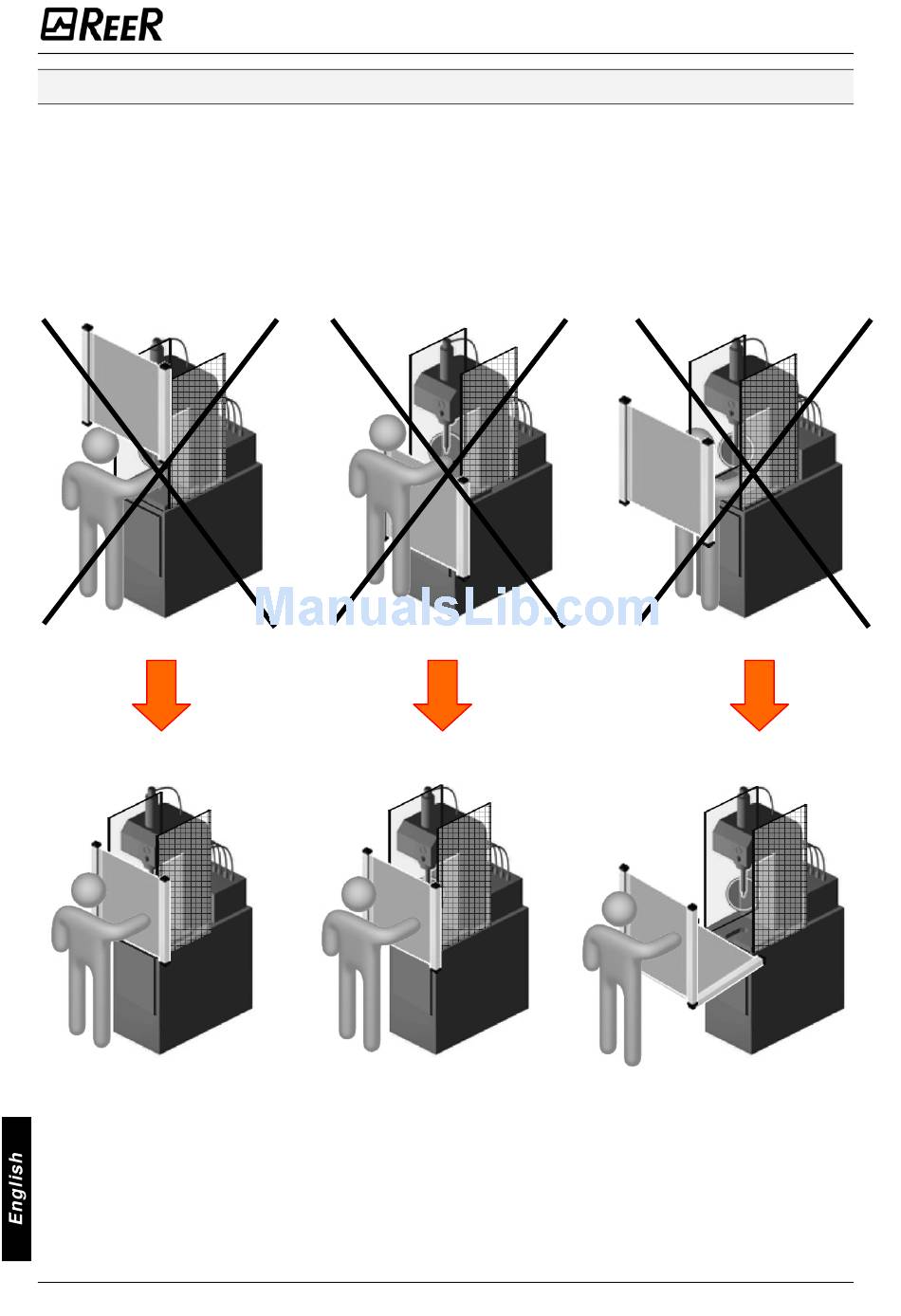

positioning of the light curtain are provided in the figure below.
Incorrect positioning of the light curtain
Correct positioning of the light curtain
Figure 2 - Positioning
6
8540738 • 2nd December 2009 • Rev.2
