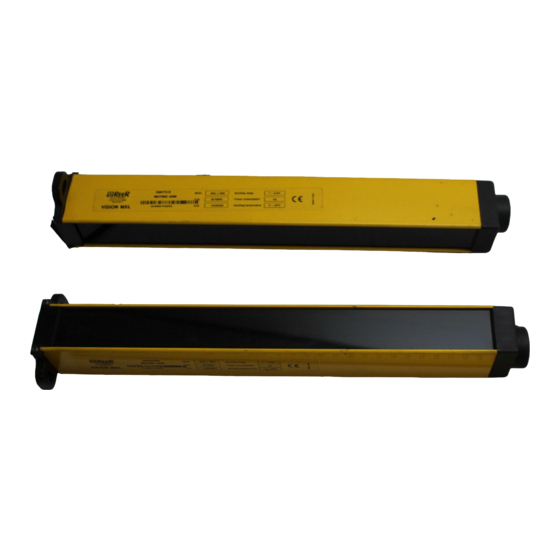

Photoelectric safety light curtain
Hide thumbs
Table of Contents

Advertisement

Quick Links

REER SpA
via Carcano 32
10153 – Torino
Italy
dichiara che le barriere fotoelettriche VISION VXL / VISION MXL sono Dispositivi Elettrosensibili di
Sicurezza (ESPE) di :
Tipo 2 (secondo la Norma CEI EN 61496-1:2005; CEI EN 61496-2:2007)
SIL 2 (secondo la Norma CEI EN 61508:2002)
SILCL 2 (secondo la Norma CEI EN 62061:2005 + CEI EN 62061/EC2:2008)
PL d (secondo la Norma UNI EN ISO 13849-1:2008)
declares that the VISION VXL / VISION MXL photoelectric safety barriers are :
Type 2 (according the Standard IEC 61496-1:2004; IEC 61496-2:2006)
SIL 2 (according the Standard IEC 61508:1998)
SILCL 2 (according the Standard IEC 62061:2005)
PL d (according the Standard ISO 13849-1:2006)
Electro-sensitive Protective Equipments (ESPE)
realizzati in conformità alle seguenti Direttive Europee:
complying with the following European Directives:
2006/42/CE "Direttiva Macchine"
"Machine Directive"
2004/108/CE "Direttiva Compatibilità Elettromagnetica"
2006/95/CE "Direttiva Bassa Tensione"
"Low Voltage Directive"
e sono identiche all'esemplare esaminato ed approvato con esame di tipo CE da:
and are identical to the specimen examined and approved with a CE - type approval by:
TÜV SÜD Rail GmbH – Ridlerstrasse 65 – D-80339 – Muenchen – Germany
Carlo Pautasso
Direttore Tecnico
Technical Director
Dichiarazione CE di conformità
EC declaration of conformity
"Electromagnetic Compatibility Directive"
Torino, 1/1/2010
Giancarlo Scaravelli
Presidente
President

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VISION MXL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Reer VISION MXL

Summary of Contents for Reer VISION MXL

  • Page 1 Carcano 32 10153 – Torino Italy dichiara che le barriere fotoelettriche VISION VXL / VISION MXL sono Dispositivi Elettrosensibili di Sicurezza (ESPE) di : Tipo 2 (secondo la Norma CEI EN 61496-1:2005; CEI EN 61496-2:2007) SIL 2 (secondo la Norma CEI EN 61508:2002)

  • Page 2: Table Of Contents

    PHOTOELECTRIC SAFETY LIGHT CURTAIN VISION MXL INSTALLATION USE AND MAINTENANCE SUMMARY INTRODUCTION...........................2 OPERATION ..........................3 INSTALLATION..........................4 MUTING FUNCTION...........................5 POSITIONING.............................9 SAFETY DISTANCE CALCULATION....................10 VERTICAL POSITION OF THE LIGHT CURTAIN ................11 MULTIPLE SYSTEMS........................12 DISTANCE BETWEEN REFLECTING SURFACES.................12 MECHANICAL ASSEMBLY AND OPTICAL ALIGNMENT ...............14 ELECTRICAL CONNECTIONS ......................15...

  • Page 3: Introduction

    IEC 61496-1,2 and EN 61496-1. VISION MXL is composed of Emitter plus Receiver, with added functions such as Muting, feedback control of eventual external contactors, and manual/automatic function management. A series of warning LEDs located on the Emitter and the Receiver display the information necessary for the correct use of the device and to evaluate eventual functioning anomalies.

  • Page 4: Operation

    40 mm (protected height from 300 mm to 1200 mm) PROTECTION OF HANDS VISION MXL is available also in the 2, 3, 4 beams configuration with the following lens pitch: – 500mm (2 beams), 400mm (3 beams), 300mm (4 beams).

  • Page 5: Installation

    VISION MXL INSTALLATION Before installing the VISION MXL safety system, make sure that: The safety system is only used as a stopping device and not as a machine control device. The machine control can be actuated electrically. All dangerous machine movements can be interrupted immediately. In particular, the machine stopping times must be known and, if necessary, measured.

  • Page 6: Muting Function

    VISION MXL MUTING FUNCTION The Muting function is a temporary suspension of the safety light curtain’s protective function. Carefully check your risk analysis in order to assess whether the Muting function is compatible with your application and what additional measures have to be taken.
  • Page 7 VISION MXL SERIES "MXL T" - KIT OF MXL LIGHT CURTAIN AND SENSOR ELEMENT “MXLT SI” AND “MXLT SE” Integrated Muting sensors – for two-way openings with pallet entrance/exit. In this model, the Muting sensors are the first on one side and the second on the other in relation to the vertical light curtain (Figure 3).
  • Page 8 VISION MXL Sensor1 Sensor2 Curtain intercepted Curtain free Muting enable Figure 6 - Muting cycle closed by the light curtain SERIES "MXL L" - KIT OF MXL LIGHT CURTAIN AND SENSOR ELEMENT “MXLL S” Integrated Muting sensors – only for one-way openings with pallet exit.
  • Page 9 VISION MXL POSITIONING OF THE MUTING SENSORS The Emitter and Receiver of the light curtain must be positioned so as to permit access to the dangerous area from above, from below and from the sides without first of all intercepting at least one of the optical beams.

  • Page 10: Positioning

    VISION MXL POSITIONING The position of the MXLE Emitter and the MXLR Receiver must prevent access to the danger zone from above, below and from the sides, unless at least one of the optical beams has been intercepted. Some useful information regarding the correct position of the light curtain is shown in the figure below.

  • Page 11: Safety Distance Calculation

    VISION MXL SAFETY DISTANCE CALCULATION The light curtain must be installed at a distance that is greater than or equal to the minimum safety distance S, so that a dangerous point can only be reached after all hazardous machine movements have stopped (Figure 11).

  • Page 12: Vertical Position Of The Light Curtain

    VISION MXL VERTICAL POSITION OF THE LIGHT CURTAIN 30 mm and 40 mm resolution models. These models are suitable for the protection of hands. safety light point of The minimum safety distance S is calculated curtain danger according to the following formula:...

  • Page 13: Multiple Systems

    VISION MXL MULTIPLE SYSTEMS When more than one VISION MXL system is used, precautions must be taken to avoid optical interference between them: install units so that the beam emitted by the Emitter of one system can only be received by the relative Receiver.
  • Page 14 VISION MXL Figure 16 After installing the system, check whether any reflecting surfaces intercept the beams, first in the centre and then in the vicinity of the Emitter and Receiver. During these operations, the red LED on the Receiver should never, for any reason switch off.

  • Page 15: Mechanical Assembly And Optical Alignment

    VISION MXL MECHANICAL ASSEMBLY AND OPTICAL ALIGNMENT The Emitter and the Receiver must be assembled opposite each other (at a distance specified in the technical data sheet). Use the fastening brackets and inserts supplied with the system to place the Emitter and the Receiver so that these are aligned and parallel to each other and with the connectors facing the same way.

  • Page 16: Electrical Connections

    VISION MXL ELECTRICAL CONNECTIONS WARNINGS Before making the electrical connections, make sure that the supply voltage complies with that specified in the technical data sheet. Emitter and Receiver units must be supplied with 24Vdc±20% power supply that guarantee safe isolation from main voltage.

  • Page 17: Receiver Connections

    VISION MXL RECEIVER CONNECTIONS MXL L / MXL T MXL / MXL U M12 - 5 poles (To the sensors M16 - 12 poles connector) 12 poles M16 connector COLOR NAME TYPE DESCRIPTION FUNCTIONING SUPPLY_A : 0Vdc MANUAL SUPPLY_A GREY...
  • Page 18 VISION MXL Example of connection in MANUAL mode of operation with feedback of K1K2 external contactors, pulse OVERRIDE and MUTING timeout = 30 s Figure 18 Example of connection in AUTOMATIC mode of operation with feedback of K1K2 external contactors, OVERRIDE with continuous action and MUTING timeout = 90 min...

  • Page 19: Configuration And Mode Of Operations

    VISION MXL CONFIGURATION AND MODE OF OPERATIONS The mode of operation of VISION MXL curtain is set thanks to connections to be carried out on connector 12 poles M16 of the Receiver (Table 3 and Table 4). AUTOMATIC MODE The VISION MXL light curtain does not dispose of a start/restart interlock circuit in automatic mode.
  • Page 20 VISION MXL OPERATION MODE CONNECTIONS MANUAL without K1-K2 feedback control MANUAL with K1-K2 feedback control Table 4 - Manual Mode SELECTING THE MAXIMUM DURATION OF MUTING AND OVERRIDE TYPE MXL receiver inputs allow to configure the maximum duration of Muting condition (timeout) and the Override type to be adopted.
  • Page 21 VISION MXL SELECTED OVERRIDE MUTING CONNECTION TYPE TIMEOUT Continuous action command 90min Pulse command Continuous action command Infinite Pulse command Table 5 - Selection of Timeout and Override In case the selected timeout is Infinite, please refer to the precautions section in the “MUTING FUNCTIONS”...
  • Page 22 VISION MXL MUTING OVERRIDE FUNCTION The OVERRIDE function must be used when the machine stops due to incorrect Muting activation sequences with the material obstructing the guarded opening. In this situation, the OSSD outputs are not active as the light curtain and/or at least one Muting sensor is occupied.

  • Page 23: Operation And Technical Data

    VISION MXL OPERATION AND TECHNICAL DATA SIGNALS The LEDs showed on Emitter and Receiver units labels are visualized depending on the system operation phase. The tables below show the different signals (ref. Figure 20). EMITTER RECEIVER Figure 20 EMITTER SIGNALS...

  • Page 24: Test Function

    0,5 seconds. REER advises to perform a TEST, as described above, prior to each work cycle, so as to make sure the devices located downstream to the curtain are operating properly.

  • Page 25: Output Status

    VISION MXL OUTPUT STATUS The VISION MXL features two static PNP outputs on the Receiver, the status of which depends on the condition of the protected area. The maximum load allowed is 500mA at 24VDC, which corresponds to a resistive load of 48Ω.

  • Page 26: Technical Specifications

    VISION MXL TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS Safety category Resolutions / N. of beams 30 - 40 mm / 2 - 3 - 4 beam Protected height 160 – 1210 (30mm) / 160 – 1810 (40mm) Working range refer to the tables below...
  • Page 27 VISION MXL MXL / MXL U 40 mm Resolution Models 1054 1204 1354 1504 1654 1804 0,3 ÷ 8 Working range Number of beams Response time 13,5 Overall light curtain ht. 1011 1161 1311 1461 1611 1761 1911 3,25E-8 4,08E-8...

  • Page 28: Dimensions (Mm)

    VISION MXL DIMENSIONS (mm) Figure 22 - Emitter and Receiver Model 1050 1200 1350 1500 1650 1800 1001 1151 1301 1301 1301 1301 1301 1060 1210 1360 1510 1660 1810 (PROTECTED AREA) 2 LS Brackets with 2 mounting inserts 3 LS Brackets with 3 mounting inserts...
  • Page 29 VISION MXL Dimension MXL L Figure 23 Dimension MXL T Figure 24 8540687 • 29/03/2010 • Rev.10...
  • Page 30 VISION MXL Figure 25 - Fastening LS type brackets and inserts (included) 8540687 • 29/03/2010 • Rev.10...

  • Page 31: Checkouts And Maintenance

    Make sure that during each stage of the test object’s movements the red LED on the Receiver is always on. The VISION MXL light curtain does not require any specific maintenance operations; however, periodic cleaning of the front protective surfaces of the Emitter and Receiver optics is recommended.

  • Page 32: Troubleshooting

    Figure 27 EMITTER - Troubleshooting MEANING RED (3) GREEN (2) YELLOW (1) SOLUTION Send the equipment for repair Internal error Blinking to the REER laboratories. RECEIVER - Troubleshooting SEMAPHORE (7) OVERRIDE (8) SENSOR1 (5) SENSOR2 (6) MUTING (4) MEANING SOLUTION RED/...
  • Page 33 OVERRIDE In any case, when faced with a system stoppage, switch the system off and then on again, to exclude any occasional electromagnetic disturbances. Should the problem persist, contact REER’s service department. In case of continued malfunctioning: • make sure that the Emitter and the Receiver are correctly aligned and that the front surfaces are perfectly clean.

  • Page 34: Spare Parts

    VISION MXL SPARE PARTS MODEL ARTICLE CODE AD SR0 AD SR0 Safety Relay 1330902 AD SR0A AD SR0A Safety Relay 1330903 MXJB1 Muting junction Box 1360934 MXJB3 Muting junction Box 1360935 Straight 5-pin M12 female connector, 5 m cable 1330950 CD95 90°...

  • Page 35: Guarantee

    VISION MXL GUARANTEE All new VISION MXL systems are guaranteed by REER for a period of 12 (twelve) months under normal working conditions, against defects due to faulty materials and workmanship. During the aforesaid period, REER promises to replace faulty parts free of charge. This guarantee covers both material and labour.
