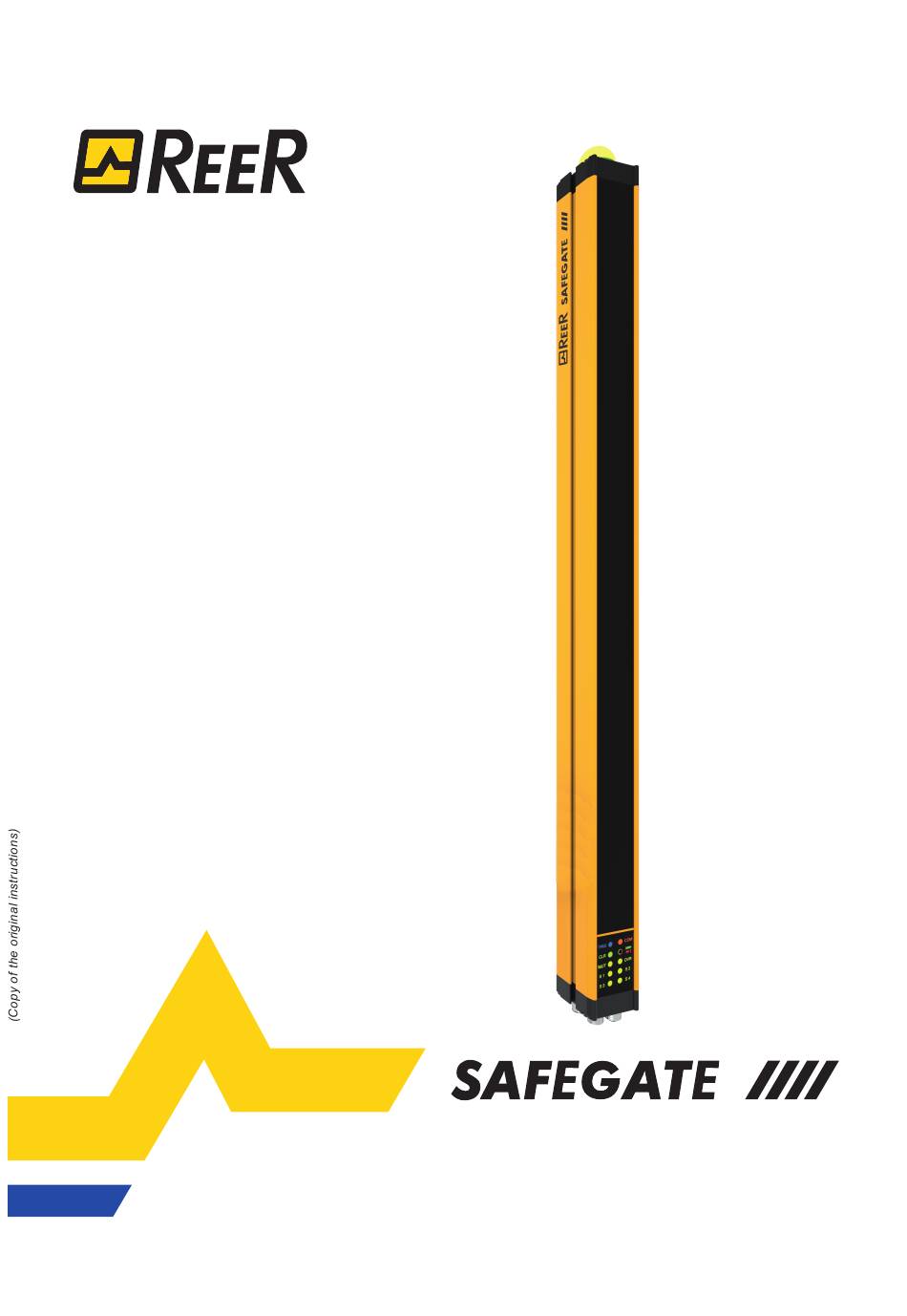

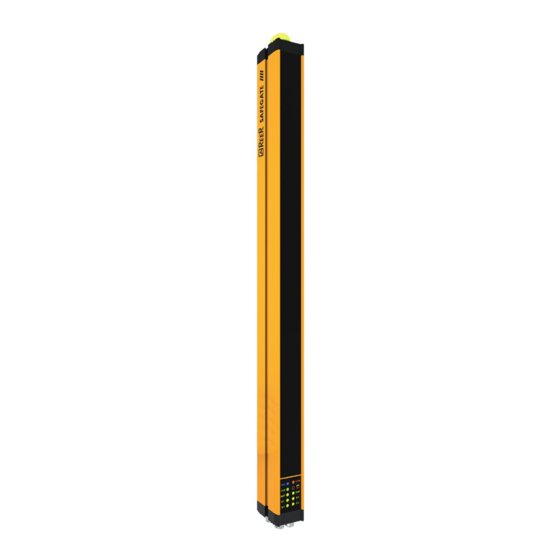

- Page 1 Installation, use and maintenance Type 4 barrier for Access Control with Muting functions integrated...
-
Page 2: Table Of Contents
OVERRIDE WITH KEY WITH SPRING RETURN KEY ................... 37 OVERRIDE WITH PUSHBUTTON ........................37 RESTART (MANUAL OPERATION) ........................38 AUTOMATIC OPERATION ..........................38 MUTING ENABLE............................... 39 Muting Enable active: correct Muting sequence ......................39 REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... - Page 3 Level 1 password ..............................73 Level 2 password ..............................73 CONNECTION WITH SAFEGATE ........................74 DOWNLOAD CONFIGURATION ........................74 CURTAIN PROGRAMMING ..........................75 Level 2 password ..............................75 REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
- Page 4 SAFEGATE DIAGNOSTIC - ERRORS ......................84 CONTROLS, CARE AND MAINTENANCE ................85 PRE-ACTIVATION CHECKLIST ........................85 PERIODIC CONTROL ............................85 CARE AND MAINTENANCE ..........................86 WARRANTY ..........................87 REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
-
Page 5: Introduction
¾ SAFEGATE emitter and receiver ¾ CD-ROM (Containing configuration software and this Manual) ¾ Quick Installation Guide ¾ Mounting accessories bag ¾ Sealing caps for unused connectors REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 6: Glossary
Observe local regulations for waste disposal and do not throw away old products with normal domestic waste. A proper disposal of non-usable products prevents potential negative consequences for the environment and the population. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 7: Safety
The strict and complete observance of all the standards, indications and prohibitions set forth in this manual is a prerequisite for its proper operation. REER S.p.A. therefore, declines any liability in case of non-respect, even partial, of these indications. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 8: Cautions Before Installation
If the device is placed in environments subject to sudden temperature fluctuations, it is imperative to take the appropriate steps to avoid condensation on the lenses, which may impair the detection capability. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 9: List Of Applicable Standards
SIL 3 Safety level ¾ IEC 61508-3:(ed.2) ¾ IEC 61508-4:(ed.2) SILCL 3 ¾ IEC 62061:2005/A2:2015 PL e - Cat. 4 ¾ EN ISO 13849-1: 2015 REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 10: Ec Declaration Of Conformity
TÜV SÜD Product Service GmbH – Zertifizierstelle – Ridlerstraße 65 – 80339 – München – Germany N.B. number: 0123 - Certificate No: Z10 17 05 24820 071 Carlo Pautasso Simone Scaravelli Direttore Tecnico Amministratore Delegato Technical Director Managing director REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 11: System Architecture
Configuration connector and auxiliary signal lamp Main connector Seat for anchorage of any Muting arms Sensor 3-4 Muting Sensor 1-2 connector Muting connector Signals label REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 12: Possible Configurations (Via Optional Accessories)
MAT2XE DX EMITTER EMITTER Optional Optional Accessorio Accessorio Accessory Accessory opzionale opzionale MAT2XR SX MAT2XR DX RECEIVER RECEIVER Optional Optional Accessorio Accessorio Accessory Accessory opzionale opzionale REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... - Page 13 EMITTER / RECEIVER Optional Optional Accessorio Accessorio Accessory Accessory opzionale opzionale MA2P SX 2R MA2P DX 2R REFLECTOR REFLECTOR Optional Optional Accessorio Accessorio Accessory Accessory opzionale opzionale REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
- Page 14 MZT4PE DX EMITTER EMITTER Optional Optional Accessorio Accessorio Accessory Accessory opzionale opzionale MZT4PR SX MZT4PR DX RECEIVER RECEIVER Optional Optional Accessorio Accessorio Accessory Accessory opzionale opzionale REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
-
Page 15: The Muting Function
¾ Muting must be activated at an appropriate point of the machine cycle, i.e. only when there are no risks for the operator. ¾ Muting sensors must be mechanically protected so that any impact does not modify their alignment. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 16: A) 2 Integrated Cross Muting Sensors, Only For Pallet Outputs (Lx)
Î The minimum distance between two consecutive pallets must be less than 10 cm or greater than 32cm. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 17: B) 2 Integrated Parallel Muting Sensors, Only For Pallet Outputs (L2)
For the safe operation of the L2 configuration, it is imperative that horizontal Muting sensors are located within the hazardous area. Î The minimum distance between two consecutive pallets must be greater than 40 cm. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 18: C) 2 Integrated Cross Muting Sensors, For Bi-Directional Gates (Tx)
This mode also allows selecting the maximum duration of the Muting condition (timeout) as 30 seconds or 9 hours. Î Î Other timings are available with programmable programs. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 19: D) 4 Integrated Parallel Muting Sensors, For Bi-Directional Gates (T4)
Other timings are available with programmable programs. Î Î In both modes of operation, the minimum pallet length must be 70 cm (to ensure simultaneous occupancy of all four sensors). REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 20: E) 2 External Cross Integrated Muting Sensors, For Bi-Directional Gates (Tx)
Muting function is disabled. In this mode of operation the maximum duration of the Muting condition (timeout) can be selected in 30 seconds or 9 hours. Î Î Other timings are available with programmable programs. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 21: F) 4 External Parallel Muting Sensors, For Bi-Directional Gates (T4)
Other timings are available with programmable programs. Î Î In both modes of operation, the minimum pallet length must be 70 cm (to ensure simultaneous occupancy of all four sensors). REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 22: Partial Muting
6 of the receiver) must switch from LO to HI (rising edge) before starting the Muting cycle. Î Î Refer to the “OPERATING MODES” section to correctly set this function. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 23: Muting Override
The timer (point 1) and the counter (point 2) are reset if one of the following conditions occurs: A proper sequence of Muting. ¾ A system reset (turning it off and on). ¾ REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 24: Installation
T1 response time of the protection device in seconds T2 machine reaction time to stop the hazardous operation, in seconds. additional distance expressed in mm. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 25: Models With Resolution 30 Mm - 40 Mm
If the resulting distance S is greater than 500 mm, it is possible to recalculate the distance using K = 1600 but in this case the distance must still not be less than 500 mm REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... - Page 26 European standard EN 415-4, which are repeated here. From low level (floor) Above the conveyor (rollers) Device with 3 beams at least Device with 2 beams at least Dimensions in m REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
-
Page 27: Multiple Systems
An incorrect positioning may cause interference, leading to an abnormal operation. Systems side by side: A Adjacent positioning of the two projectors Overlapping systems: B “L” combination: C Cross-positioning between projectors and receivers REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 28: Use Of Deflecting Mirrors
¾ Verify, by positioning near and on the Receiver axis, that in the first mirror you see the whole shape of the Emitter. ¾ It is recommended that you use no more than three deflecting mirrors. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 29: Distance From Reflecting Surfaces
Once the system is installed, verify any reflective surfaces which may intercept the beams, first in the centre and then near the Emitter and Receiver. During this procedure, the red LED on the Receiver must never go off. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 30: Mechanical Assembly And Optical Alignment
If the Emitter and the Receiver are mounted in areas subject to strong vibrations, in order not to compromise the operation of the circuits, it is necessary to use anti-vibration dampers. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 31: Sm - Smo Models Electrical Connections
(3) 0VDC (“Table 4”, page 32) (“Table 3”, page 32) Modello Basic con lampada muting ESTERNA SM REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it CONNESSIONI RICEVITORE (10) OVER1_RESTART 0VDC (2) (1) 24VDC MUT_LAMP (1) (2) N.C. - Page 32 SYNC Output Synchronization with M5 arms LL0->0Vdc; LL1->24Vdc Blue 0VDC Sensor Power Supply 0VDC Negative 0VDC Black Sensor Power Supply 0VDC Negative Grey EARTH CONNECTION REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
-
Page 33: Receiver Connections
(4) SENSOR1 Refer to the section “SELECTION OF SEL_B Grey/ Pink Input MUTING CONFIGURATION OPERATING MODES”, page 35 Red/Blue STATUS Output SYSTEM STATUS PNP active high REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 34: Test Function
(without physically entering the protected area). By means of this function the OSSDs can be switched from ON to OFF as long as the function remains active. Î The minimum duration of the TEST function must be 40 msec. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 35: Selection Of Operating Modes
To program SMP / SMPO models it is mandatory that pin 6 and 11 of the 12 pin connector on the receiver detect 0VDC (or open circuit). REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 36: Edm
OSSD2 (12) Î The time allowed to elapse from the activation of the OSSD outputs and the opening of the FBK contacts must be t <500ms. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 37: Override
The function starts only if the signals are activated at the same time (within a maximum delay of 400 ms) and the button is held pressed for at least 400 ms. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 38: Restart (Manual Operation)
If the SAFEGATE light curtain is used in AUTOMATIC mode, it will not be equipped with a start/restart interlock circuit. In most applications, this safety function is mandatory. Carefully evaluate the risks analysis of your own application. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 39: Muting Enable
The Muting cycle is activated only with the correct transition of the MUTING Enabled ENABLE signal (see figure below) and closes with the release of the last sensor. Muting Enable active: correct Muting sequence REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 40: Appendix A: Sm - Smo Models Wiring Samples
Green ENABLE EXT_ENABLE INPUT MUT_ENABLE (7) Black ENABLE STATUS (12), Red/Blue SEL_A (6) Yellow PE (5) SEL_B (11) Pink * (See diagram 3, 4) Pink/Grey REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... - Page 41 Green ENABLE EXT_ENABLE INPUT MUT_ENABLE (7) Black ENABLE STATUS (12), Red/Blue SEL_A (6) Yellow PE (5) SEL_B (11) Pink * (See diagram 3, 4) Pink/Grey REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
- Page 42 4 SENSORS CONCURRENT, TIMEOUT 30 s OSSD2 (4) OSSD2 (4) (Green) (Green) 4 SENSORS CONCURRENT, TIMEOUT 9 hours OSSD1 (3) OSSD1 (3) (White) (White) PE (5), Pink REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
- Page 43 4 SENSORS CONCURRENT, TIMEOUT 30 s STATUS (12) OSSD2 (4) (Blue/Red) (Green) 4 SENSORS CONCURRENT, TIMEOUT 9 hours OSSD2 (4) STATUS (12) (Green) (Blue/Red) PE (5), Pink REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
-
Page 44: Smp - Smpo Models Electrical Connections
(3) 0VDC (“Table 4”, page 45) (“Table 3”, page 45) Modello Basic con lampada muting ESTERNA SM REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it CONNESSIONI RICEVITORE (10) OVER1_RESTART 0VDC (2) (1) 24VDC... - Page 45 SYNC Output Synchronization with M5 arms LL0->0Vdc; LL1->24Vdc Blue 0VDC Sensor Power Supply 0VDC Negative Black 0VDC Sensor Power Supply 0VDC Negative Grey EARTH CONNECTION REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
-
Page 46: Receiver Connections
(2) SENSOR2 (3) 0VDC (2) SENSOR4 (4) SENSOR3 (1) 24VDC (5) PE (5) PE (3) 0VDC (4) SENSOR1 (“Table 8”, page 48) (“Table 7”, page 48) REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... - Page 47 Active Muting 24VDC White USB+ In/Out USB data Blue 0VDC Muting Lamp 0VDC 0VDC Black VBUS Input USB Power supply 5VDC USB- Grey In/Out USB data REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
-
Page 48: Test Function
(without physically entering the protected area). By means of this function the OSSDs can be switched from ON to OFF as long as the function remains active. Î The minimum duration of the TEST function must be 40 msec. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 49: Selection Of Operating Modes
The time allowed to elapse from the activation of the OSSD outputs and the opening of the FBK contacts must be the one indicated in the figure below. SOFTWARE CONFIGURATION: FBK K1/K2 reading delay programming: Range allowed: 100ms to 1300ms (100ms steps). REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 50: Override (Pc Programming)
The function starts only if the signals are activated at the same time (within a maximum delay of 400 ms) and the button is held pressed for at least 400 ms. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 51: Restart (Manual Operation)
If the SAFEGATE light curtain is used in AUTOMATIC mode, it will not be equipped with a start/restart interlock circuit. In most applications, this safety function is mandatory. Carefully evaluate the risks analysis of your own application. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 52: Muting Enable
MUTING ENABLE/DISABLE. Thanks to the programming software, the operator can choose to enable the MUTING ENABLE signal (in this case MUTING ENABLE/DISABLE active). Muting Enable/Disable active: Correct Muting sequence REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 53: Partial Muting
This activation only applies to a STAND-ALONE MUTING CYCLE; it is therefore necessary to reconfirm the partial Muting deactivation before any new Muting function request (refer to the timing below). REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 54: Appendix B: Smp - Smpo Models Wiring Sample
ENABLE Black N.C. EXT_ENABLE PARTIAL MUTING ON SEL_A / PARTIAL MUTING PARTIAL_MUTING (6) Yellow N.C. PARTIAL MUTING OFF N.C. SEL_B (11), Pink/Grey PE (5), Pink REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 55: S Models Electrical Connections
(Refer to paragraph “TEST FUNCTION”) (8) PE 24VDC 24VDC Condition not allowed 24VDC (2) (1) OSSD1 REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it OSSD2 (3) (7) 0VDC EDM (4) (6) SEL_B SEL_A (5) - Page 56 MANUAL connected to : 24VDC (PIN 2) (through the 24VDC (through series of with EDM 24VDC (PIN 2) RESTART pushbutton) contatcts N.C. of external relays) REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
-
Page 57: Test Function
SEL_A (5) SEL_A (5) Grey Grey RESTART SEL_B (6) SEL_B (6) Pink Pink +24Vdc EDM (4) EDM (4) Yellow Yellow PE (8) GND (7) Blue REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 58: Light Signals
Refer to the following tables to recognize active alarms. EMITTER SIGNALS TRI-COLOUR LED GREEN YELLOW MEANING Power on - Initial Test Flashing Fail condition Curtain under test Normal operation REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 59: Receiver Signals
Yellow Override request Flashing Yellow Sensor interrupted Blue Orange No barrier programmation Flashing Flashing Blue Orange Detected double programmation Flashing Flashing Flashing (hardware and software) REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 60: Receiver Signals (Integrated Lamp)
Curtain awaiting RESTART (clear gate) Green Normal operation (clear gate) Occupied gate Red Flashing Detected failure (-> DIAGNOSTICS) Yellow Muting active Yellow Flashing Override active Yellow/Red Override request REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 61: Fault Diagnosis - Emitter
Check pin 2 and 4 connections on the main connector Internal error Contact ReeR after sales service SYNC wrong wiring Check pin 2 connection on the sensors connectors REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 62: Fault Diagnosis - Receiver
Short-circuit on pin 12 or auxiliary lamp connector Receiving beams failure Contact ReeR after sales service Verify the presence of another curtain not correctly positioned Interfering Emitter Detected (see section "Multiple Systems") REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 63: Technical Specifications
RX cap, LED technology Operating temperature -30°C ÷ +55°C Degree of protection IP 65 and IP 67 Section Size (l x h) 50mm x 55mm REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... - Page 64 185,7 172,7 161,6 151,7 143,1 135,2 128,4 122,0 116,4 111,1 106,5 97,7% 97,7% 97,7% 97,8% 97,8% 97,8% 97,8% 97,8% 97,9% 97,9% 97,9% 97,9% 97,9% 97,9% REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
- Page 65 With 4 M5 (TX + RX) parallel photocells Number of single photocell beams Response time (ms) Working range (m) 0...3,5 Sensor beams coding SYNCHRO signal on TX (single M5) 2,73E-07 REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
-
Page 66: Mechanical Dimensions
1770 1650 1745 1800 1920 1895 1800 1950 2070 2045 1950 2100 2220 2195 2100 2250 2370 2345 2250 Fastening inserts with 2 M6x16 pins REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... - Page 67 Mechanical dimensions Models Multibeam Models Multibeam with Lamp without lamp MODEL A1 (mm) A2 (mm) B (mm) 1010 1110 1085 LL fixing brackets REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
-
Page 68: Accessory Dimensions
MAT2X - T arms with 2 crossed TX/RX beams MAT2X - braccetti T a 2 raggi incrociati TX/RX MAT2XE SX MAT2XE DX EMITTER EMITTER MAT2XR SX MAT2XR DX RECEIVER RECEIVER REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... - Page 69 MAL2P TRX V - braccetti L a 2 raggi paralleli con riflettore alta velocità MA2P SX 2R V MA2P DX 2B V REFLECTOR EMITTER / RECEIVER REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
- Page 70 MZT4P - T arms with 4 adjustable M5 parallel beams MZT4P - braccetti T a 4 raggi paralleli regolabili M5 MZT4PE SX MZT4PE DX EMITTER EMITTER MZT4PR SX MZT4PR DX RECEIVER RECEIVER REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it...
-
Page 71: Software Safegate Configurator
¾ CONNECTION ¾ PROGRAMMING ¾ DOWNLOAD CONFIGURATION ¾ CONFIGURATION VALIDATION AND LOADING ¾ PRINT REPORT ¾ CURTAIN ACTIVATION ¾ CURTAIN CONDITION MONITORING ¾ ERRORS HISTORY REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 72: The Toolbar
CONFIGURATION HISTORY 12-> ERRORS DOWNLOAD (refer to the errors table at the end of the manual) 13-> ERROR HISTORY CANCELLATION 14-> CHANGE PASSWORD 15-> CONFIGURATION DELETION REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 73: Graphical Interface
SAFEPASS password (all capital letters). The operator who knows the level 2 password is enabled to enter a new level 2 password (alphanumeric, max 8 characters). REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 74: Connection With Safegate
¾ In order to view the curtain configuration, it is necessary to request a download of the configuration (icon Î Î Otherwise, the SAFEGATE configuration procedure is required. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 75: Curtain Programming
This SAFEGATE system report assumes that configuration has been performed correctly with the SCS configuration software, in compliance with the regulations stated in the SAFETY section. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 76: Print Report Configuration
, the operator can download the Errors Log file containing Error Code, Micro involved and Error Address. Please refer to the errors table at the end of the manual to follow the appropriate corrective action. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 77: Safegate Activation
Time reading FBK K1/K2: Lets you set a delay in reading the external FBK signal. Possible values: from 100 ms to 1300 ms (with 100 ms steps). REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 78: Setting Muting Parameters
If selected, it allows Muting activation only if it is time >150 ms between activation of sensor 1 and sensor 2 (or sensor 4 and sensor 3). Obligatory Lamp: If selected, the Muting lamp is compulsory. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 79: Sequential" Muting
SENSOR, closure occurs after the release of the last but one sensor. Obligatory Lamp: If selected, the Muting lamp is compulsory. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 80: L" Muting
If selected, it allows Muting activation only if it is time >150 ms between activation of sensor 1 and sensor 2 (or sensor 4 and sensor 3). Obligatory Lamp: If selected, the Muting lamp is compulsory. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 81: T" Muting
If selected, it is only possible to activate Muting if a time > 150 ms elapses between the activation of Sensor 1 and Sensor 2 (or Sensor 4 and Sensor 3). Obligatory Lamp: If selected, Muting lamp is compulsory. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 82: Partial Muting
Pay attention to the two highlighted zones in the boxes: in the example, the Partial muting option for the first 10 beams was selected. THE BEAMS WITH Partial Muting FUNCTION ARE HIGHLIGHTED IN YELLOW, WHILE GREEN COLOURED BEAMS WORK NORMALLY: ACTIVE CURTAIN. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 83: Muting Override
BREAK condition with an OVERRIDE request. Timeout: It allows you to set the time, which varies from 10 seconds to infinity, within which the function Override must end. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 84: Safegate Diagnostic - Errors
Muting sensors configuration error ¾ Verify position of sensor 2 with the software ¾ If no error is detected, return the barrier to ReeR to be repaired REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 85: Controls, Care And Maintenance
Verify protected zone resolution: For the test, use the correct test object (matt cylinder of the diameter equal to the resolution of the curtain. Refer to the Accessories/Spare Parts section for the correct ordering code for the test object. REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 86: Care And Maintenance
It is therefore essential to pay particular attention during the cleaning steps of the curtain front window, particularly in environments where abrasive powders are present. (e.g. cement plants, etc.). REER S.p.A. - 32 via Carcano - 10153 Torino Italia Internet: www.reer.it - e-mail: info@reer.it... -
Page 87: Warranty
The validity of the warranty is subject to the following conditions: Î Î The failure must be reported by the user to REER within twelve months from the date of delivery of the product. Î Î...
