EOS2 SAFETY LIGHT CURTAIN
Multiple systems
When several EOS2 are used, precautions must be taken to prevent optical interference
between these: position the elements so that the beam of the Emitter of one system is
received only by its respective Receiver.

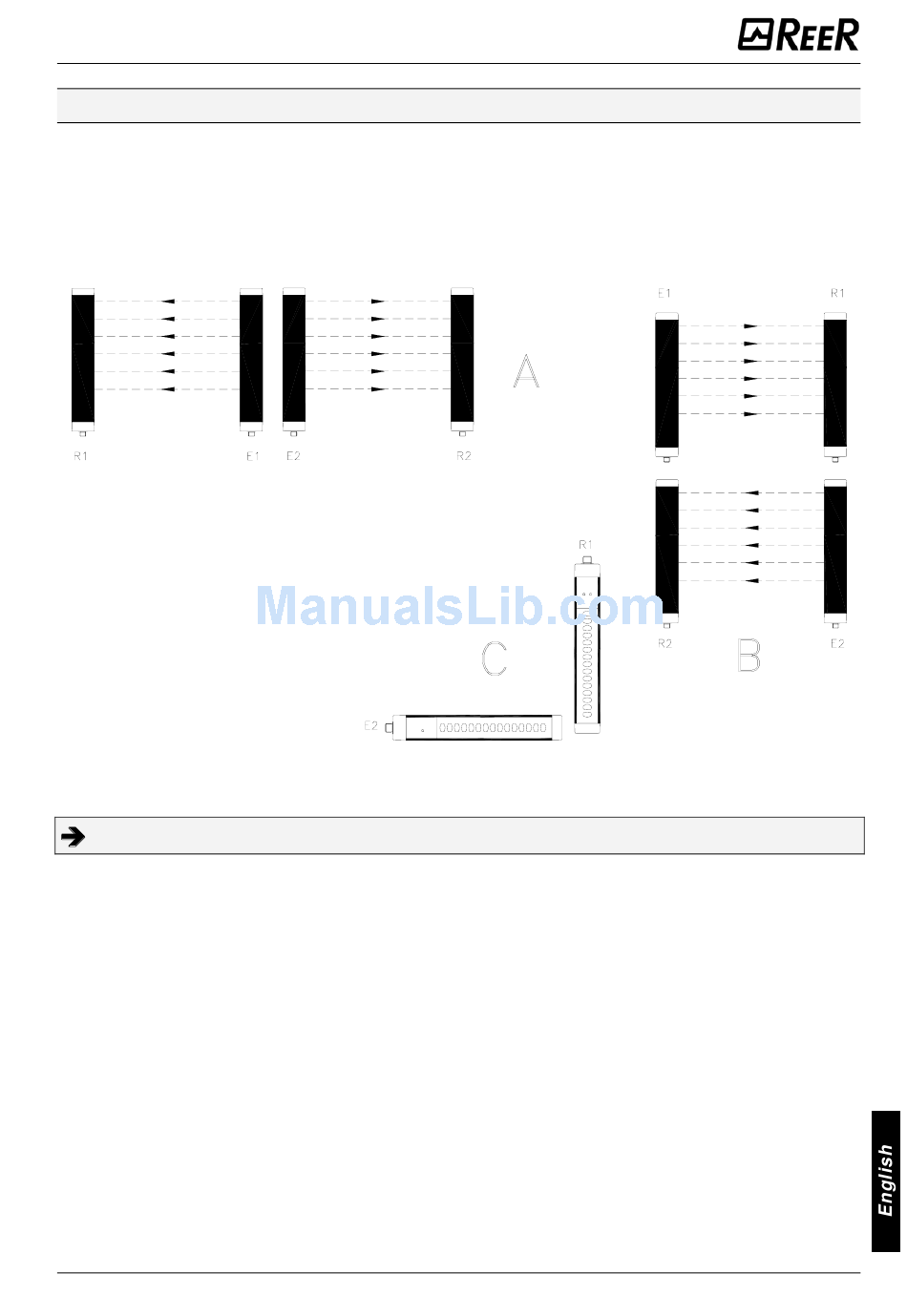

Figure 6 provides examples of correct positioning of two photo-electric systems. Incorrect
positioning may cause interference, with possible malfunction of the system.
Systems installed side by side: A
Adjacent positioning of the two emitters
Systems installed one above the other: B
"L" installation: C
Crossed positioning between emitters and
receivers
This precaution is not necessary in the case of MASTER/SLAVE systems.
8540738 • 2nd December 2009 • Rev.2
Figure 6 – Multiple systems
9
