SLAVE/SLAVE2 MODELS - M12, 5-pin primary connectors.
MASTER MODELS - M12, 5-pin Secondary Connector.
SLAVE2 MODELS - M12, 5-pin Secondary Connector.

Warnings regarding connection cables

•
For connections with a length of more than 50m, use cables having a cross-section
of at least 1mm
•
It is good practice to keep the power supply of the light curtain separate from that
of other electric power equipment (electric motors, inverters, frequency variators)
or other sources of disturbance.
• Connect the Emitter and Receiver to the ground outlet.
•
The connection cables must follow a different route from that of other power
cables.
18
PIN
1
2
3
4
5
PIN
1
2
3
4
5
.
2
COLOUR NAME
Brown 24VDC
White LINE_A
Blue 0VDC
Black LINE_B
Grey

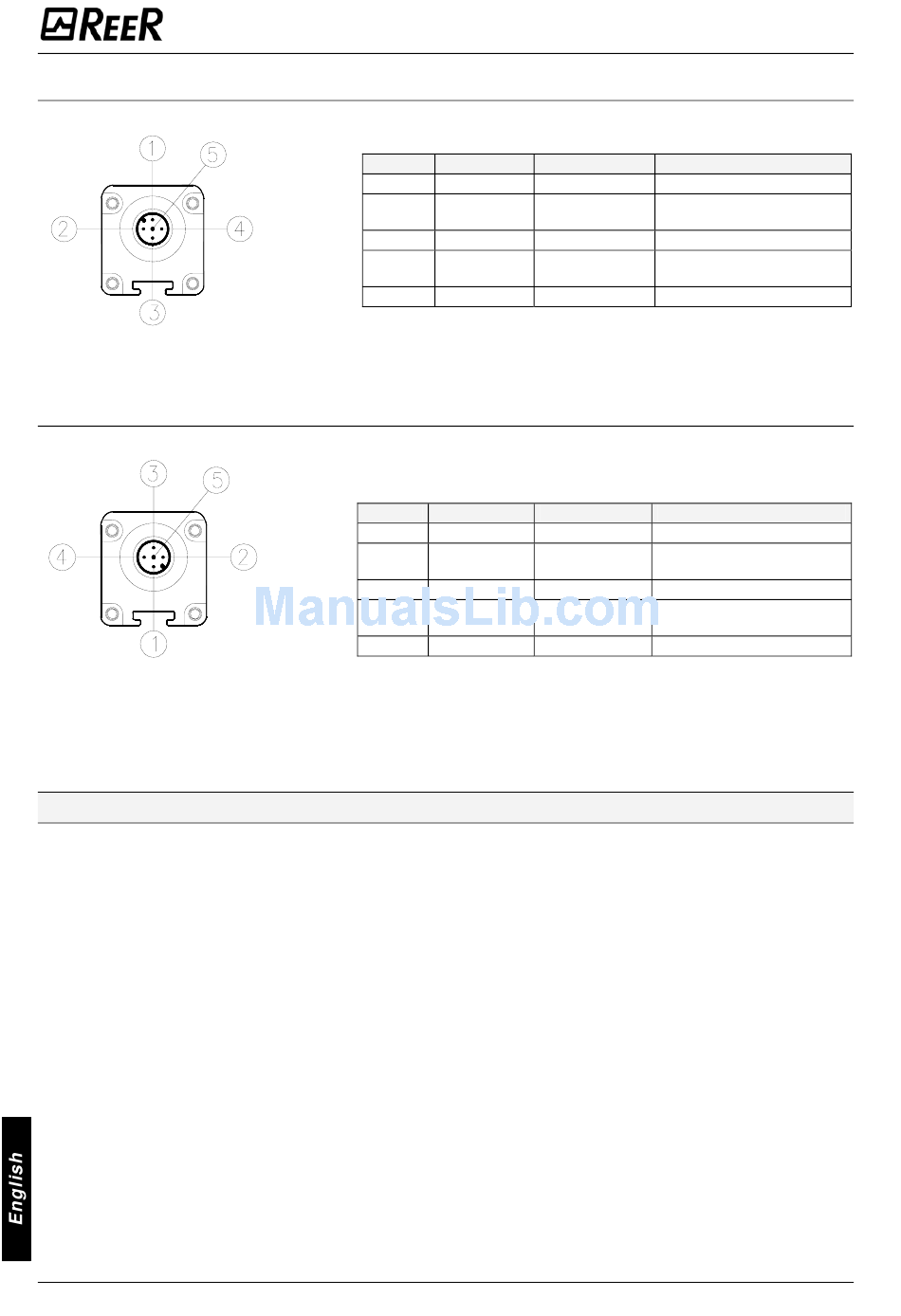

Table 10 - M12, 5 pins Primary Slave RX
COLOUR NAME
Brown 24VDC
White LINE_A
Blue 0VDC
Black LINE_B
Grey
Table 11 - M12, 5 pin Secondary RX
EOS2 SAFETY LIGHT CURTAIN
DESCRIPTION
24VDC power supply
Communication
MASTER-SLAVE
0VDC power supply
Communication
MASTER-SLAVE
FE Ground connection
DESCRIPTION
24VDC power supply
Communication
MASTER-SLAVE
0VDC power supply
Communication
MASTER-SLAVE
FE Ground connection
