EOS2 SAFETY LIGHT CURTAIN

Electrical connections

WARNINGS
Before making electrical connections, make sure that the mains voltage matches the one
indicated in the technical data.
The Emitter and Receiver must be powered at a 24Vdc±20% (PELV, in compliance with
the standard EN 60204-1 (Chapter 6.4)).
The electrical connections must be made according to the wiring diagrams provided in
this manual.
In particular, do not connect other devices to the connectors of the Emitter and Receiver.
To guarantee reliable operation using a diode bridge power supply unit, its output
capacity must be at least 2000μF for each A absorbed.

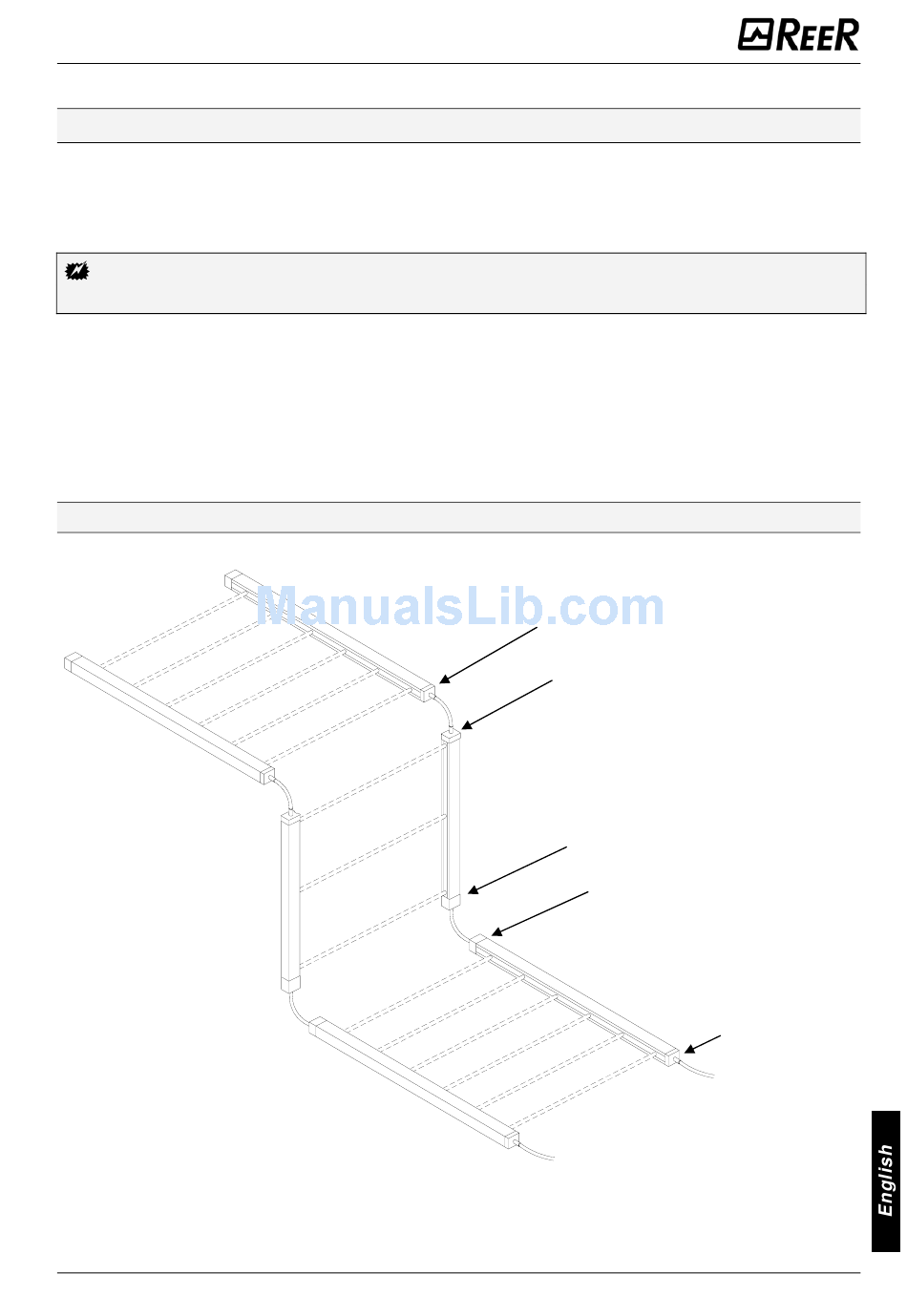

Layout of the connectors on MASTER/SLAVE light curtain

8540738 • 2nd December 2009 • Rev.2
SLAVE
SLAVE 2
Figure 16 - Connector layout
SLAVE primary connector
SLAVE2 secondary connector
SLAVE2 primary connector
MASTER secondary connector
MASTER
MASTER primary
connector
15
