EOS2 SAFETY LIGHT CURTAIN

Master/Slave Positioning

SLAVE

SLAVE2

SLAVE

MASTER

MASTER

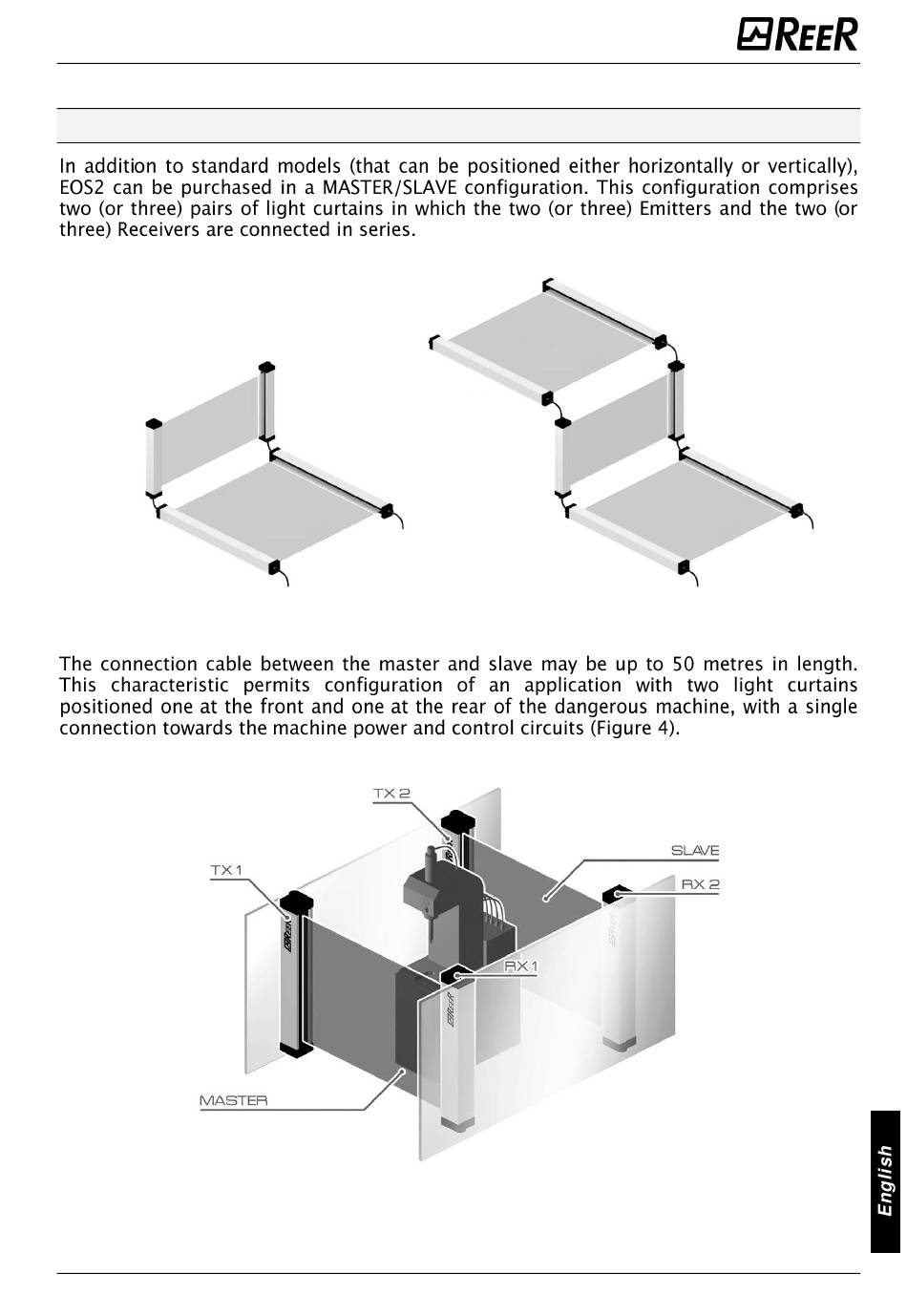

Figure 3 – Examples of Master/Slave configurations

Figure 4 - Example of Master/Slave application with mechanical guards

8540738 • 05/12/2017 • Rev.20
