EOS2 SAFETY LIGHT CURTAIN

Examples of connection with REER safety modules

For correct operation
of the light curtain,
connect pins 2 and 4
of the Emitter as
indicated in Table 4.
8540738 • 2nd December 2009 • Rev.2

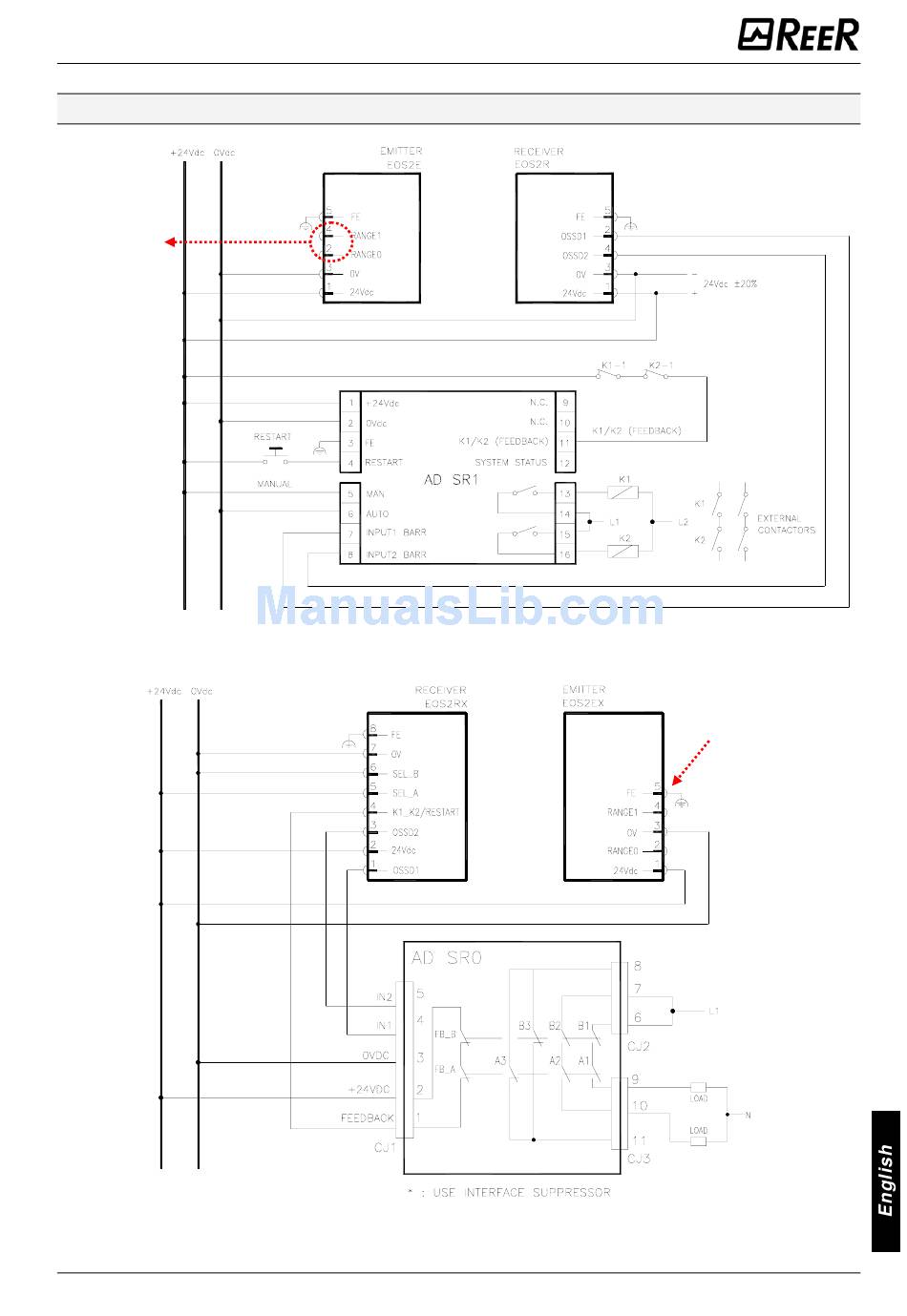

Figure 21 - EOS2 A: Manual operation with AD SR1 module
Figure 22 - EOS2 X: Automatic operation with AD SR0 module
For correct operation
of the light curtain,
connect pins 2 and 4
of the Emitter as
indicated in Table 4.
21
