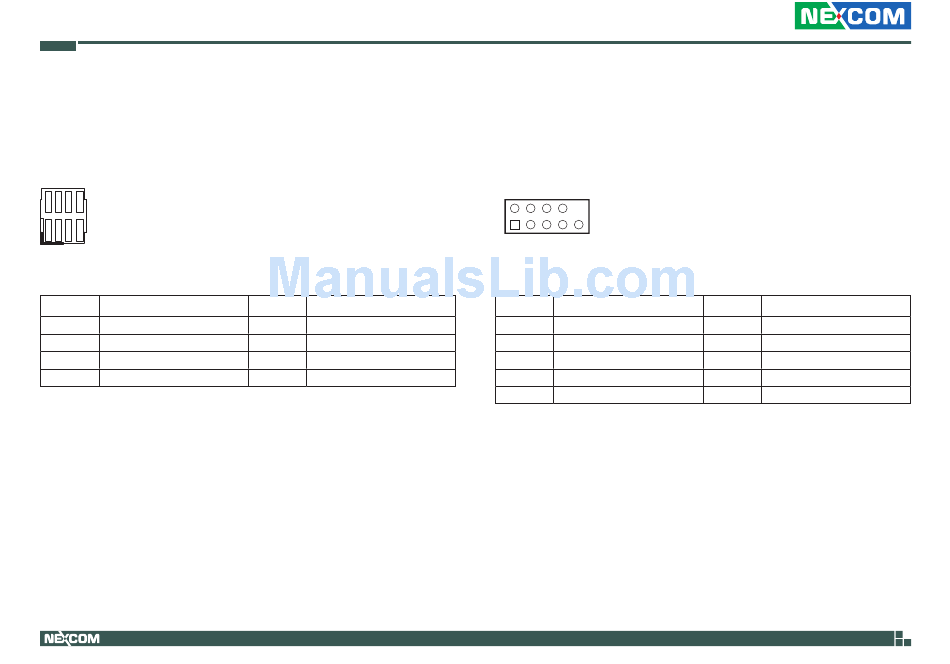

Chapter 2: Jumpers and Connectors

SPI Flash Programmable Connectors

Connector type: 2x4 8-pin header
Connector location: SPI_1
Pin
Definition
1
+3V_SPI
3
S_SPI_CS1#Q
5
S_SPI_MISO_2Q
7
(NC)
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GND
4
S_SPI_CLK_2Q
6
S_SPI_MOSI_2Q
8
(NC)

Front Panel Connector

Connector type: 2x5 10-pin header
Connector location: F_PANEL1
2
1
9
Pin
Definition
1
HDLED+
3
HDLED-
5
GND
7
RSTCON#_PANEL
9
(NC)
14
Pin
Definition
2
PLED+
4
PLED-
6
F_PWRBTN#
8
GND
10
(kill pin)
