M o d e l 2 0 0 9

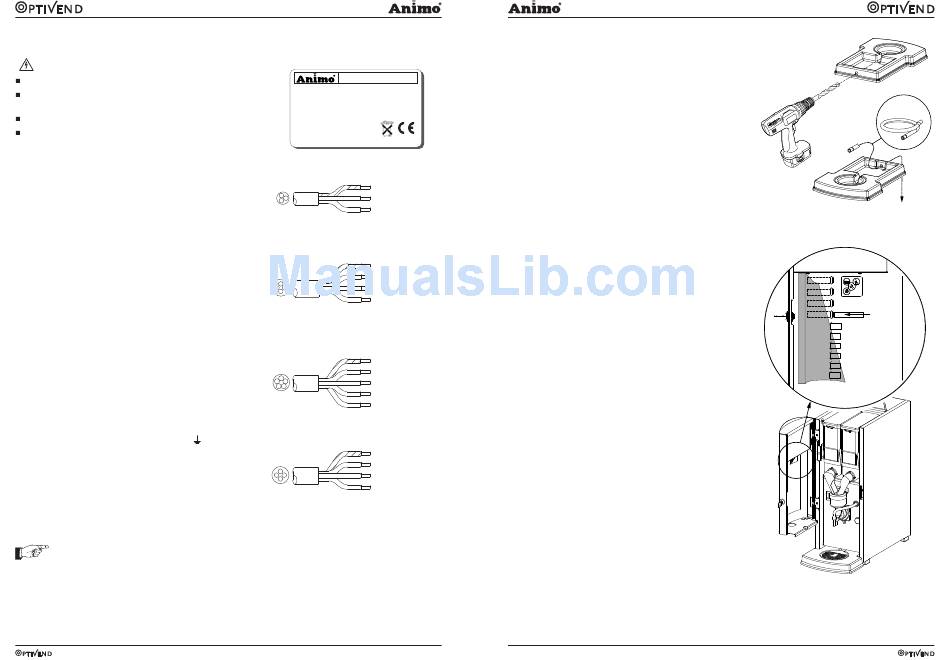

3.4 Electrical connection
WARNING
Supply voltage and frequencies can differ per country.
Check if the appliance is suitable for connection
to the local power mains.
Check if the details on the type plate (¿ g. 6) correspond.
Connect the appliance to an earthed wall socket.
The earthed wall socket and the fused group with a
main switch belong to the electrical installation.
No heavy machines that could cause variations in
power when being switched on, can be connected to
this group.
A machine with power current (two or three phase) is
supplied from the factory without plug. At delivery, the
machine must be provided with an electrically suitable
plug as advised and provided by the installer.
Depending on the appliance's electrical set-up, it must
be connected as below.
(¿ g. 7)
1 N~ 230V
(3 core cable)
(¿ g. 8)
2 N~ 400V
(4 core cable)
(¿ g. 9)
3 N~ 400V
(5 core cable)
(¿ g. 10) 3 ~
230V
(4 core cable)
The following points should be observed when wiring
a new plug:
1. The GREEN/YELLOW colored wire [ EARTH ] should
be connected to the terminal which is either marked
with the letter [ PE ], the "earth" symbol ( ), or
colored green/yellow.
2. The BLUE colored wire [ NEUTRAL ] should be
connected to the terminal which is either marked with
the letter [ N ] or colored black.
3. The BROWN, BLACK and GRAY colored wire
[PHASE ] should be connected to the terminal which
is either marked with the letter [ L1, L2 and L3 ].
If the installation instructions are not met,
the supplier cannot be held liable for any
consequences.
Premium coffee makers &
beverage equipment
OptiVend [ type ]
[ Art. Nr. ]
/
[ Mach. nr. ]
_______ V 50-60Hz ______ W
M A D E I N H O L L A N D
Gr/Gl - Aarde (PE)
3
Blauw - Nul
Bruin - Fase
Gr/Gl - Aarde (PE)
Blauw - Nul
4
Bruin - Fase 1 (L1)
Zwart - Fase 2 (L2)
Gr/Gl - Aarde (PE)
Blauw - Nul
5
Bruin - Fase 1 (L1)
Zwart - Fase 2 (L2)
Grijs - Fase 3 (L3)
Gr/Gl - Aarde (PE)
Bruin - Fase 1 (L1)
4
Zwart - Fase 2 (L2)
Grijs - Fase 3 (L3)
60
08/2011 Rev. 7.4
3.5 Drip tray discharge
The overÀ ow hose of the machine empties into the drip
tray. It is possible to ¿ t a drain hose to the drip tray.
Drill a drain hole in the back and ¿ t the drain hose in
accordance with ¿ g. 11.
Fig. 6
(N)
(L)
3.6 Applying recipe strips
Fig. 7
The factory does not yet apply the recipe strips next to
the buttons. The device is always delivered together
with a sheet of various recipe strips.
Please slide the recipe strip that is applicable to your
(N)
situation in the window next to the corresponding button
(¿ g. 12).
Section 3.7 Standard recipe settings will show you
Fig. 8
which recipes (drinks) correspond to the factory setting.
Table 7 = OptiVend Choco / 1 / 2 / 3 / 4
Table 8 = OptiVend 1 TS/TL / 2 TS / 3 TS / 4 TS
Table 9 = OptiVend HS / HS DUO / HS DUO Cappuccino
(N)
The optional recipes mentioned in this tables can only
be programmed by your service technician.
Fig. 9
Fig. 10
08/2011 Rev. 7.4
M o d e l 2 0 0 9
Ø 13mm
61
Fig. 11
Fig. 12
