Animo OptiVend Choco Manual page 11

M o d e l 2 0 0 9
Table 9
OptiVend HS OptiVend HS
DUO
1 Coffee Coffee
- -
2
3 Coffee Coffee
- -
4
1 1
3 3
Button
1 Coffee Black Coffee small
2 Coffee Creme Coffee large
3 Espresso Hot Water
4 Hot Water Double Coffee small
5 Jug Coffee 1/2 Double Coffee large
6 Jug Coffee Double Hot Water
7 Jug Hot Water 1/2 Double Jug Coffee
8 Jug Hot Water Jug Hot Water
9 Jug Coffee
10 Double jug Hot Water
Double Espresso
Decaf
Coffee small
Coffee large
# = can be programmed by dealer only
64
OptiVend HS DUO OptiVend 3 OptiVend 3 TS
Cappuccino Sugar Sugar
Coffee Coffee Coffee
Topping / Chocolate - -
Coffee Topping Topping
Topping / Chocolate Sugar Sugar
1
2
1 1
3 3 3
4
4
Coffee small Coffee Creme Coffee Creme
Cappuccino Coffee Milk Coffee Milk
Hot Water Coffee Sugar Coffee Sugar
Double Coffee small Coffee Milk Sugar Coffee Milk Sugar
Double Cappuccino Espresso Cappuccino
Double Hot Water Double Espresso Hot Water
Jug Coffee Espresso Sugar Jug Coffee 1/2
Jug Hot Water Cappuccino Jug Coffee
Double Jug Coffee Cappuccino Sugar Jug Hot Water 1/2
Double jug Hot Water Hot Water Jug Hot Water
Coffee large Decaf * Double Espresso
Hot Milk Hot Milk * Decaf *
Hot Chocolate Jug Hot Water Hot Milk *
Double Hot Chocolate Jug Coffee Espresso
Double Hot Milk Coffee latte Coffee latte
Coffee Miilk Latte Macchiato Latte Macchiato
Double Coffee Miilk Coffee Black Coffee Black
Coffee Choc Cold water * Cold water *
Double Coffee Choc Jug Hot Water 1/2 Cappuccino Sugar
Cafe Latte Jug Coffee 1/2 Espresso Sugar
Double Cafe Latte Soup * Soup *
Tea * Tea *
08/2011 Rev. 7.4

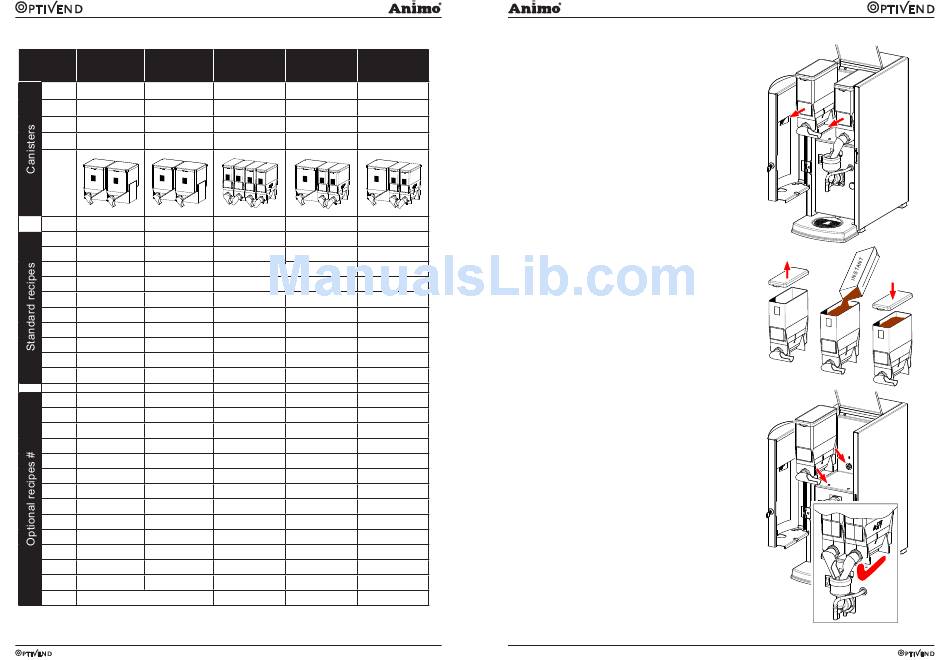

3.8 Filling the canisters
Fill the ingredient canisters with the relevant instant
product according to previous table 7, 8 or 9.
1. Open the device lid (¿ g. 15).
2. Turn the dispensing outlet into a horizontal
position.
3. Move the canister(s) forward and take them out of
the device.
4. Fill the canister(s) with the appropriate products
(¿ g. 16). See table 7, 8 or 9.
5. Place the canister(s) back in the right order. Make
4
sure that the drive mechanism of the canister falls
over the cog in the back wall and that the fastening
ridge goes into the hole of the plate (¿ g. 17).
6. Turn the dispensing outlet back to their correct
position (¿ g. 18)
08/2011 Rev. 7.4
M o d e l 2 0 0 9
65
Fig. 15
Fig. 16
Fig. 17
