Safety provisions

This device has the following safety provisions:
Temperature safety device
The device has a temperature safety device that is accessible from the outside. It is located at the
back of the device (¿ g. 1-7). The safety device turns off the heating element if the temperature is too
high. This is usually caused by not descaling the device in time.
On/off switch
The ON/OFF switch turns the device ON and OFF. The device can still be charged after it is switched
OFF! In order to ensure that the machine is entirely uncharged, please unplug it.
Emergency stop multicup (Jug)
The dispensing of a jug recipe is stopped simply by pressing any recipe button. The selected jug
recipe is then cancelled and one more cup is dispensed.
Display warnings
Technical malfunctions are shown on the display by means of an error code (e.g. E1). In that case,
read 12. Troubleshooting.
Drip tray full warning
If the drip tray is too full, this is shown on the display [ Out of order Drip tray full] and the operating
panel is disabled. Once the drip tray is emptied, the display message automatically disappears and the
operating panel becomes functional again.
Devices and the environment
Packaging materials
In order to prevent that your new purchase is damaged, the machine is carefully packaged.
The packaging does not harm the environment and mainly consists of the following materials:
• Corrugated cardboard
• Filler elements made of polyurethane foam >PUR< covered in a polyethylene ¿ lm >PE-HD<.
Contact the waste depot of your local council for the removal of these materials.
Replacement of the device
Not one device lasts forever. If you wish to replace your device, it is usually taken back in consultation
with your dealer. If not, please contact your local council for the possibilities of re-using the materials.
All synthetic parts are coded in a standardised way. Device parts such as circuit boards and their
components come under electric and electronic waste. The metal casing is made of stainless steel
and be entirely taken apart.
52 08/2011 Rev. 7.4
M o d e l 2 0 0 9
1. GENERAL

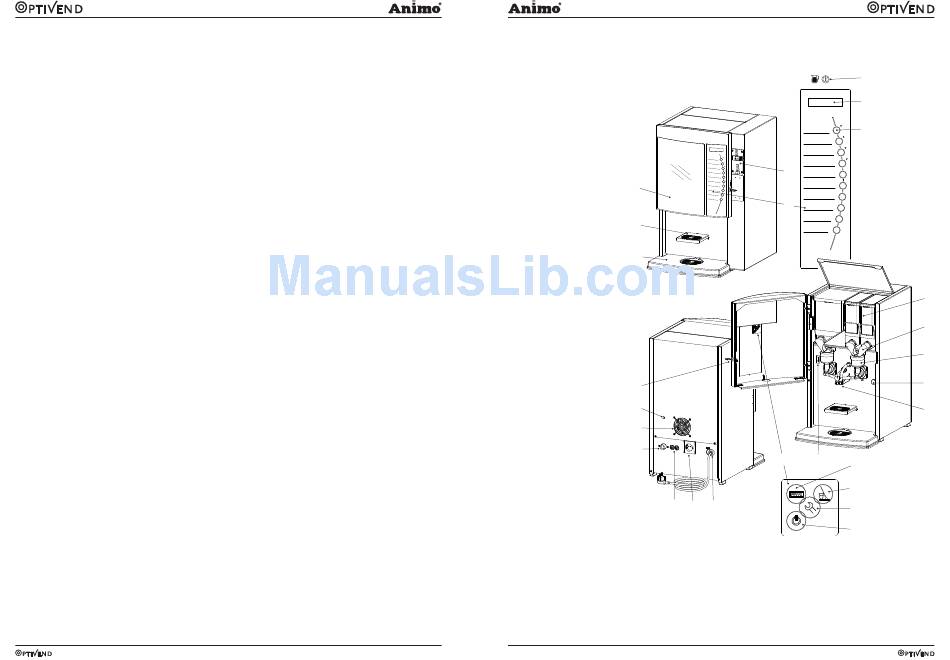

Major parts (fi g.1)
1. Illustration
2. Cups tray (TS models)
3. Drip tray
4. Operating panel
4.1 Jug lock
4.2 Display
4.3 Drink selection 10x
5. Coin mechanism (optional)
1
6. Door lock
7. Dry-boil protection
8. Fan
2
9. Water connection
10. Water connection for
3
cooling unit *
11. Power supply for
cooling unit *
12. Electricity lead
13. Operator panel
13.1 Counters
13.2 Clean mixer(s)
13.3 Operator menu
13.4 Stand-by
6
14. ON/OFF switch
15. Drink outlet &
7
Hot- / Cold * water outlet
8
16. Boiler draining tube
17. Mixer unit(s)
9
18. Dispensing pipe(s)
19. Ingredient canister(s)
10
* OptiVend Hot & Cold execution (option)
08/2011 Rev. 7.4
4.1
4.2
4.3
5
4
13
14
13.1
13.2
11 12
13.3
13.4
OptiFresh 3 TS Hot&Cold + coin system is model shown
53
19
18
17
16
15
Fig. 1
