8.4 Cleaning the mixer unit
OptiVend 3, 4,
(weekly)
3TS, 4TS, HS, HS duo
If the machine is used very frequently, carry
out this cleaning procedure up to a few times
a week!
Duration: approx. 8 min.
Requirements:
- Normal detergent / coffee deposit remover
- Rinsing facility
- Tea towel
- Hygiene set (for quick cleaning)

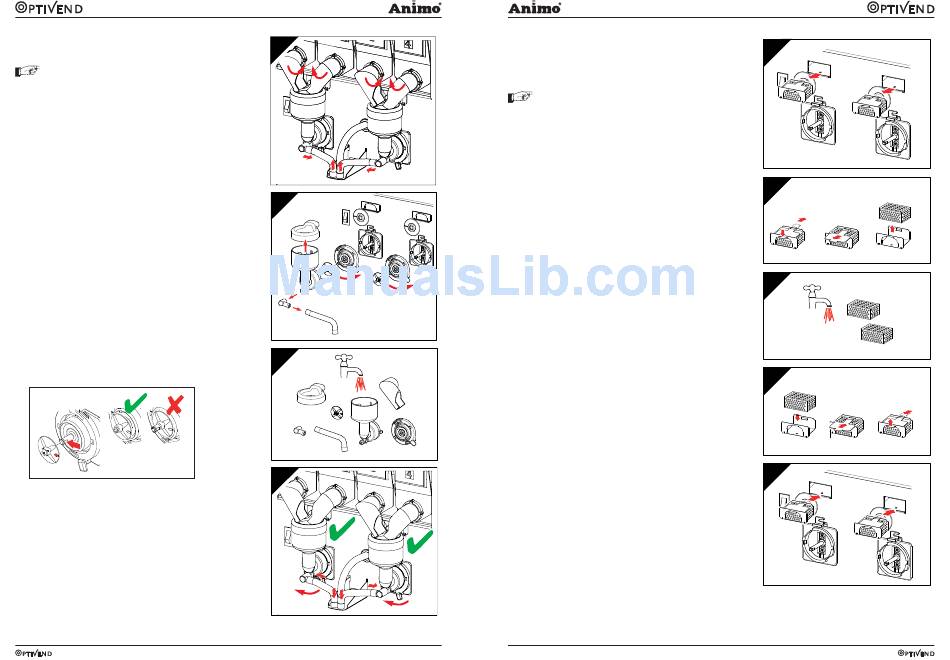

Cleaning mixer(s) (¿ g. 40):
1. Remove the tubes between the mixer(s) and the
outlet. Remove the ingredient canisters from the
device (turn the dispensing outlets up so that no
ingredients fall out).
2. Turn the green mounting ring to the right and
remove the mixer casing by pulling it towards you.
3. Pull the mixer fan towards you to remove it from the
mixer axis and remove the green mounting ring.
4. Clean the removed parts in warm water with a
normal detergent.
5. Fit the parts in the opposite order.
CAUTION: ensure that the arrow on the mixer fan
points towards the À at side of the axis and push
the mixer fan over the axis until you hear a clear
'click' (don't push it too far down!).
6. Place the mixer case back onto the mixer. Turn the
green mounting ring to the left.
7. Secure the tubes between the mixer(s) and the
outlet. Place the canisters back and turn the
dispensing elements back into the correct position.
Switch the device back on and try a few test drinks
to check the correct operation.
* Use a normal detergent.
In case of persistent stains, use our tried and tested
coffee fur remover!
1
2
2x
2x
2x
2x
3
Clean !
4
Fig. 40a
80
8.5 Cleaning the mixer extraction fi lter
(monthly)
First carry out chapter 8.3 or 8.4 Cleaning the mixer unit
(weekly)!
If the machine is used very frequently, carry
out this cleaning procedure every week!
Duration: approx. 2 min.
Requirements:
- Normal detergent / coffee fur remover
- Tea towel
- Hygiene set (for quick cleaning)
Cleaning brewer ¿ lter (¿ g. 41):
1. Turn the green mounting ring right and remove the
mixer case from the mixer by pulling it towards you.
Pull the extraction ¿ lter(s) from the machine.
2. Remove the top plate and the blue ¿ lter.
3. Clean* and dry the ¿ lter or use a clean ¿ lter from the
hygiene set.
4. Place the ¿ lter back in its position and reapply the
top plate.
5. Put the extraction ¿ lter(s) back in place. Place the
mixer case back on to the mixer. Turn the green
mounting ring to the left. Secure the tubes between
the mixer(s) and the outlet.
Turn the device back on and try a few test drinks to
check correct operation.
* Use a normal detergent.
In case of very persistent stains use our coffee
fur remover!
Fig. 40
08/2011 Rev. 7.4
08/2011 Rev. 7.4
M o d e l 2 0 0 9
1
2
3
Clean
& dry !
4
5
81
Fig. 41
