Instruction Manual

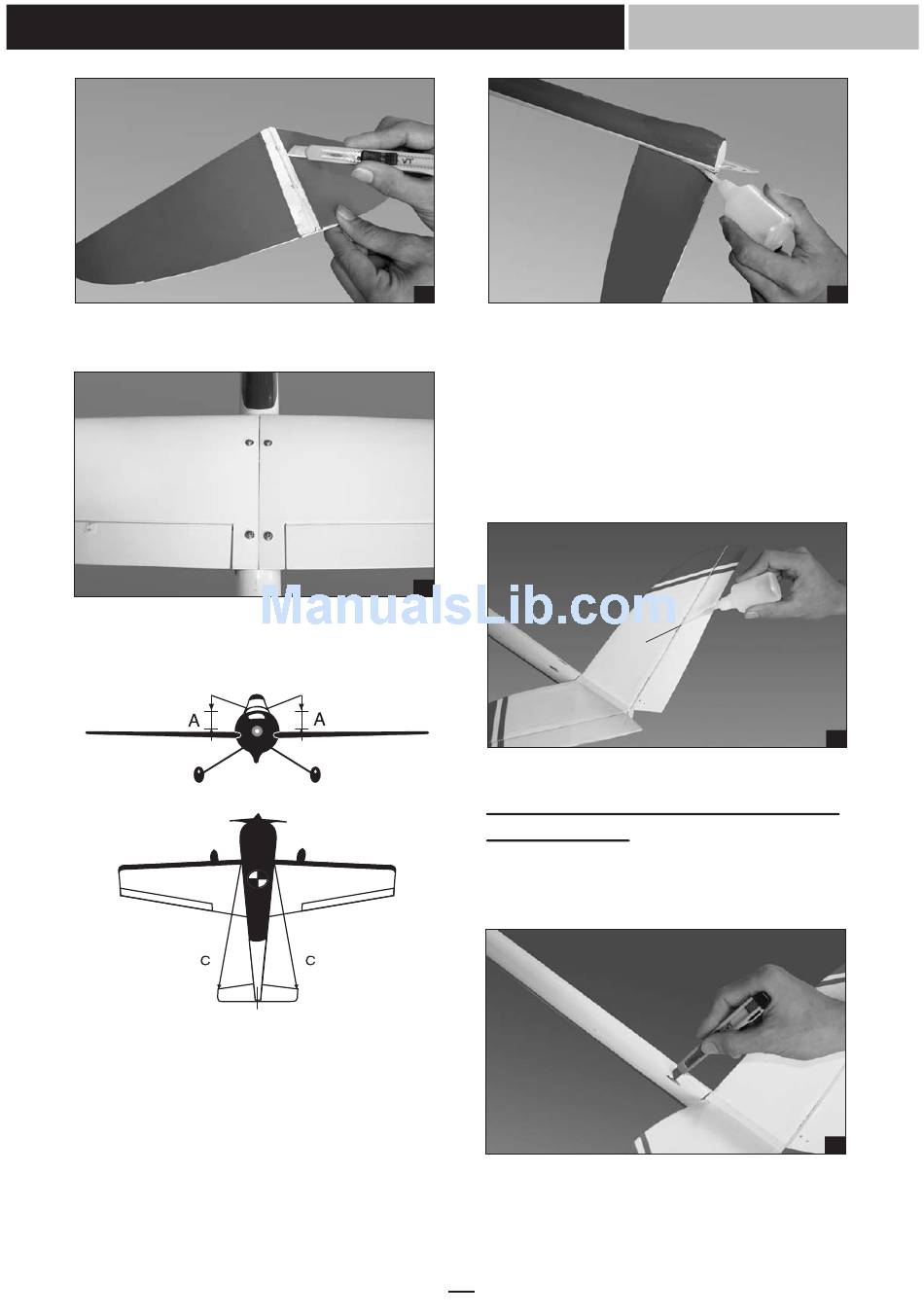

5. Attach the wing to the fuselage as picture.
6. Test the position of the elevator and adjust it as
shown.
7. When you are sure that everything is aligned
correctly, mix up a generous amount of 30
minute epoxy. Apply a thin layer to the bottom
of the stabilizer mounting area and to the stabilizer
mounting platform sides in the fuselage. Insert
the stabilizer in place and re-align. Double
check all of your measurements one more time
before the epoxy cures. Remove any excess
epoxy using a paper towel and rubbing alcohol
and hold the stabilizer in place with T-pins or
masking tape.
20
8. After the epoxy has fully cured, remove the
masking tape or T-pins used to hold the
stabilizer in place and carefully inspect the glue
joints. Use more epoxy to fill in any gaps that
were not filled previously and clean up the
excess using a paper towel and rubbing
alcohol.
9. Repeat step #1 - #5 from install the aileron to
install the elevator.
21

INSTALLING THE ELEVATOR, PUSHROD

and linkages
1. Carefully cut away the covering material from
the slot.
5
DIAMOND
C.A glue
22
23
24
