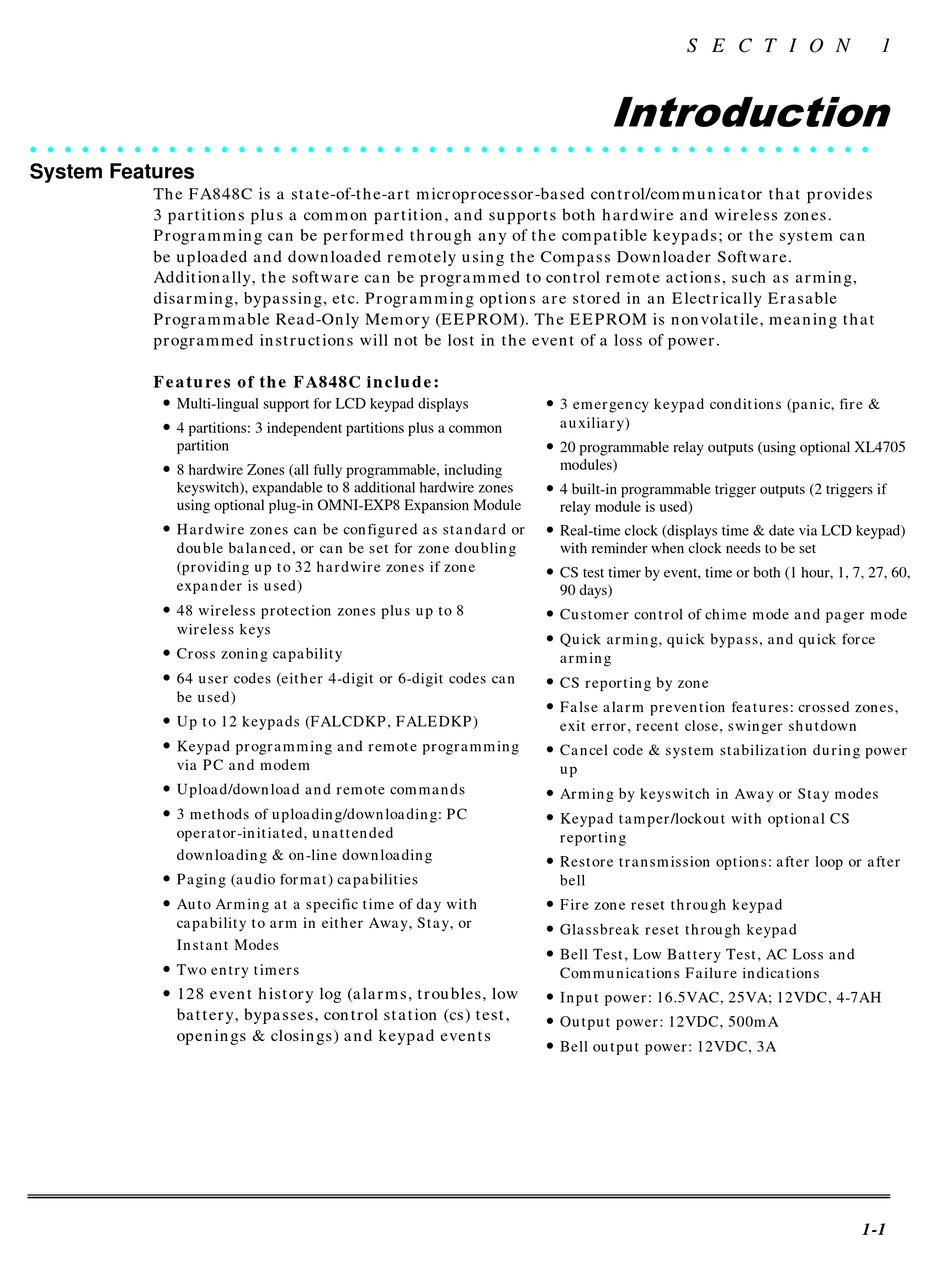

System Features

The FA848C is a state-of-the-art microprocessor-based control/communicator that provides
3 partitions plus a common partition, and supports both hardwire and wireless zones.
Programming can be performed through any of the compatible keypads; or the system can
be uploaded and downloaded remotely using the Compass Downloader Software.
Additionally, the software can be programmed to control remote actions, such as arming,
disarming, bypassing, etc. Programming options are stored in an Electrically Erasable
Programmable Read-Only Memory (EEPROM). The EEPROM is nonvolatile, meaning that
programmed instructions will not be lost in the event of a loss of power.
Features of the FA848C include:
•
Multi-lingual support for LCD keypad displays
•
4 partitions: 3 independent partitions plus a common
partition
•
8 hardwire Zones (all fully programmable, including
keyswitch), expandable to 8 additional hardwire zones
using optional plug-in OMNI-EXP8 Expansion Module
•
Hardwire zones can be configured as standard or
double balanced, or can be set for zone doubling
(providing up to 32 hardwire zones if zone
expander is used)
•
48 wireless protection zones plus up to 8
wireless keys
•
Cross zoning capability
•
64 user codes (either 4-digit or 6-digit codes can
be used)
•
Up to 12 keypads (FALCDKP, FALEDKP)
•
Keypad programming and remote programming
via PC and modem
•
Upload/download and remote commands
•
3 methods of uploading/downloading: PC
operator-initiated, unattended
downloading & on-line downloading
•
Paging (audio format) capabilities
•
Auto Arming at a specific time of day with
capability to arm in either Away, Stay, or
Instant Modes
•
Two entry timers
• 128 event history log (alarms, troubles, low
battery, bypasses, control station (cs) test,
openings & closings) and keypad events
S E C T I O N
,QWURGXFWLRQ
•
3 emergency keypad conditions (panic, fire &
auxiliary)
•
20 programmable relay outputs (using optional XL4705
modules)
•
4 built-in programmable trigger outputs (2 triggers if
relay module is used)
•
Real-time clock (displays time & date via LCD keypad)
with reminder when clock needs to be set
•
CS test timer by event, time or both (1 hour, 1, 7, 27, 60,
90 days)
•
Customer control of chime mode and pager mode
•
Quick arming, quick bypass, and quick force
arming
•
CS reporting by zone
•
False alarm prevention features: crossed zones,
exit error, recent close, swinger shutdown
•
Cancel code & system stabilization during power
up
•
Arming by keyswitch in Away or Stay modes
•
Keypad tamper/lockout with optional CS
reporting
•
Restore transmission options: after loop or after
bell
•
Fire zone reset through keypad
•
Glassbreak reset through keypad
•
Bell Test, Low Battery Test, AC Loss and
Communications Failure indications
•
Input power: 16.5VAC, 25VA; 12VDC, 4-7AH
•
Output power: 12VDC, 500mA
•
Bell output power: 12VDC, 3A
