First Alert FA148C User Manual

First Alert FA148C User Manual

First alert security systems user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

K4855V1 3/00
R
ARMED
READY
R
A
1
2
3
OFF
AWAY
STAY
B
4
MAX
5
TEST
6
BYPASS
C
7
INSTANT
8
CODE
9
CHIME
D
*
0
#
READY
FA560
Previous Menu
I I I I I I
R
HEAT
COOL
BYPASS
ACTIVE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FA148C and is the answer not in the manual?

Questions and answers

Related Manuals for First Alert FA148C

Summary of Contents for First Alert FA148C

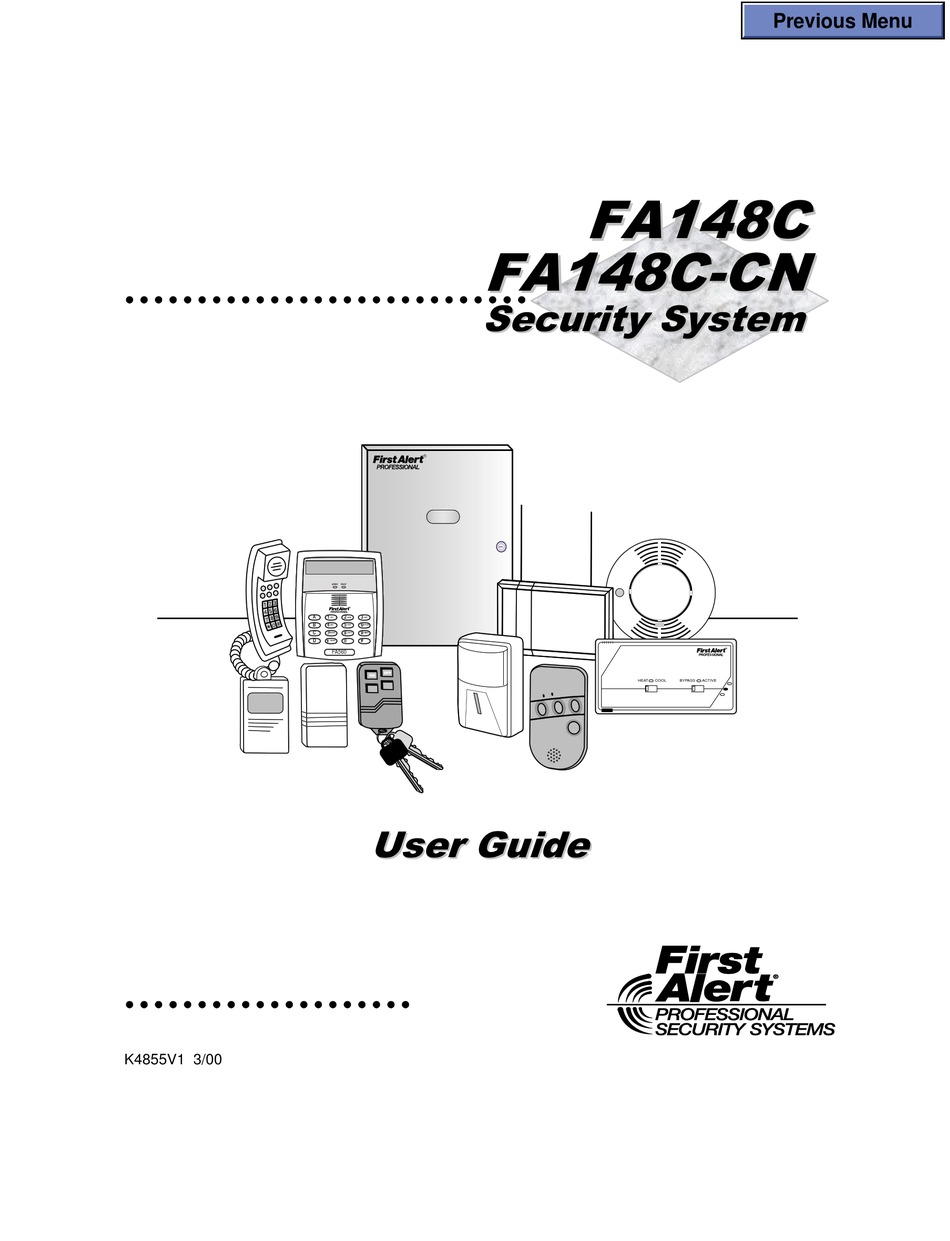

  • Page 1 Previous Menu ARMED READY AWAY STAY TEST BYPASS INSTANT CODE CHIME READY I I I I I I FA560 HEAT COOL BYPASS ACTIVE K4855V1 3/00...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS System Overview..........4 Bypassing Protection Zones ......23 General Information.......... 4 Using the Key ........23 Zones..............4 Quick Bypass..........24 Burglary Protection ........... 4 Displaying Bypassed Zones ......24 Security Codes ..........5 Chime Mode ........... 25 Fire Protection ..........

  • Page 4: System Overview

    Burglary Protection Your FA148C provides five modes of burglary protection: STAY, NIGHT-STAY, AWAY, INSTANT, and MAXIMUM, and allows you to bypass selected zones while leaving the rest of the system armed. You must turn on (arm) the burglary protection portion of your system before it will sense burglary alarms.

  • Page 5: Security Codes

    System Overview (cont'd) The following table lists the five different arming modes and the features of each. FEATURES OF EACH ARMING MODE ARMING Exit Entry Perimeter Interior MODE Delay Delay Armed Armed AWAY NIGHT-STAY Yes* STAY INSTANT MAXIMUM * for selected interior zones (ask your installer about the included zones) Security Codes At the time of installation, you were assigned a personal four-digit security code, known only to you.

  • Page 6: Phone Access & Voice Response Capability

    System Overview (cont'd) Cross Zoning Cross zoning is used to prevent false alarms. Up to 10 zones can be linked together in your security system (programmed by the installer). If any of the 10 linked zones faults in the armed state, the system will wait to see if a second zone faults within a programmed period of time.

  • Page 7: Entry/Exit Delays

    Entry/Exit delays General Information The FA148C has preset time delays, known as exit delay and entry delay. Whenever you arm your system, exit delay gives you time to leave through the designated exit door without setting off an alarm. Exit delay begins immediately after entering any arming command, and applies to all modes of arming protection.

  • Page 8: Exit Alarms

    Entry/Exit delay (cont'd) Exit Alarms To minimize false alarms sent to the alarm monitoring company, your system may have been programmed for this feature. Ask your installer if Exit Alarm is active for your system. Exit Alarm Active Whenever you arm the system, the exit delay begins. If an entry/exit door or interior zone is faulted when the exit delay ends (e.g., exit door left open), the system sounds an alarm and starts the entry delay timer.

  • Page 9: About The Keypads

    About the Keypads IMPORTANT If the keypad beeps rapidly when you enter the premises, it means that an alarm has occurred during your absence and an intruder may still be on the premises. LEAVE IMMEDIATELY AND CONTACT THE POLICE from a nearby safe location.

  • Page 10: Fixed-Word Keypad Displays

    About the Keypads (cont'd) AWAY NO AC STAY CHIME INSTANT ALARM BYPASS CANCELED CHECK FIRE NIGHT NOT READY ARMED READY AWAY STAY TEST BYPASS INSTANT CODE CHIME READY FA215 FA215KP FIXED-WORD KEYPAD AWAY: All burglary zones, interior AWAY NO AC and perimeter, are armed.
  • Page 11 About the Keypads (cont'd) AC power has been cut off. System is operating on backup NO AC: battery power. AC power is present. CHIME: The Chime feature is activated. There is a low-battery condition in a wireless sensor (if BAT: zone number is displayed) or a low system battery (if no zone number is displayed).

  • Page 12: Functions Of The Keypads

    Functions of the Keypads ARMED READY AWAY STAY TEST BYPASS CODE CHIME INSTANT READY FA560 FA560KP 2-LINE ALPHA KEYPAD Fixed-word keypads are functionally similar, except for screen displays. 1. DISPLAY WINDOW: Fixed-word KEY: Completely arms AWAY and 2-line Alpha Displays use both perimeter interior...

  • Page 13: Functions Of The Keypads

    Functions of the Keypads (cont'd) STAY KEY: Arms the perimeter BYPASS KEY: Removes burglary sensors, guarding individual protection zones from protected doors, windows, and other being monitored by the system. perimeter protection points, and Displays currently bypassed sounds an alarm if one is opened. protection zones.
  • Page 14 Functions of the Keypads (cont'd) 16. INTERNAL SOUNDER: Source of KEY: Permits arming of the audible internal warning system without entering a security confirmation sounds, as well as code (“Quick Arm,” if programmed). alarms (see Summary of Audible Also used to view the second line of Notification section).

  • Page 15: Checking For Open Zones

    Checking for Open Zones Using the Before arming your system, all protected doors, windows, and other protection zones must be closed or bypassed (see Bypassing Protection Zones section). Otherwise the keypad will display a NOT READY message. Pressing the [ ] key will display all zones that are faulted, making it easier for you to secure any open zones.

  • Page 16: Arming Perimeter Only (W/ Entry Delay On)

    Arming Perimeter Only (with Entry Delay ON) Using the STAY Use this key when you are staying home, but expect someone to use the entrance door later. When armed in STAY mode, the system will sound an alarm if a protected door or window is opened, but you may otherwise move freely throughout the premises.

  • Page 17: Arming Perimeter And Selected Interior Zones (W/ Entry Delay On)

    Arming Perimeter and Selected Interior Zones (with Entry Delay ON) Using the Key to Arm Night-Stay STAY Use this key when you are staying home, but would like increased security by arming preselected interior zones. When armed in NIGHT-STAY mode, the system will sound an alarm if a protected window or door is opened, or if one of the selected interior zones is faulted.

  • Page 18: Arming Perimeter Only (W/ Entry Delay Off)

    Arming Perimeter Only (with Entry Delay OFF) Using the INSTANT Use this key when you are staying home and do not expect anyone to use the entrance door. When armed in INSTANT mode, the system will sound an alarm if a protected door or window is opened, but you may otherwise move freely throughout the premises.

  • Page 19: Arming All Protection (W/ Entry Delay On)

    Arming All Protection (with Entry Delay ON) Using the AWAY Use this key when no one will be staying on the premises. When armed in AWAY mode, the system will sound an alarm if a protected door or window is opened, or if any movement is detected inside the premises. You may leave through the entrance door during the exit delay period without causing an alarm.

  • Page 20: Arming All Protection (W/ Entry Delay Off)

    Arming All Protection (With Entry Delay OFF) Using the MAXIMUM Use this key when the premises will be vacant for an extended period of time, such as during a vacation, or when no one will be moving through protected interior areas. When armed in MAXIMUM mode, the system will sound an alarm if a protected door or window is opened, or if any movement is detected inside the premises.

  • Page 21: Disarming And Silencing Alarms

    Disarming and Silencing Alarms Using the 1 Key Use the OFF key to disarm the system and to silence alarm and trouble sounds. See Summary of Audible Notification section for information to help you distinguish between fire and burglary alarm sounds.

  • Page 22: Memory Of Alarm

    Disarming and Silencing Alarms (cont'd) Memory of Alarm If an alarm occurs, the keypad displays the zone number(s) that caused the alarm and the type of alarm. These messages remain displayed until cleared by a user. To clear the display: Note the zone number displayed and enter an OFF sequence.

  • Page 23: Bypassing Protection Zones

    Bypassing Protection Zones Using the BYPASS This key is used when you want to arm your system with one or more zones intentionally unprotected. Bypassed zones are unprotected and will not cause an alarm when violated while your system is armed. All bypasses are removed when an OFF sequence (security code plus OFF) is performed.

  • Page 24: Quick Bypass

    Bypassing Protection Zones (cont'd) Quick Bypass Your system may allow you to easily bypass all open (faulted) zones without having to enter zone numbers individually. Ask your installer if this feature is active. Enter 4-digit security code, then press the BYPASS key. (Security Code) BYPASS Example: Press 7 2 9 6 then...

  • Page 25: Chime Mode

    Chime Mode Using the 9 Key CHIME Your system can be set to alert you to the opening of a door or window† while it is disarmed by using CHIME mode. When activated, three beeps sound at the keypad whenever a protected perimeter door or window is opened.

  • Page 26: Panic Keys

    Panic Keys (For Manually Activating Silent and/or Audible Alarms) Using Panic Keys Your installer may have programmed your system to use special keys to manually activate panic functions. The functions that might be programmed are listed below. See your installer for the function(s) that are programmed for your system.

  • Page 27: Using Device Commands

    Using Device Commands General Information Your system may be set up so that certain lights or other devices can be turned on or off by using the device command from the keypad. Ask your installer if this has been done in your system. programmed your system,...

  • Page 28: Paging Feature

    Paging Feature General Information If the Paging feature has been programmed for your system, your pager will respond to certain conditions as they occur in your system. This message appears in a 7-digit format explained below. You can also send up to 16 additional digits that may consist of PIN numbers, messages, reminders, etc.

  • Page 29: Security Codes

    Security Codes General Information As an additional safety feature, other users who do not need to know your code can be assigned different security codes. These secondary users are identified by "user numbers," which you select when you assign a user's security code. You can assign up to 14 additional user codes (user numbers 03-16), including the Temporary and Duress codes.

  • Page 30: Quick Arming

    Security Codes (cont’d) Quick Arming Note that if Quick Arming was programmed by the installer, you can press the key in place of the security code when arming the system. You must always use the security code to disarm the system, however.

  • Page 31: To Delete A User

    Security Codes (cont'd) To Delete a User Enter 4-digit Master code, then press the 8 key. (Master Code) Example: Press 2 0 5 9 then 8 Enter user number. Enter the 2-digit user number (03-16) for (User Number) the user whose code you are deleting. 3.

  • Page 32: Testing The System

    Testing the System (To be conducted weekly) Using the TEST The TEST key puts your system into a TEST mode, which allows each protection point to be checked for proper operation. The keypad sounds a single beep every 30 seconds as a reminder that the system is in this TEST mode.
  • Page 33 Testing the System (cont'd) Walk in front of any interior motion detectors (if used) and listen for three beeps. The keypad should display the identification of the detector when the detector is activated. The display will clear when no motion is detected. Note that if you are using wireless motion detectors, there 3-minute...

  • Page 34: Trouble Conditions

    Trouble Conditions Typical Check Displays The word CHECK on the keypad's display, accompanied by a rapid beeping at the keypad, indicates a trouble condition in the system. The displays in parentheses in the left column below may appear on non-alpha keypads when the associated trouble condition is present. To silence the beeping sound for “check”...
  • Page 35 Trouble Conditions (cont'd Telco Fault If the telephone line monitor feature has been (or CHECK and programmed for your system, this display zone 94) indicates that the telephone line has been disconnected or cut. In some systems, this display is accompanied by a trouble sound from keypad external sounder.
  • Page 36 Trouble Conditions (cont’d) POWER indicator The system is operating on battery power only. (if present) is off. If only some lights are out on the premises, AC LOSS is check circuit breakers and fuses and reset or displayed. replace as necessary. CALL FOR SERVICE IMMEDIATELY if AC power cannot be restored to the system.

  • Page 37: Fire Alarm System

    Fire Alarm System (If Installed) General Information Your fire alarm system (if installed) is active 24 hours a day, providing continuous protection. In the event of an emergency, the installed smoke and heat detectors will automatically activate your security system, triggering a loud, interrupted sound from the keypad.
  • Page 38 Fire Alarm System (cont’d) 2. If the keypad indicates a trouble condition after the second OFF sequence, check smoke detectors to see if they are responding to smoke or heat-producing objects in their vicinity. Should this be the case, eliminate the source of heat or smoke. 3.

  • Page 39: Recommendations For Proper Protection

    Recommendations for Proper Protection THE FOLLOWING RECOMMENDATIONS FOR THE LOCATION OF FIRE AND BURGLARY DETECTION DEVICES HELP PROVIDE PROPER COVERAGE FOR THE PROTECTED PREMISES. Recommendations for Smoke and Heat Detectors With regard to the number and placement of smoke/heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association's (NFPA) Standard #72, noted below.
  • Page 40 Recommendations for Proper Protection (cont’d) KITCHEN KITCHEN DINING BDRM BEDROOM BEDROOM TV ROOM DINING BDRM LIVING ROOM BEDROOM BEDROOM LIVING ROOM Smoke Detectors for Minimum Protection Smoke Detectors for Additional Protection Heat-Activated Detectors BEDROOM BEDROOM BEDROOM KTCHN GARAGE CLOSED LVNG RM DOOR BASEMENT In addition, we recommend the following:...

  • Page 41: Recommendations For Proper Intrusion Protection

    Recommendations for Proper Protection (cont'd) Recommendations for Proper Intrusion Protection For proper intrusion coverage, sensors should be located at every possible point of entry to a home or commercial premises. This includes skylights and upper windows in a multi-level building. In addition, we recommend that radio backup be used in a security system so that alarm signals can still be sent to the alarm monitoring station in the event that the telephone lines are out of order (alarm...

  • Page 42: Emergency Evacuation

    Emergency Evacuation Establish and regularly practice a plan of escape in the event of fire. The following steps are recommended by the National Fire Protection Association: 1. Position your detector or your interior and/or exterior sounders so that they can be heard by all occupants. 2.

  • Page 43: Maintaining Your System

    Maintaining Your System Taking Care of Your System The components of your security system are designed to be as maintenance-free as possible. However, to make sure that your system is in reliable working condition: 1. Test your system weekly. 2. Test your system after any alarm occurs (see Testing the System section).

  • Page 44: Routine Care

    Maintaining Your System (cont’d) Important: Use only batteries recommended by your installer as replacement. Silencing Low Battery Warning Tones at the Keypad You can silence the keypad’s warning tones by pressing the key, but the keypad's LOW BATTERY message display will remain on as a reminder that you have a low-battery condition in one or more of your sensors.

  • Page 45: Quick Guide To System Functions

    Quick Guide to System Functions FUNCTION PROCEDURE COMMENTS Check Zones Do this to view faulted zones when system is Press [ ] not ready. Arm System Enter code or press # Do this to arm the system in the mode selected.

  • Page 46: Summary Of Audible Notification

    Summary of Audible Notification (Alpha Display Keypads) SOUND CAUSE DISPLAY LOUD, INTERRUPTED* FIRE ALARM FIRE is displayed; descriptor of zone in alarm is displayed. Keypad & External LOUD, CONTINUOUS BURGLARY/AUDIBLE ALARM is displayed; descriptor of zone in alarm is also displayed. EMERGENCY ALARM Keypad &...

  • Page 47: Glossary

    Glossary The following terms are used throughout the manual. "Armed" simply means that the burglary portion of your system ARM/DISARM: is turned ON and is in a state of readiness. "Disarmed" means that the burglary system is turned OFF, and must be re-armed to become operational.
  • Page 48 UL NOTICE: This is a "GRADE A" system. FEDERAL COMMUNICATIONS COMMISSION (FCC) Part 15 STATEMENT This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your information: This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception.
  • Page 49 FEDERAL COMMUNICATIONS COMMISSION (FCC) Part 68 NOTICE This equipment complies with Part 68 of the FCC rules. On the front cover of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.
  • Page 50 WARNING! THE LIMITATIONS OF THIS ALARM SYSTEM While this system is an advanced design security system, it does not offer guaranteed protection against burglary or fire or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of reasons. For example: •...

  • Page 51: Servicing Information

    SERVICING INFORMATION Your local First Alert Professional alarm dealer is the person best qualified to service your alarm system. Arranging some kind of regular service program with him is advisable.
  • Page 52 CANADIAN DEPARTMENT OF COMMUNICATIONS (DOC) STATEMENT NOTICE AVIS The Canadian Department of Communications label L'étiquette du ministère des Communications du Canada identifies certified equipment. This certification means that identifie le matériel homologué. Cette étiquette certifie que the equipment meets certain telecommunications network le matériel est conforme à...
  • Page 53 OWNER’S INSURANCE PREMIUM CREDIT REQUEST This form should be completed and forwarded to your homeowner’s insurance carrier for possible premium credit. A. GENERAL INFORMATION: Insured’s Name and Address: Insurance Company: Policy No.: FA148C Other ______________________________ Type of Alarm: Burglary Fire Both Installed by:...
  • Page 54 OWNER’S INSURANCE PREMIUM CREDIT REQUEST E. SMOKE DETECTOR LOCATIONS Furnace Room Kitchen Bedrooms Attic Basement Living Room Dining Room Hall F. BURGLARY DETECTING DEVICE LOCATIONS: Front Door Basement Door Rear Door All Exterior Doors Floor Windows All windows nterior locations All Accessible Openings, Including Skylights, Air Conditioners and Vents G.
  • Page 55 Index Low Battery........11, 35, 43 AC Loss ............. 36 Add a User..........30 Maximum ..........4, 20 Alarm ............11 Maximum Mode .........20 Alpha Keypad ..........9 Memory of Alarm ......6, 22, 46 Audible Emergency ....... 11, 26, 46 Modem Comm ...........35 Away........

  • Page 56: One Year Limited Warranty

    Pittway Corporation, and its divisions, subsidiaries and affiliates ("Seller"), 165 Eileen Way, Syosset, New York 11791, warrants its First Alert security equipment (the "product") to be free from defects in materials and workmanship for one year from date of original purchase, under normal use and service. Seller's obligation is limited to repairing or replacing, at its option, free of charge for parts, labor, or transportation, any product proven to be defective in materials or workmanship under normal use and service.
