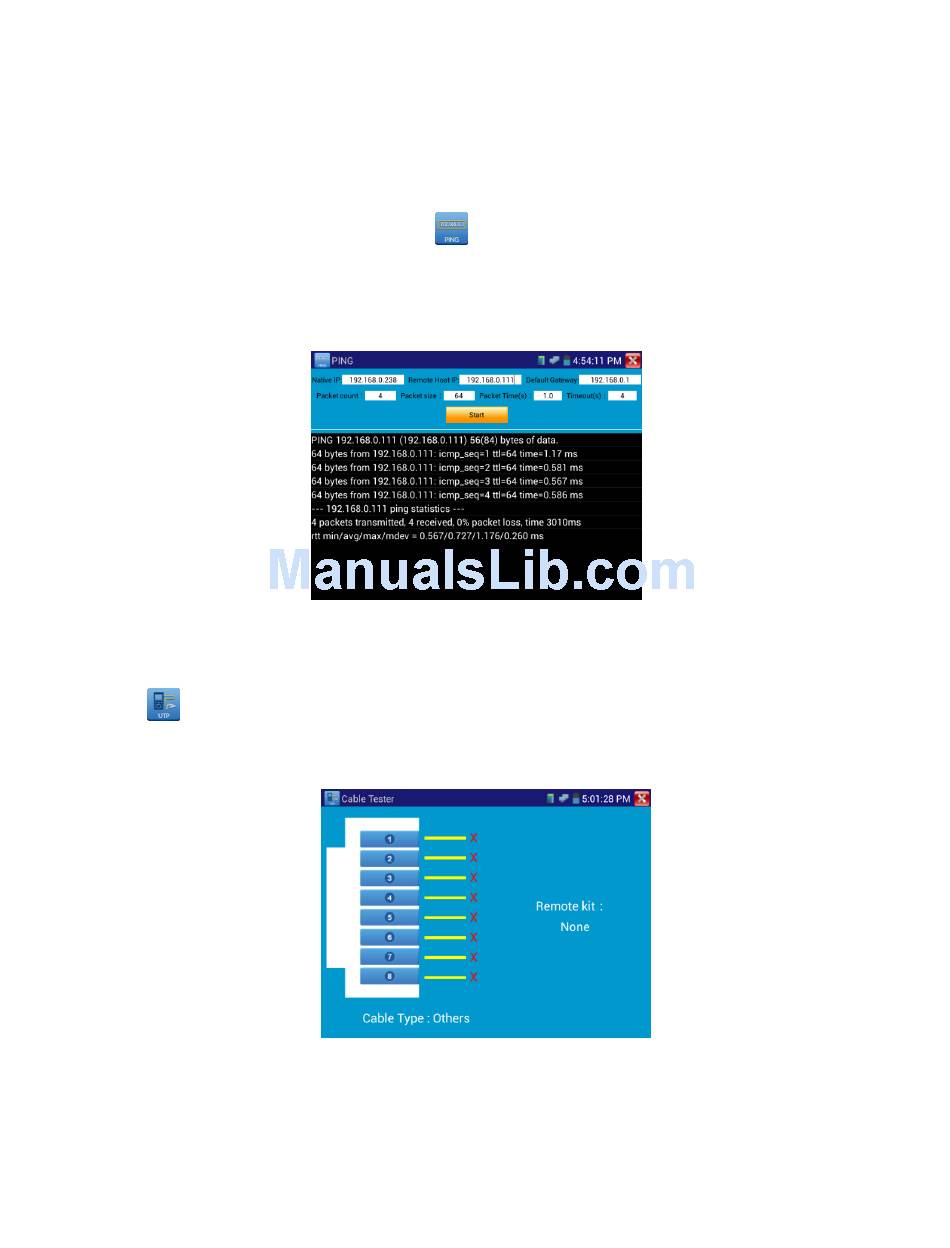

3.3.6 PING Test

PING is the most conventional network debugging tool; it is used for testing if the connected IP camera or other network
equipment's Ethernet port is working normally and the IP address is correct.
Connect a network cable to the LAN port and click the icon to open the PING tool. You can set your LOCAL (native)
IP address, Remote IP address (e.g. IP camera), Packet count, Packet Size, Packet time and Timeout. Press "Start" to start
pinging. If the IP camera or network device is not configured properly or not plugged in, it will say "Destination host
unreachable," or have 100% packet loss. If the tester connects to the device, the send and receive packets will have a 0%
packet loss.

3.3.7 Cable Test

Click the icon to open the cable tester app. Connect a Network cable from the IP BUDDY+ unit's UTP/SCAN port to
the included blue cable identifier and network cable tester combo device. The unit will test for connection status, cable
type and the status of each wire's conductivity will be displayed.
Page.23.
