Security Tronix ST-IP-TEST User Manual page 19

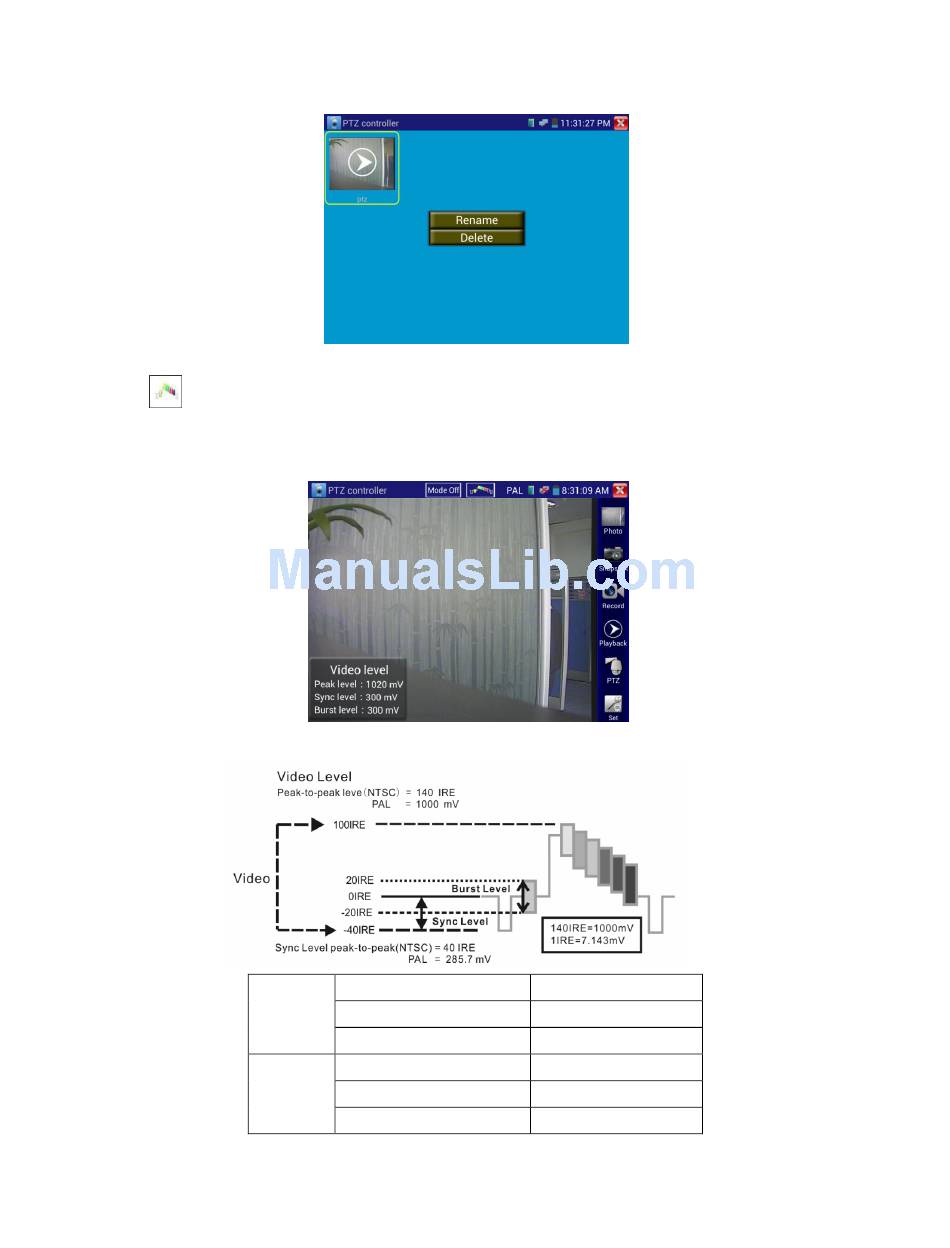

To rename or delete a video, click and hold on the file until this screen appears:
(8) Video level meter
Click the icon to open the Video Level meter. The IP BUDDY+ meter can perform both NTSC and PAL video
amplitude signal measurements for PEAK to PEAK and SYNC levels. When an analog signal is fed into the meter, the tester
displays the measurements on the bottom left corner of the screen.
While in PAL format, the unit will be mV, While in NTSC format, it will be IRE.
NTSC
PAL
Video signal level
Chroma level( COLOR BURST)
SYNC signal level
Video signal level
Chroma level( COLOR BURST)
SYNC signal level
Page.15.
140±15IRE
40±5IRE
40±5IRE
1000±200mV
300±35mV
300±35mV
