2.5 Operational buttons and description of connections.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

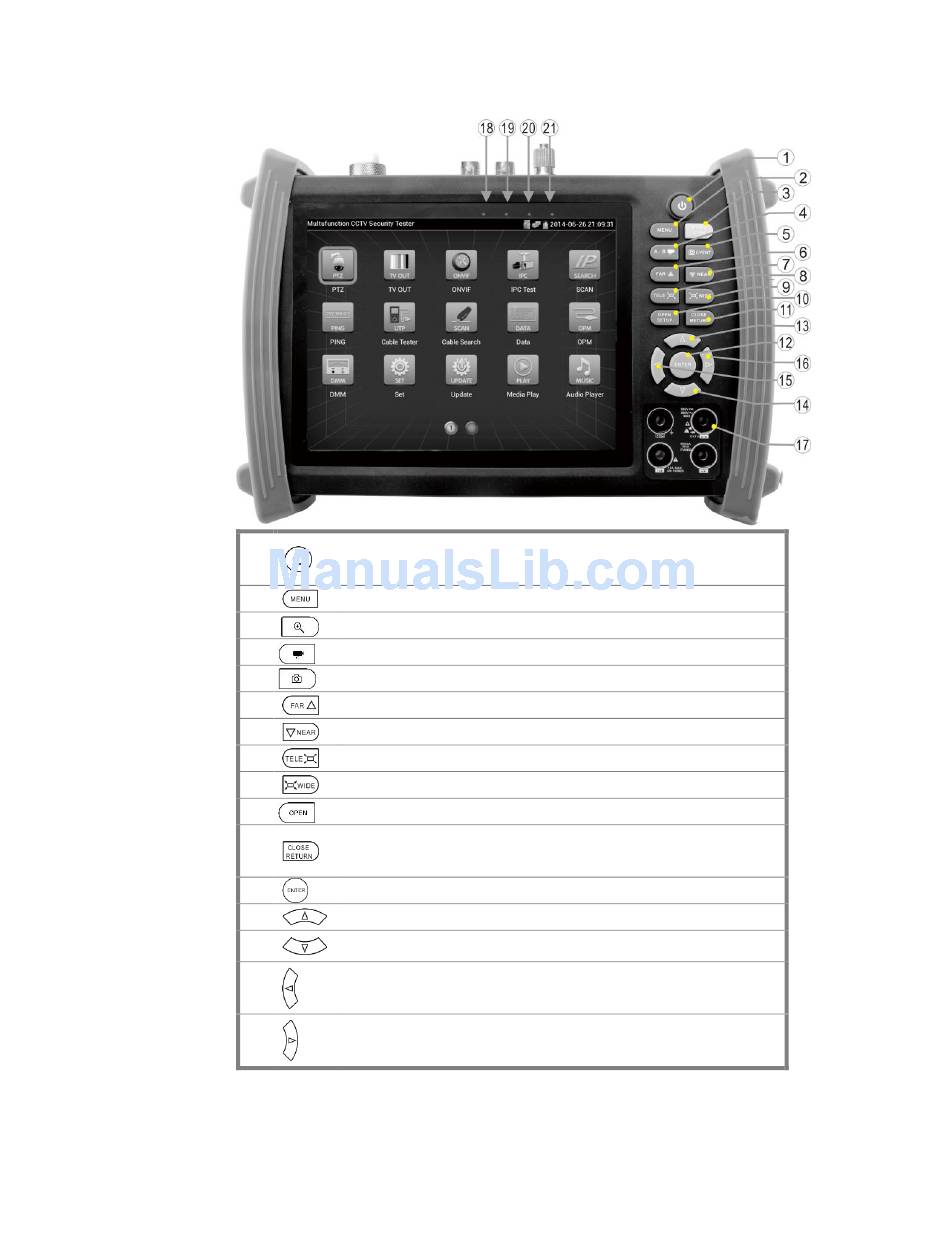

Power button: Hold more than 2 seconds, turns on or off the
device. Quickly press for sleep mode
Menu key
4X Zoom digital image display. (Optional) OTDR start or stop.
Video record
Snapshot
Far focus: Focus images at a distance
Near focus: Focus close range images
TELE: zoom in on the image
WIDE: zoom out to the image
Open or set parameter. Open the camera iris aperture
Close Return: Return or cancel menu parameters. Close the camera
iris aperture
Confirm setting key
Up arrow to scan through options. Tilt a PTZ camera upward
Down arrow to scan through options. Tilt a PTZ camera downward
Left arrow to scan through options. Pan a PTZ camera left
Right arrow to scan through options. Pan a PTZ camera right
