Note： If the IP camera requires PoE power, then connect the IP camera to the IP BUDDY+ meter's LAN port . The tester
will supply PoE Power for the IP camera. Click on the icon labeled POE to turn the PoE Power off or on.
Warning：PoE switch or PSE power sourcing equipment can only be connected to the meter's "PSE IN" port,
otherwise it will damage the tester.

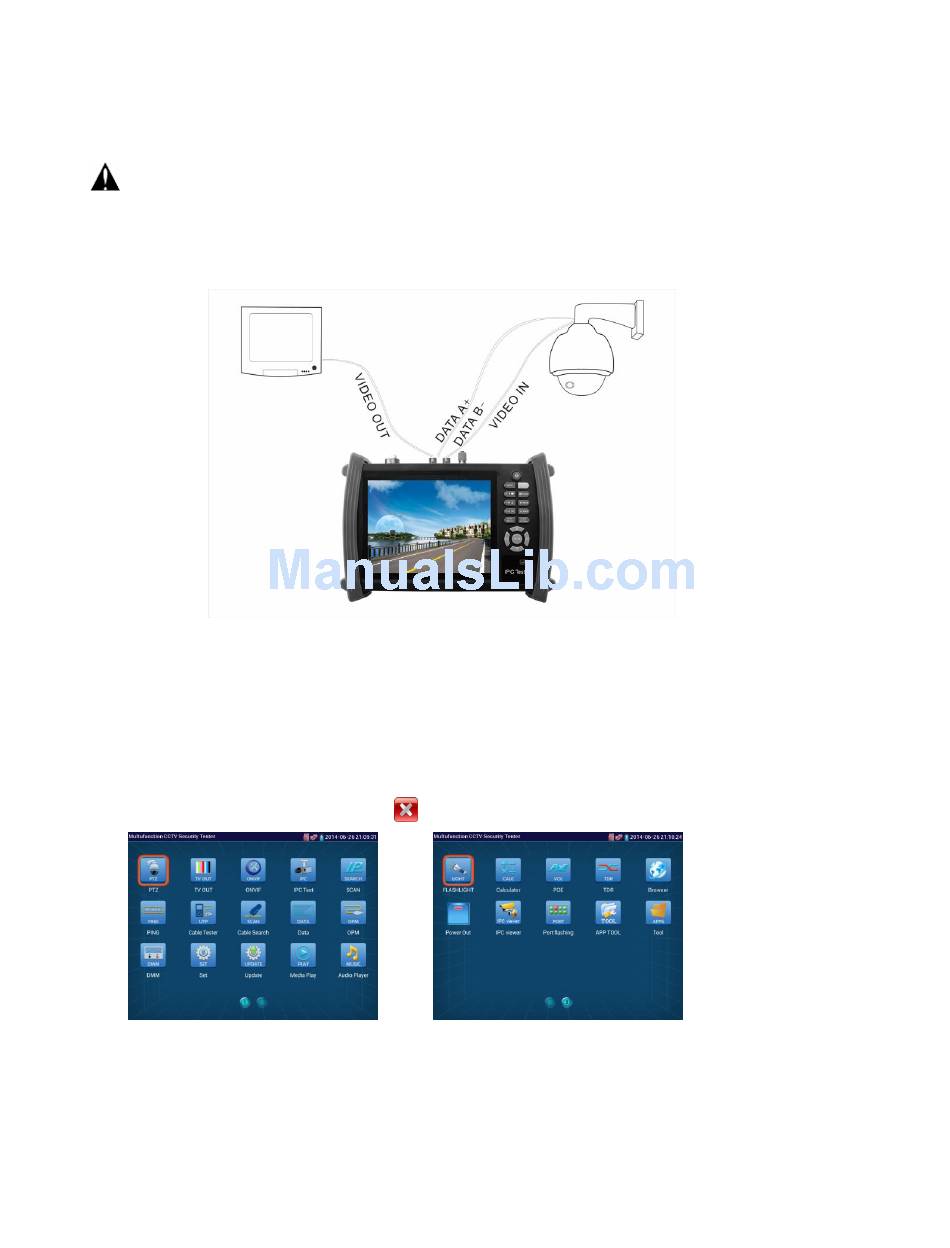

3.2.2 Analog camera test (Press the PTZ icon to activate analog video viewing and testing)
(1) Connect the camera's video output to the IP BUDDY+'s BNC VIDEO IN. The image will display on the tester after
pushing the PTZ icon.
(2) IP BUDDY+'s "VIDEO OUT" BNC connector can connect to the Video input of a monitor.
(3) Connect the camera or PTZ RS485 controller cable to the tester's RS485 interface, (Note positive and negative
connection of the cable must be connected with proper polarity to operate).

3.3 OSD menu

Select an icon to open the app. To exit, press the
To move an app icon to the "APPS" folder, press and hold until the "move to apps directory" appears on the screen then
press OK to move it or Cancel.
key.
Page.10.
