39 USB 5V 2A power output (used only for power, not data)
40 12VDC 2A charging input
41 12VDC 2A power output

3. Operation

3.1 Installing the Battery

The tester has a built-in lithium ion polymer rechargeable battery. Prior to the use of the unit, the battery cable
connection behind the battery door needs to be connected and the unit fully charged for no more than 8 hours
prior to use.
Pressing the key for two seconds will power on or off the tester.
Notice：Please use the original adapters and cables of the device!
When the battery icon is full or the charge indicator turns off automatically, the battery charging is complete and the
charger needs to be unplugged.
Notice: When the Charge Indicator
than one hour after this indicator turns off.
Notice: Hold the
Warning: RS485 and RS232 Instrument communication ports are not permitted to exceed circuit voltage over 6V,
otherwise it will damage the tester.

3.2 Instrument connection

3.2.1 IP camera connection

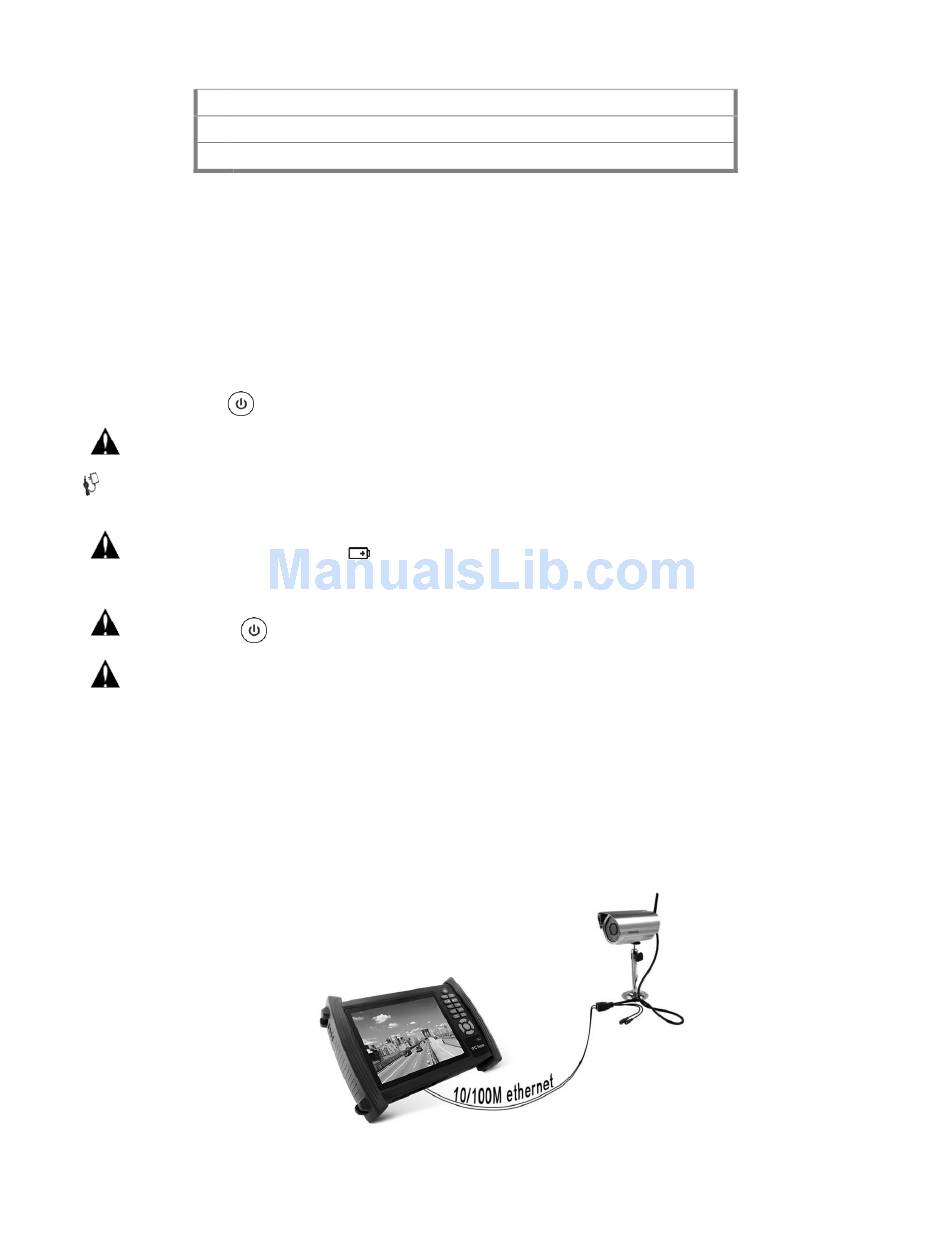

Power an IP camera with an independent power supply and then connect the IP camera to the IP BUDDY+'s LAN port. If
the link indicator of the tester's LAN port is green and the data indicator flickers, it means the IP camera and the IP
BUDDY+ are communicating. If the two indicators don't flicker, check if the IP camera is powered on or the network cable
is not functioning properly.
turns off, the battery is approximately 90% charged. Do not charge for more
key for several seconds until the unit restarts to restore the factory default settings.
